Seated Electric Sit Down Forklift Counterbalanced 1 Ton Mast Reach Type
Seated Electric Sit Down Forklift Counterbalanced 1 Ton Mast Reach Type
Seated Electric Sit Down Forklift Counterbalanced 1 Ton Mast Reach Type
Seated Electric Sit Down Forklift Counterbalanced 1 Ton Mast Reach Type
Specifications
Brand Name :
REACH
Model Number :
CQD10M
Certification :
CE, TUV
Place of Origin :
Zhejiang, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
25 - 30 days
Packaging Details :
Nude
Capacity :
1000kg
Max. lifting height :
3000/5000/6200mm
Free lift :
~ /1700/2100mm
Fork dimensions :
35/100/1070mm
Reach distance :
600mm
Turning radius :
1740mm
Battery :
48V400AH
Description

Seated electric reach truck narrow aisle truck with 1000kg capacity

Quick Details:

Product name: Narrow aisle truck mast reach type CQD10M

Capacity: 1000kg

Lifting height: 3000/5000/6200mm

Reach distance: 600mm

​Free lift: ~ /1700/2100mm

​Fork dimension: 35/100/1070mm

​Travel speed, load/unload: 7/7.2km/h​​

Aisle width for pallets 1000*1200 crossways: 2800mm

Aisle width for pallets 800*1200 lengthways: 2850mm

Turning radius: 1740mm

Battery: 48V400AH

Advantages:

  • ​​​The CQD series counterbalanced reach lift truck with innovative design and application-oriented functionality.

  • low noise, no pollution and small turning radius.

  • Widely used for high-shelves in narrow aisle warehouses, supermarkets, etc.

  • Mast reach distance 600mm.

  • Capacity 1000kg.

  • ​Lifting height 3000/5000/6200mm.

  • Truck with small width from 1020-1100mm, turning radius from 1700-1740mm and narrow cabin to ensure trucks can be used in drive-in racks.

  • Available in either DC or AC power options.

  • For daily maintenance of the battery, you don’t need to hand up the battery box. Simply using a battery handle controller, you can automatically remove and replace the battery box.

  • ​Option: LCD display and camera.

SPECIFICATIONS OF NARROW AISLE TRUCK
Model CQD10M
Power battery
Operate type seated
Capacity/rated load kg 1000
Lifting height mm 3000/5000/6200
Load center distance mm 500
Drive wheel mm 280*100
Fork wheel mm 285*80
Tilt of mast/fork carriage forward/backward Grad 2,3(mast)/ ~ / ~
Height, mast lowered mm 2086/2240/2640
Free lift mm ~ /1700/2100
Height, mast extended mm 3800/5800/7000
Height of overhead guard(cabin) mm 2114
Seat height/stand height mm 920
Height of crura mm 270
Overall length mm 2390
Length(barring fork) mm 1618
Overall width mm 1100
Fork dimensions mm 35/100/1070
Reach distance mm 600
Aisle width for pallets 1000*1200 crossways mm 2800
Aisle width for pallets 800*1200 lengthways mm 2850
Turning radius mm 1740
Travel speed, laden/unladen km/h 7/7.2
Lift speed, laden/unladen m/s 0.19/0.2
Lowering speed, laden/unladen m/s 0.5/0.4
Battery V/Ah 48/400
Service weight kg 2200/2600/2700

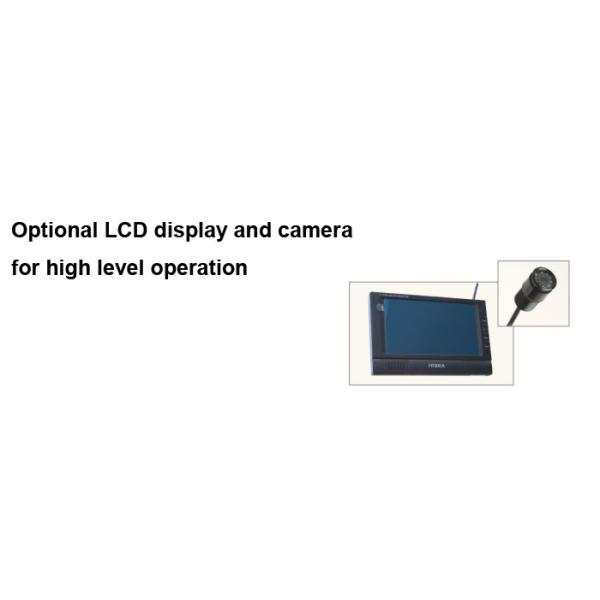

Opyional LCD display and camera for high level operation.
