3m - 5m Dual Front Driving Three Wheel Electric Forklift With 1600kg Capacity
3m - 5m Dual Front Driving Three Wheel Electric Forklift With 1600kg Capacity
3m - 5m Dual Front Driving Three Wheel Electric Forklift With 1600kg Capacity
3m - 5m Dual Front Driving Three Wheel Electric Forklift With 1600kg Capacity
Specifications
Brand Name :
REACH
Model Number :
CPD20S-16
Certification :
CE, TUV
Place of Origin :
Zhejiang, China
MOQ :
1
Price :
USD 13000~20000 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600 sets/ month
Delivery Time :
25 - 30 days
Packaging Details :
1set / pallet or 1set / wooden box
Capacity :
1600kg
lift height :
3000-6200
Fork dimensions :
35/100/950
Lift speed, laden/unladen :
290/450
Overall length :
1880mm
Length to face of forks :
1930mm
Description

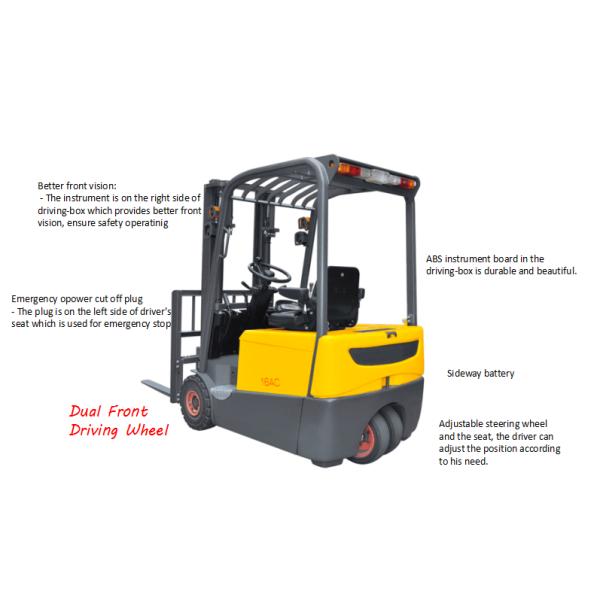

Dual front driving wheel electric forklift truck with 1600kg capacity and lift height from 3m to 5m

Specification

Model CPD20SA-16
Drive Dual Front Drive Wheel
Operation type seated
Load capacity/rated load kg 1600
Load center distance mm 500
Lift height mm 3000-6200
Height, mast extended mm 4050-7250
Overall length mm 2880
Length to face of forks mm 1930
Overall width mm 1070
Fork dimensions mm 35/100/950
Turning radius mm 1552
Travel speed, laden/unladen km/h 14/14
Lift speed, laden/unladen mm/s 290/450
Max. gradeability, laden/unladen % 15/20
Battery V/Ah 48/420(490)

Advantage

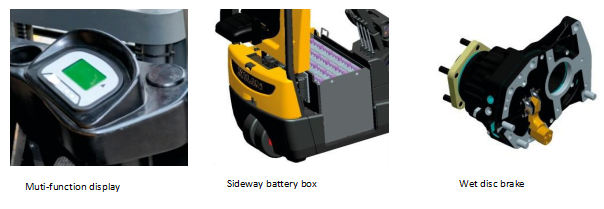

- Germany imported driving axle.
- The United States imported AC control system CURTIS with sensitive reaction.
- Imported multifunctional liquid crystal instrument has intelligent display for fault code, battery status, forklift running information.
- AC driving motor: compact construe, high performance, regenerative brakin.
- Top-ranking running speed, loading speed and grade ability.
Running speed: unload 15km/h load 14km/h
Lifting speed: unload 450mm/s load 290mm/s
Grade ability: unload 20% load 15%
- Three running modes to choose according to different needs: low speed, moderate speed and high speed.
- Wet disk can make the forklift break stably, ensures high durability and safety.
- Lateral turning radius is only 1552mm and minimum right angle stacking aisle is ony 3220mm
