Specifications
Brand Name :
Qifei
Model Number :
Double Deep Racking
Place of Origin :
China
Certification :
ISO9001；CE；SGS
MOQ :
10
Price :
50
Packaging Details :
Standard Export
Delivery Time :
20 days after deposit
Payment Terms :
30% deposit, 70% before delivery
Supply Ability :
8000ton/year
Purface Treatment :
Powder Coating
Hs Code :
73089000
Guarantee :
3 Years
Port :
NANJING/SHANGHAI PORT
Colors :
Customized
Usage :
Warehouse Storage
Weight Capacity :
1000-4000kg/ Layer, 6000-21000kg/ Bay
Description

Custom Colors 2 Deep Pallet Racking System Powder Coated 1000-4000kg/ Layer

Product Description:

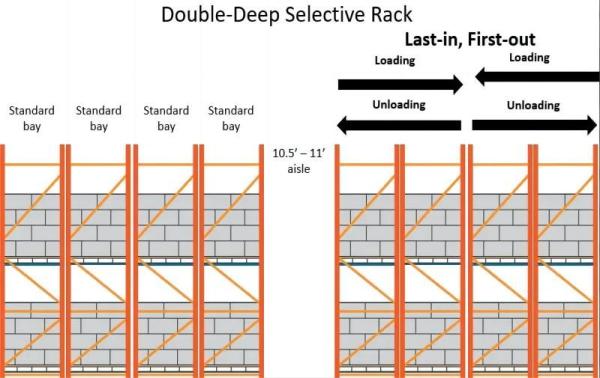

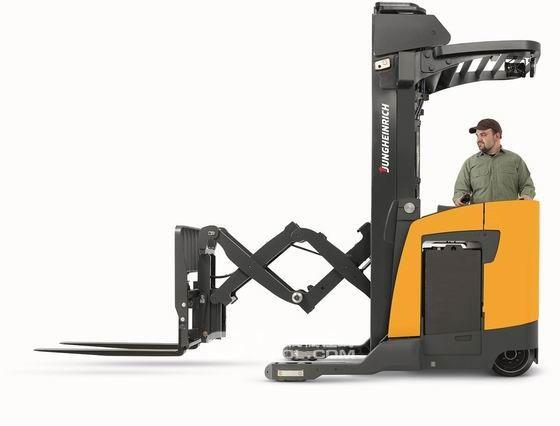

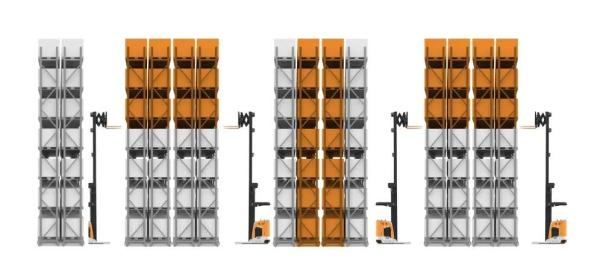

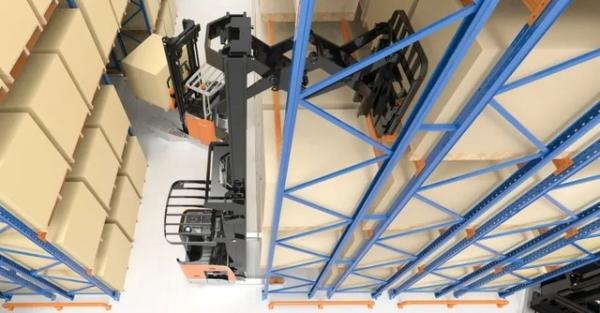

In situations where the SKU volume indicates you may require more pallet positions than standard selective pallet racking can produce, consider double-deep pallet racking. Double deep pallet racking is a simple and economical adaptation that places one row of 100% selective racking behind another. Using a deep reach forklift, the operator first places the rear pallet into the system and then places the other pallet in front of it.


While the selectivity is reduced by one-half over standard pallet racking, twice as many pallets can be stored for a given number of aisles. These warehouse pallet racking systems increase the productive utilization of floor space by approximately 60% to 65%.

Double-depth storage racking has become a very popular choice for "high throughput" operations. It offers low initial cost, high productivity, good selectivity and less equipment damage.

Applications:

●Large Capacity SKU Storage Requirements


●Space is limited


●Combine selective and high density pallet racking at a lower cost

Parameters:

Style Warehouse Storage Pallet Rack
Selection Double-deep
Dimension Standard Pallet:1200*800 / 1200*1000
1100*1100 / 1066*1220
Depth:1000MM / 900MM / 1020MM
Width: 2700MM / 2300MM / 2500MM / 2432MM
Height::pitch is adjusted by increments of 75mm
Customized Pallet:contact us directly
Upright 80*60;
90*60; 90*70; 90*75;
100*67; 100*70; 100*75;
120*75; 120*87mm,
Thickness:1.5~3.0mm
Beam Height:80~160mm;
Width:45mm/50mm;
Thickness:1.5~2.5mm
Bearing Capacity 5000KG per level max ; 1500KG per pallet max
Material Q235B
OEM&ODM Available
Surface Treatment Galvanized/Powder Coating
Color Customized
Sample Available
General Use Warehouse Shelving/Rack, etc.

Packing and Shipping:

Packaging:

The Double Deep Pallet Racking product is carefully packaged to ensure safe delivery.

The uprights and beams are wrapped in protective foam and then securely strapped together.

The pallet racking components are then placed on a sturdy wooden pallet and shrink-wrapped to prevent movement during transportation.

Custom Colors 2 Deep Pallet Racking System Powder Coated 1000-4000kg/ Layer

Shipping:

Custom Colors 2 Deep Pallet Racking System Powder Coated 1000-4000kg/ LayerCustom Colors 2 Deep Pallet Racking System Powder Coated 1000-4000kg/ Layer
