Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Specifications
Model NO. :
QF-Drive in Rack
Material :
Steel
Structure :
Rack
Type :
Pallet Racking
Mobility :
Fixed
Height :
5-15m
Weight :
2000
Closed :
Open
Development :
New Type
Serviceability :
Common Use
Color :
Customized
Lead Time :
25 Days
Raw Material :
Q235
Surface Treatment :
Powder Coating
Transport Package :
Standard Export Packing
Specification :
1200*1200*3600
Trademark :
Customized
Origin :
China
HS Code :
730890
Supply Ability :
50000PCS/Year
Package Size :
1000.00cm * 1000.00cm * 1000.00cm
Package Gross Weight :
100.000kg
After-sales Service :
Available
Warranty :
1 Year
Usage :
Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack
Samples :
US$ 60/Piece 1 Piece(Min.Order) |
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description

Adjustable Warehouse Storage Pallet Racking System Heavy Duty Drive In Pallet Racks

Product Description

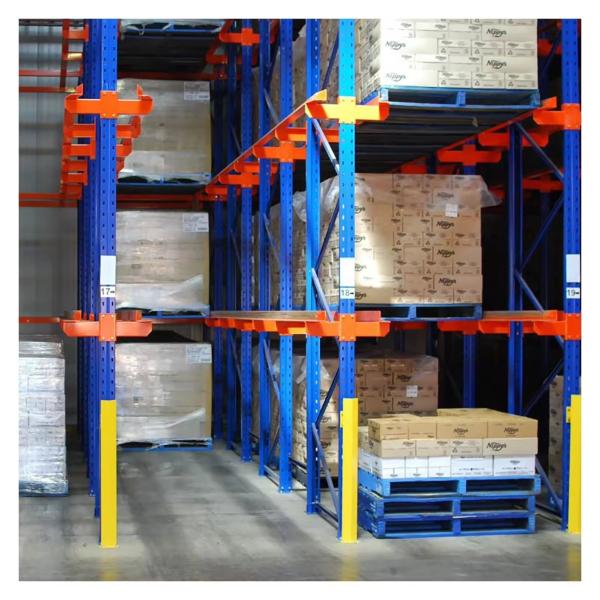

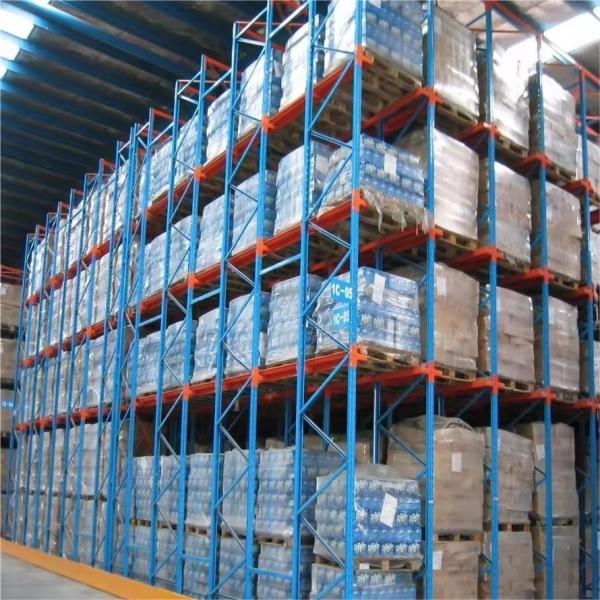

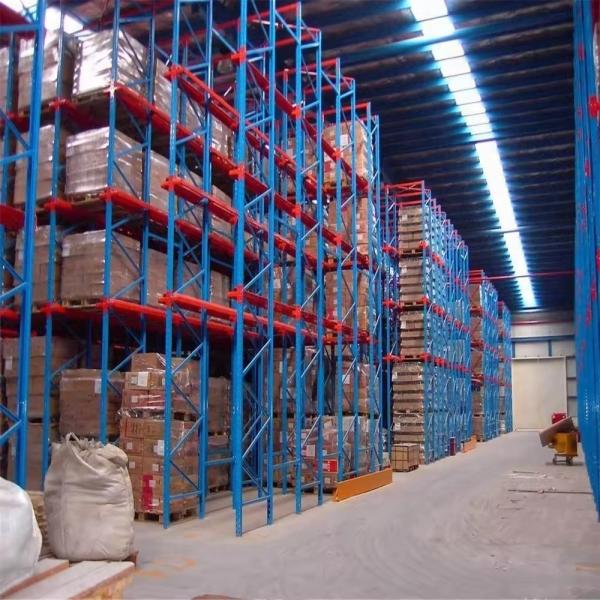

QiFei Drive-in rack:

Drive-in rack is a high-density and very space-efficient type. Drive In or Double Access Systems (Drive-through Racking) consists of continuous lanes of racking with only a single load and retrieval aisle. Loading and unloading is undertaken by means of counter balance or reach trucks that drive down each lane into the racks.
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Dimensions standard pallet size 1200x1000 / 1200x1200 / 1100x1100 / 1200x800mm
Loading 2000KG per pallet(max)
Stacking levels 4 beam levels
Thickness section upright 88*68 / 100*68mm; beam 80~100*45
Colour Blue, orange, Yellow and Grey or customized
Custom design Accpeted
Surface treatment Galvanized/Powder Coating
Quality&Services 1. Free customized design
2. Installation Instructions provided.
3. Quality cerfiticate at least 5 years.
4. We will deliver back-up accessories for maintenance along the container.
RFQs for drive in rack:
1, Under which situation should we use drive in pallet rack?
For inventory with less categories and large quantities for eack category.
2, How many depth do you plan along each drive in aisle?
For single entry, we suggest no more than 7.
For double entry, we suggest no more than 13.
3, what kind of pallet can we use in drive in pallet rack?
pallets with double faced, pallets with three runners base.
Single faced, 9 feet or any plate based will be prohibited.
4, How about the installation?
It will take 5-6 persons to do installation.
We have installation drawing for you to follow,it will be easy to carry out project installation if you follow our instruction.
5, How long do we need to wait for your production?
20 days before shipment.
6, What is your MOQ?
50pallets
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm

Detailed Photos

Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Placing a pallet

1. Driver should square the forklift with the pallet rack bay opening.
2. Lift the pallet 20mm above the rails.
3. Slowly drive to the open pallet position and carefully lower the pallet.
4. Slowly back away from the system.
Retrieving a pallet

1. Square the forklift outriggers elevated to the height of the pallet to be removed.
2. Secure the pallet with the forklift.
3. Raise the load approximately 20 mm above the rails and slowly and completely out of the system.
4. Carefully turn the forklift in the aisle to prevent rack impact and damage.
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
APPROACHING AND ENTERING THE RACK

1. The forklift truck should approach the rack squarely and not at an angle.
2. No attempt should be made to deposit/retrieve pallets or to enter a rack when the truck is NOT ncorrectly aligned.
3. lt is not acceptable to attempt to re-align a truck after entry into the rack.
Customer Site
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm

Produce Process

Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mmAdjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm

Packaging & Shipping

Packing
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mmShipping
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm

Company Profile

Welcome to visit our company
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm

Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm
Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm

Co-operation Process

Adjustable Drive In Pallet Racking System Heavy Duty Storage 1200x1000mm 1200x1200mm

FAQ

Q: Are you manufacturer or trading company?
A: We are experienced manufacturer in the warehouse storage industry.

Q: How is your delivery time?
A: Generally, it is within 20 days against formal order and deposit. It also depends on other factors such as order quantity.

Q: What is the payment term?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q: What is your terms of delivery?
A: EXW, FOB

Q: Are samples available?
A: Yes, We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q: What is the minimum order quantity?
A: Generally, MOQ is 10sets.

Q: Can I make my own brand and designed products?
A: Yes, we do both OEM and ODM, so you can make your own product with your own logo.

Q: Where is your factory? Can I visit it?
A: Our factory located in Nanjing, Welcome to visit our factory. We can arrange pick-up from the airport or train station for you.

Q: What is the material being used for your products?
A: Mild steel Q235.

Q: I don't have drawing or picture available for the products, could you design it for me?
A: Yes, we can make the best suitable design for you but need to know more details.

Q: Do I get any guarantee from your company?
A: 3 years warranty

Q: How do you make our business long-term and good relationship?
A: Quality makes trust and reputation, plus competitive price to ensure our customers benefit ;
