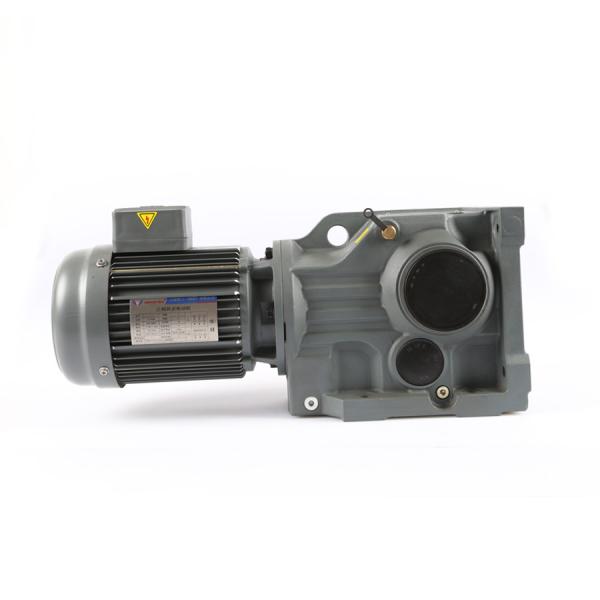

High Torque 8000Nm Helical Bevel Gear Motor
High Torque 8000Nm Helical Bevel Gear Motor
Specifications
Brand Name :
Wanshsin
Model Number :
K87/TWSSB2.2KW-4/TF/115.82/B/M1/90°
Certification :
ISO9001, CCC, CE
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5,000 Pieces per Month
Delivery Time :
3-7 working days
Packaging Details :
Carton Package or Wooden Box
Gear Unit Size :
37/47/57/67/77/87/97/107/117/127
Output Torque :
200-8000Nm
Reduction Ratio :
1:5-197
Assemble Type :
Foot Mounted/Flange Mounted
Mounting Position :
M1/M2/M3/M4/M5/M6
Frequency :
50Hz/60Hz
Motor Pole Number :
2/4/6/8
Housing Material :
Cast Iron
Description

Helical Bevel Gear Motor K Series High Torque 200-8000Nm Reduction Ratio 1:5-197 for Agitator Drives

WANSHSIN Good Quality K Series Gear Motor for Carpentry Machinery/Lifting Machinery/Chemical Mixing/Mining Conveyor etc.

Based on the high-quality raw materials and high requirements of processing technology, Wanshsin R.F.K.S series gear motor with excellent performance: Higher torque, Transmission more stable, Higher bearing capacity, Lower noise.

Wanshsin high-quality raw material for gearbox:
1 Housing material: High strength gray iron HT200.
2 Tooth surface hardness: 58-62HRC.
3 Grinding accuracy of tooth surface: level 5-6.
4 High transmission efficiency,superior performance.
5 Strong wear resistance.

It is widely used in Steel, Metallurgy, Power, Port, Food, Ceramics, Material Handling, Chemical, Coal, Mining, Cement and other industries supporting equipment like Chain Conveyor, Punching Machine, Extruder, Screw Conveyor, Overhead Crane and Gantry Cranes.
