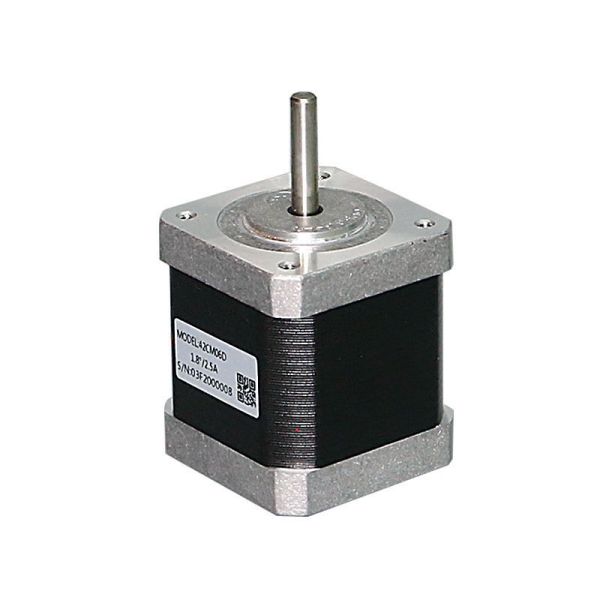

42 stepper motor motor 42CM02/04/06/08/42CM04D 06D 08D
42 stepper motor motor 42CM02/04/06/08/42CM04D 06D 08D
42 stepper motor motor 42CM02/04/06/08/42CM04D 06D 08D
42 stepper motor motor 42CM02/04/06/08/42CM04D 06D 08D
42 stepper motor motor 42CM02/04/06/08/42CM04D 06D 08D
42 stepper motor motor 42CM02/04/06/08/42CM04D 06D 08D
42 stepper motor motor 42CM02/04/06/08/42CM04D 06D 08D
42 stepper motor motor 42CM02/04/06/08/42CM04D 06D 08D
Specifications
Model Number :
WH-RB069
Certification :
CE
Payment Terms :
L/C, T/T
Price :
usd10.5~usd58
Supply Ability :
10000pieces/month
MOQ :
1 piece
Delivery Time :
15~20 days after received the payment
Packaging Details :
carton
Brand Name :
Wanhe
Place of Origin :
Foshan, China
Description

Product parameters
PRODUCTPARAMETERS
Product Name and Model: 42CM04D, 42CM06D
Number of phases (poles): 2, 2
Holding torque (N.m): 0.45, 90
Motor frame (mm): 42
Rated current (A): 1.5, 2.5
Step angle: 1.8 °
Resistance (Q): 2.3, 0.9
Inductance (mH): 4.3, 1.6
Rotor inertia (Kgcm): 0.054
Positioning torque: none
Suggested voltage (VDC): 24
Motor weight (Kg): 0.28, 0.35
Motor length (mm): 39, 47
Motor shaft diameter (mm): 5
Motor keyway/platform: Platform 4.5
Front output shaft (mm): 24
Rear shaft (mm): 0
Motor output type: loose wire
Number of motor output lines: 4
Motor output length (mm): 300
Working environment temperature (℃): -10~50
IP protection level: IP40
Insulation level: B
Certification type: CE
Recommended matching driver: M420D
