Specifications
Contact arrangement :
2NO+2NC, 3NC+3NO, 4NC+4NO
Certification :
CE , ROHS
Payment Terms :
L/C,T/T
Model Number :
WH-CE005
Contact rated current :
5A/10A
Brand Name :
wanhe
Supply Ability :
100000pieces/month
Delivery Time :
15-20days after receive the payment
Coil voltage :
AC 12V/24V/220V/380V, DC12V/24V
Place of Origin :
foshan , china
Coil material :
red copper
Relay terminal quantity :
8PCS, 11PCS, 14PCS
Price :
usd0.6~usd2.5/piece
MOQ :
1 piece
Contact material :
silver alloy
Packaging Details :
carton
Description
Intermediate Relay DC12V/24V AC220V Electromagnetic HH52P53P54P Intermediate Relay MY2NJ
Product Specifications
  • Brand: Wanhe
  • Product Name: Intermediate Relay
  • Coil Voltage: AC 12V/24V/220V/380V, DC12V/24V
  • Contact Arrangement: 2NO+2NC, 3NC+3NO, 4NC+4NO
  • Contact Rated Current: 5A/10A
  • Installation Method: Fixed
  • Contact Material: Silver Alloy
  • Coil Material: Red Copper
  • Indicator Light: Red color for AC, Green color for DC
  • Features: High conductivity terminal and flame-retardant
Function & Principle
This relay operates through electromagnetic induction. When the coil is energized, it attracts the armature, which activates the contact switch circuit. It is primarily used for signal transmission and contact augmentation rather than directly handling high loads.
Applications
Mainly applied in industrial control systems including ceramic machinery, stone machinery, and glass machinery.

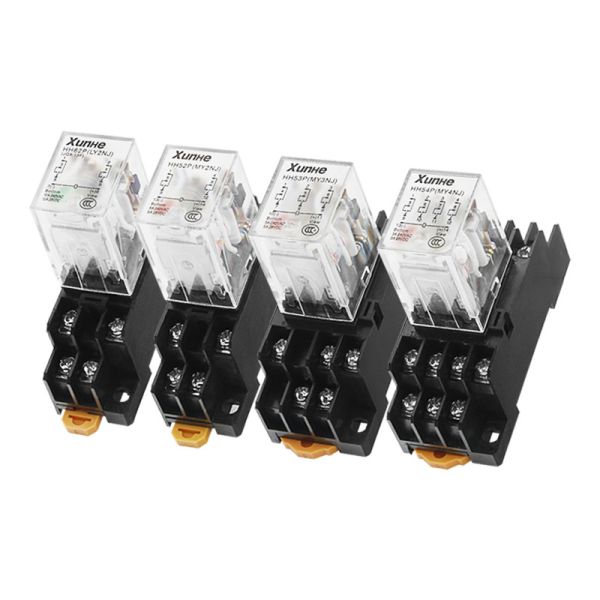

Model Specifications
Name Model Relay Terminal Quantity Current Size
Intermediate Relay HH52P(MY2NJ) 8 PCS 5A 27*21*35mm/30*72mm
HH53P(MY3NJ) 11 PCS 5A 27*21*35mm/30*72mm
HH54P(MY4NJ) 14 PCS 3A 27*21*35mm/23*72mm
HH62P(LY2NJ) 8 PCS 10A 27*21*35mm/30*72mm
HH63P(LY3NJ) 11 PCS 10A 27*30*35.7mm/37*78mm
HH64P(LY4NJ) 14 PCS 10A 27*40*35mm/45*78mm
