Specifications
Brand Name :
wanhe
Supply Ability :
100000piece/month
Certification :
CE, ROHS
Protect type :
overload protect
Price :
usd13.8~usd440/piece
Material :
Flame retardant material
MOQ :
1 piece
Model Number :
WH-CE008
Rated current :
32A~1000A
Delivery Time :
15~20days after received the payment
Poles :
2P~4P
Place of Origin :
foshan, china
Rated voltage :
220V/380V
Payment Terms :
L/C,T/T
Current shell frame :
32A~250A
Packaging Details :
carton
Breaking capacity :
25~63ka
Description
CDM3 Molded Case Circuit Breaker - 3P/4P Three-Phase Four-Wire
Available in 100A, 200A, 250A, and 630A configurations for reliable air switch protection in industrial applications.
Product Specifications
  • Brand: Wanhe
  • Product Name: Molded Case Circuit Breaker
  • Rated Current: 32A~1000A
  • Rated Voltage: 220V/380V
  • Current Shell Frame: 32A~250A
  • Breaking Capacity: 25~63kA
  • Poles: 2P~4P
  • Protection Type: Overload Protection
  • Material: Flame Retardant Material

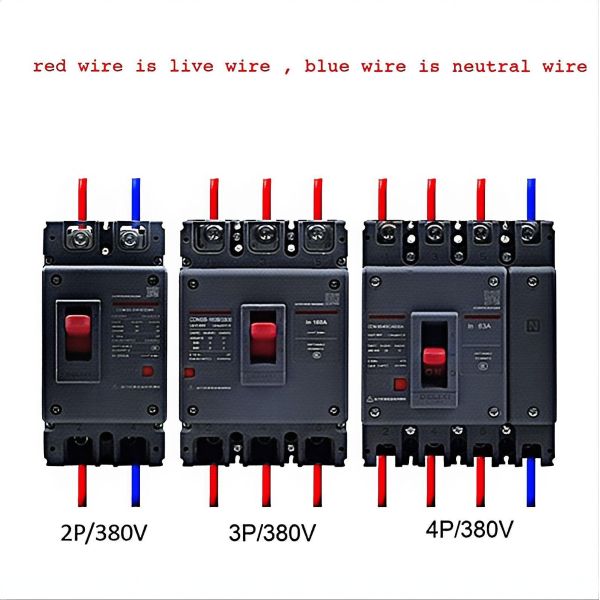

  • Wire Colors: Red (Live), Blue (Neutral)
Primary Functions
Switch control, short circuit protection, and wire overload protection to ensure electrical system safety and reliability.
Product Overview
Molded case circuit breakers are designed to protect electrical circuits by automatically tripping based on thermal and magnetic forces. They quickly cut off power during abnormal current conditions, preventing damage to wires and equipment. Suitable for infrequent circuit switching, these breakers are ideal for building electrical systems and industrial control applications in factory workshops.
Product Models
Name Model Voltage Poles
Molded Case Circuit Breaker CDM3-63/100S/125S 220/380V 2P-4P
Molded Case Circuit Breaker CDM3-160/250 220/380V 2P-4P
Molded Case Circuit Breaker CDM3-400 220/380V 2P-4P
Molded Case Circuit Breaker CDM3-630 220/380V 2P-4P
Molded Case Circuit Breaker CDM3-800 220/380V 2P-4P
Selection Guide
Q1: What size circuit breaker should I choose?
Calculate based on total power (W/watt) and voltage (default 380V for three-phase power). Consider future electrical construction and consumption increases.
Q2: What cable cross-sectional area is required?
Select appropriate cable size in square millimeters. For aluminum cables, consider increasing by one size grade for optimal performance.
Q3: Difference between 3P and 4P configurations
3P: Connects three live wires - suitable for applications without neutral wire requirements.
4P: Connects three live wires and one neutral wire - recommended when converting three-phase motor to 220V lighting power or when utilizing one live wire and neutral wire for 220V voltage conversion.
General Information
  • Origin: Foshan, China
  • Brand: DELIXI
  • Model: WH-D003
  • Certifications: 3C, CE
Commercial Terms
  • MOQ: 1 piece
  • Price: Negotiable
  • Packaging: Carton
  • Delivery Time: 15-20 days after payment
  • Payment Terms: T/T, L/C
  • Supply Capacity: 100 containers per month
