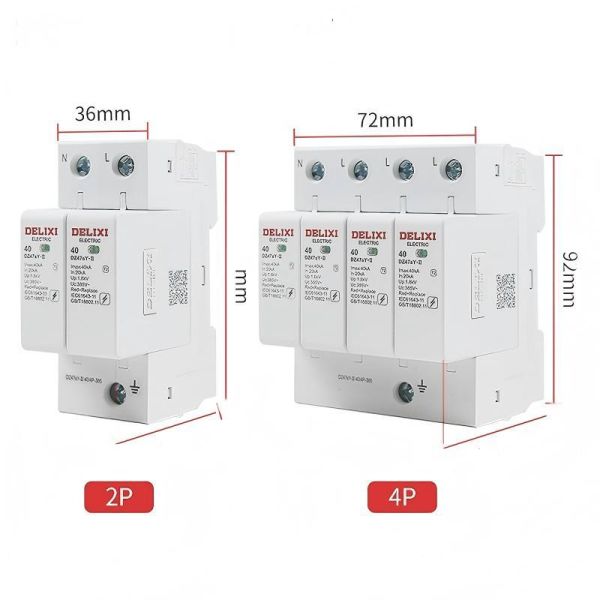

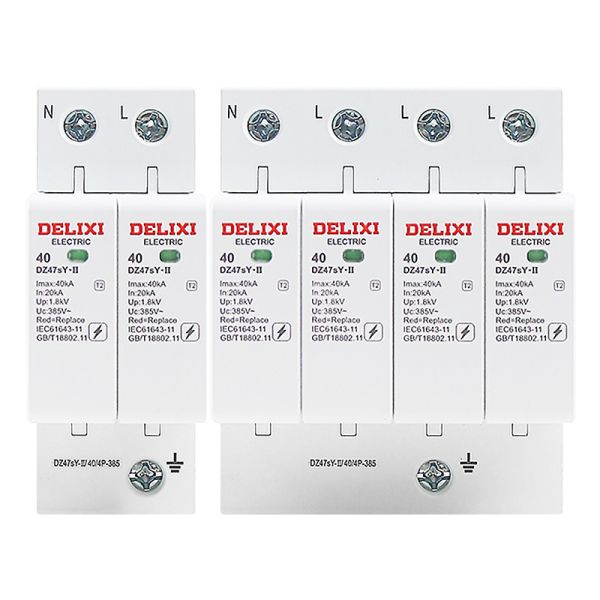

Surge protector DZ47SY lightning surge switch 2p household 4p lightning arrester 20KA40KA household
Surge protector DZ47SY lightning surge switch 2p household 4p lightning arrester 20KA40KA household
Surge protector DZ47SY lightning surge switch 2p household 4p lightning arrester 20KA40KA household
Surge protector DZ47SY lightning surge switch 2p household 4p lightning arrester 20KA40KA household
Surge protector DZ47SY lightning surge switch 2p household 4p lightning arrester 20KA40KA household
Surge protector DZ47SY lightning surge switch 2p household 4p lightning arrester 20KA40KA household
Surge protector DZ47SY lightning surge switch 2p household 4p lightning arrester 20KA40KA household
Surge protector DZ47SY lightning surge switch 2p household 4p lightning arrester 20KA40KA household
Specifications
Certification :
CE
Payment Terms :
L/C,T/T
Price :
usd6.0~usd66
Brand Name :
DELIXI
MOQ :
1 piece
Packaging Details :
carton
Place of Origin :
foshan , china
Model Number :
WH-CE018
Supply Ability :
1000000piece/month
Delivery Time :
15-20 days after receive the payment
Description

Product Parameters
Product brand: Delixi Electric
Rated voltage: AC230V
Product model: DZ47SY
Test category: T1+T2/T2/T3
Product Name: Surge Protector
Waveform: 10/350, 8/20, 1.2/50
Open-circuit voltage: 10KA
Response time: <20ns
Impulse current: 12.5KA/15KA
Protection level: IP20
Nominal discharge current: 25KA/25KA/10KA/20KA/30KA/40KA/60KA/80KA
Maximum discharge current: 50KA/50KA/20KA/40KA/65KA/80KA/120KA/160KA
Maximum continuous operating voltage wiring capacity: 275V/385V/440V
Hard wire ≤35mm, flexible wire 2.5-25mm; limit torque 3.5N.m
Hard wire ≤16mm, flexible wire 2.5-10mm; limit torque 2N.m
functional protection
Used to suppress transient overvoltages and discharge current energy to prevent or mitigate
Damage to equipment caused by transient overvoltages due to lightning strikes or operations
