One Way Two Way Parking Signage WBPIA312M Parking Guidance Screen
One Way Two Way Parking Signage WBPIA312M Parking Guidance Screen
Specifications
Brand Name :
wanbo
Model Number :
WBP-IA31-2-M
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1 ~ 5000 piece 30days
Delivery Time :
7-15 working day
Model :
WBP-IA31-2-M
Appearance material :
Black aluminum alloy outer frame
Empty car space part :
Screen-printed LED white glow word was used
illuminant :
Red and green double color LED lamp beads
Point spacing :
4.75 mm
Life length :
At 100,000 hours
Working temperature :
-30℃ ~ +65℃
Service voltage :
AC220V±10
Description

Parking Signage WBPIA312M Parking Guidance Screen

Technical parameters

Model:
WBP-IA31-2-M

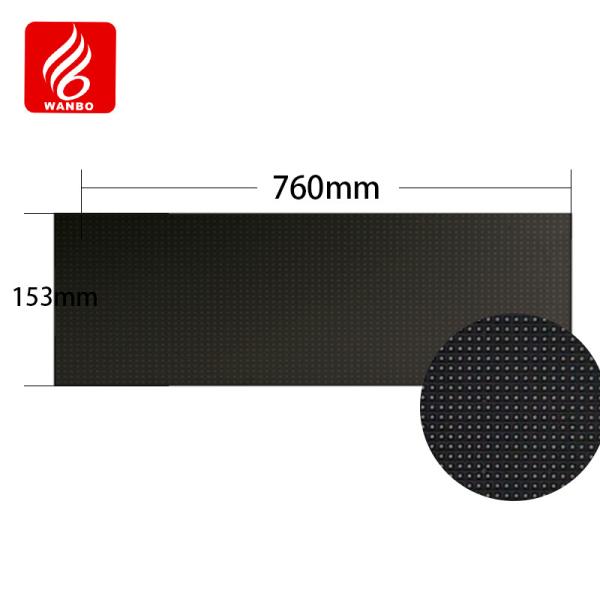

Size: One-way, 380mm*153mm

Two-way 760 mm*153mm
Three-way 1140mm *153mm
Appearance material: Black aluminum alloy outer frame
Empty car space part: Screen-printed LED white glow word was used
illuminant: Red and green double color LED lamp beads
Point spacing 4.75 mm
Life length At 100,000 hours
Working temperature: -30℃ ~ +65℃
Service voltage: AC220V±10
Maximum power dissipation: 20 W (one-way)
Ambient humidity: 5％--9 5％ RH
Communication mode:

RS485 Bluetooth (debugging for use)
Communication distance:

Rs485≤ 300m

Bluetooth Vacation 5M
Pixel point density 44,321 points / ㎡
Resolution ratio 80 * 32 = 2,560 points
Drive way constant current

Table 3.1 Technical parameters of parking space guide plate

Product profile

The parking space guide plate is a crucial device for parking management. Made up of a high brightness LED module, a drive
unit, a bracket and other parts, it is installed above the front of the parking space. It functions by receiving the output
information from the centralized controller. Subsequently, it showcases the parking space's attributes and license plate number
in the forms of numbers and Chinese characters. This enables it to guide vehicle owners to park their vehicles accurately on
the right parking spaces. Moreover, it plays a significant role in ensuring the smooth operation of the parking lot and
maximizing the utilization of all parking spaces. Overall, it's a practical and essential element for an orderly parking
environment. One Way Two Way Parking Signage WBPIA312M Parking Guidance Screen

Product features

  • The guide screen adopts black aluminum alloy outer frame, the appearance is simple and atmosphere;
  • The guide screen adopts low power consumption design, with short circuit, overvoltage, overcurrent and overload protection;
  • The display content supports Settings to meet the use of various parking space types;
  • Green instructions are clearly discernible, with high luminous intensity, far visible distance, and wide perspective;

Product installation

The parking space guide plate is installed by ceiling lifting mode, and the power line and signal line are directly introduced from the bridge to the guide screen box by metal hose. The installation diagram is shown in Figure 4.1:

One Way Two Way Parking Signage WBPIA312M Parking Guidance Screen

Figure 4.1 Installation diagram of outdoor wired guide screen
