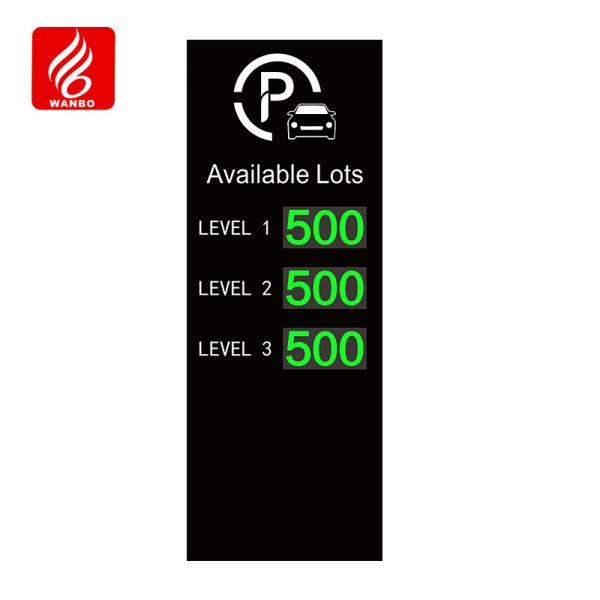

WBPVA3N3 Outdoor Parking Large Guidance Screen OEM ODM
WBPVA3N3 Outdoor Parking Large Guidance Screen OEM ODM
Specifications
Brand Name :
wanbo
Model Number :
WBP-VA3N-3
Place of Origin :
China
MOQ :
1Set
Price :
US $55
Payment Terms :
L/C, T/T
Supply Ability :
1 ~ 5000 piece 30days
Delivery Time :
7-15 working day
Model :
WBP-VA3N-3
Size :
800*160*2200mm
Levels of Protection :
IP65
Supports the Display Number :
3 or 4
illuminant :
Red / green highlighted LED
Working Voltage :
AC 110～240V
Working Temperature :
from -30℃ to +75℃
Shape :
Rectangle
Language :
English
Description

Parking Signage WBP-VA3N-3 Outdoor Parking Large Guidance Screen OEM ODM
Specification

Model: WBP-VA3N-3
Size: 800*160*2200mm
Levels of Protection: IP65
Supports the Display Number Three or four
illuminant: Red / green highlighted LED
Appearance Material: Cold steel baking paint + tempered glass panel
Working Voltage: AC 110～240V
Working Temperature: -30℃ ~ +75℃
Ambient Humidity: 90% RH (no condensation)
Power Dissipation: 15W (single layer)
Communication Mode: RS485
Communication Distance: ≤ 300 m

Table 3.1 Technical Parameters Table of outdoor guided large screen

System architecture
WBPVA3N3 Outdoor Parking Large Guidance Screen OEM ODM

Product Description
The outdoor guide screen, an integral part of parking lot facilities, consists of a high brightness LED module, drive circuit, bracket
and other components. Positioned at every entrance of the parking lot, it serves the crucial function of presenting the real-time
number of remaining parking spaces. Operating 24/7, it offers clear guidance to drivers, facilitating efficient parking and
enhancing the overall user experience in the parking lot.WBPVA3N3 Outdoor Parking Large Guidance Screen OEM ODM

Product Features

  • 1. The guide screen features a tempered glass panel combined with a cold steel baking paint shell, presenting a simple yet elegant appearance.
  • 2. Its shell is designed to be waterproof and dustproof. Moreover, ultraviolet resistant paint is applied, making it resistant t color fading.
  • 3. With a low power consumption design, the guide screen also comes equipped with short circuit, overvoltage, overcurrent and overload protection.
  • 4. The red and green two-color indication is highly recognizable. It has high luminous intensity and a long visible distance, offering a wide viewing perspective.

Product installation

The outdoor guide screen is fastened with screws. The embedded plate, anchor screw (M12 * 350) and PVC thread pipe (Φ 20) are embedded in 1000 * 1000 * 1000mm cement pier. After natural solidification, the outdoor guide screen can be fixed to the anchor screw. The installation diagram is shown in Figure 4.1:
WBPVA3N3 Outdoor Parking Large Guidance Screen OEM ODM
Figure 4.1 Installation diagram of outdoor guide large screen

Case picture

WBPVA3N3 Outdoor Parking Large Guidance Screen OEM ODM
