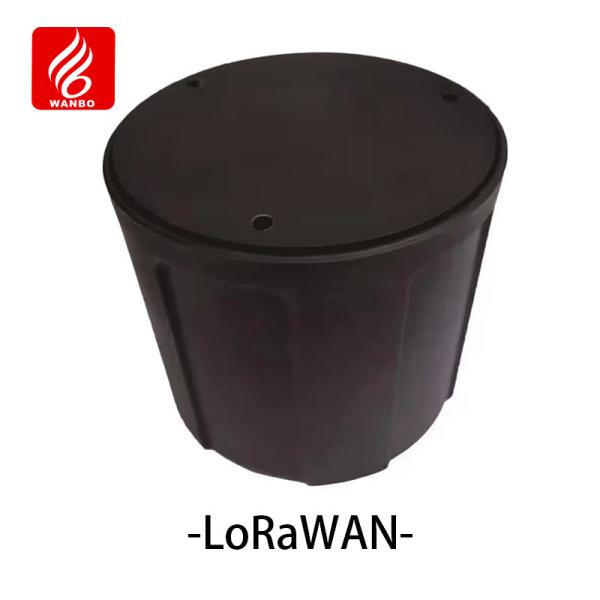

Parking Sensor Lorawan Buried Dual Mode Geomagnetic Parking Detector Wireless
Specification
Model | WBP- T10M (buried type) | WBP-T10S (surface type) | Operation Voltage | 2.5~3.6V(internal battery) |
Dimension | Φ113×101mm | Φ175×40mm | Level of Protection | IP68 |
Battery Capacity | 38000mAh | 18000mAh | Average Current | <50uA |
Battery Life | >5 years | 3-5 years | Sheating Material | Black PC+ABS+PA66 |
NW | 850g | 645g | Communicate Mode | RF470MHz @ 10kbps |
Installation Methods | Buried installation | Surface installation | Communicate Distance | ≤100m |
Operating Temperature | -30℃~+85℃ | -30℃~+85℃ | Detection Accuracy | ≥99% |
Compression Resistance | | RH | ≤90%RH(NO CONDENSATION OF MOISTURE) |
Wireless Upgrade | | Mobile APP Debugging | Support |
System architecture

Product Description

Product Features
1) Adopting wireless microwave radar and geomagnetic dual judgment method, advanced recognition algorithm, with a detection accuracy of over 99%;
2) Strong anti-interference ability, no impact on underground rail transit, cellar covers, base stations, metal support sunshades, etc;
3) Wireless communication eliminates wiring troubles and reduces construction difficulty;
4) The geomagnetic parking detector has a small external size and minimal damage to the parking space ground;
5) High strength shell design, with compressive and anti-corrosion characteristics, and long service life;
6) Adopting a protection design of up to IP68, it can effectively cope with various harsh environments in outdoor parking spaces.
7) Bluetooth debugging for mobile apps, convenient and simple. Convenient maintenance.
Product display

Case Images

Parking Sensor Lorawan Buried Dual Mode Geomagnetic Parking Detector Wireless
