This machine tool features a gantry design with a compact structure and a full-body protective cover, effectively preventing water and abrasive splashes during cutting, thus reducing environmental pollution and noise.

It utilizes high-precision linear guides from Taiwan's Hiwin and TBI ball screws, ensuring consistent accuracy. A 360-degree dustproof system protects the transmission components. Safety doors are located around the platform and equipped with an alarm and stop function when a door is opened, further enhancing safety and facilitating maintenance.

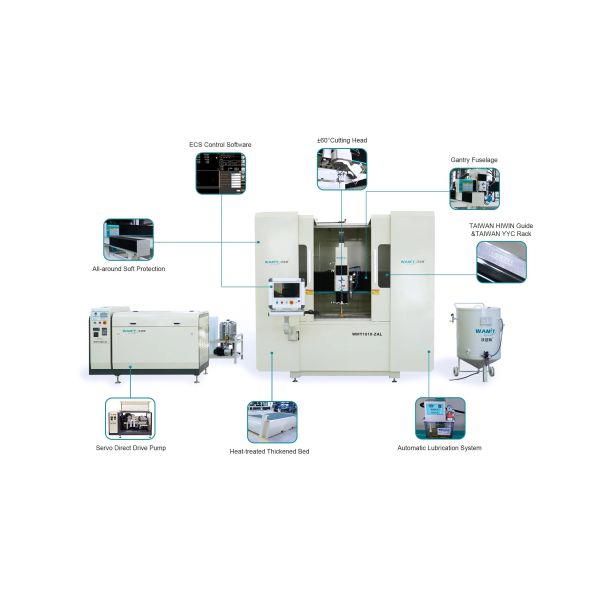

WMT Echo Series Product Introduction

1. Gantry-style body, all-steel frame, high-temperature forging, durable.

2. Pure water and abrasive ultra-high pressure cutting head, capable of cutting almost all materials, including glass, ceramics, stone, metal, foam, plastic, rubber, vegetables, food, etc.

3. Equipped with three-axis and five-axis cutter heads, capable of vertical and non-perpendicular cutting, with a maximum cutting angle of 60 degrees.

4. Uses the Japanese HERG automatic lubrication system.

5. Internal components are selected from Schneider Electric, an international brand, ensuring reliable quality and durability.

6. Taiwan HIWIN linear guides and Taiwan TBI ball screws.

7. Employs the WAMIT waterjet CNC cutting system.

8. Fully enclosed Z-axis structure, water-free and abrasive-free, resulting in higher cutting precision.

9. Customization available according to customer needs.

10. Uses a self-developed direct-drive pump, saving 60%-70% of electricity, energy-saving and power-efficient. 11. Comprehensive after-sales service: Providing equipment maintenance and repair, online video technical support, installation, commissioning and training, and free spare parts support.

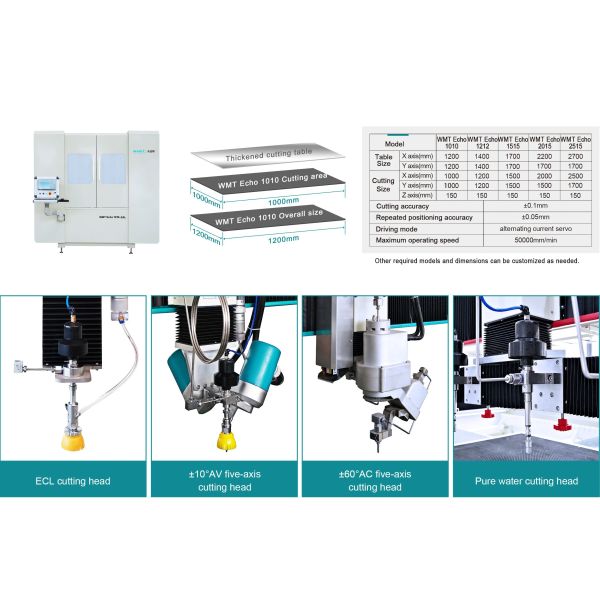

waterjet cutting machine cutting head type

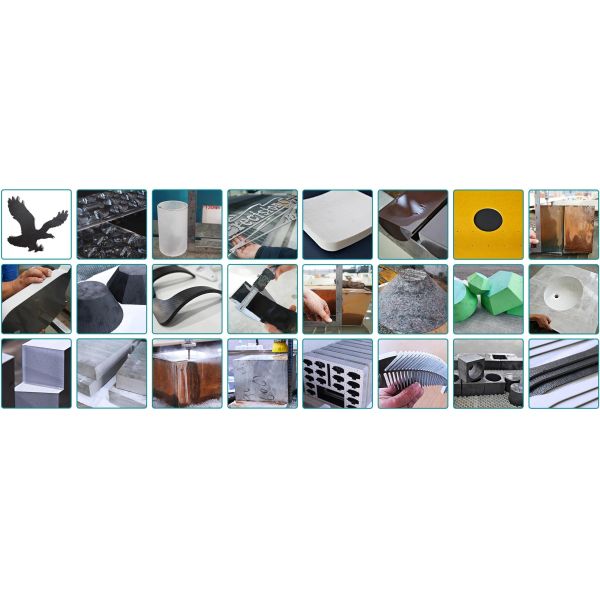

waterjet cutting machine CUTTING SAMPLES

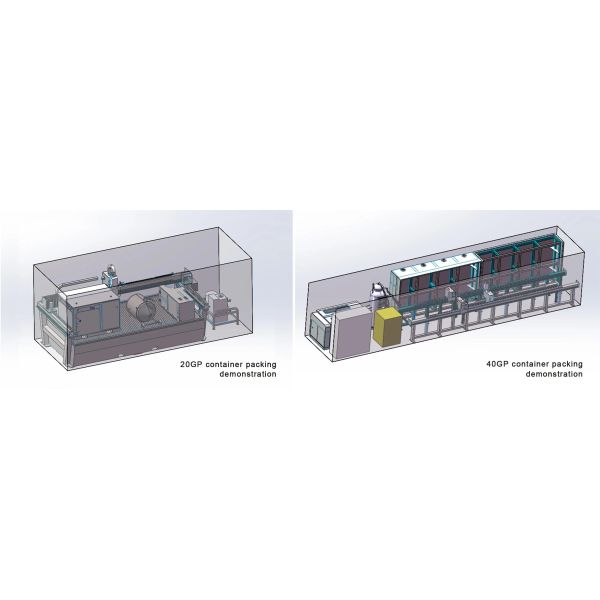

waterjet cutting machine Delivery :
