Smart Rechargeable Camera Battery Charger Vapor 45W PD Wall Charger
Smart Rechargeable Camera Battery Charger Vapor 45W PD Wall Charger
Smart Rechargeable Camera Battery Charger Vapor 45W PD Wall Charger
Smart Rechargeable Camera Battery Charger Vapor 45W PD Wall Charger
Specifications
Brand Name :
Fullpower
Model Number :
C1803
Certification :
FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Input :
100-240V 50/60HZ
Output :
PD 45W: 5V 9V 12V 15V 20V / 3A 3A 3A 3A 2.25A
USB Type :
USB-C
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Make
Warranty :
3 years
Description

45W Pd Charger Camera Battery Charger Vapor Battery Charger For Smart Rechargeable

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 45W PD OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

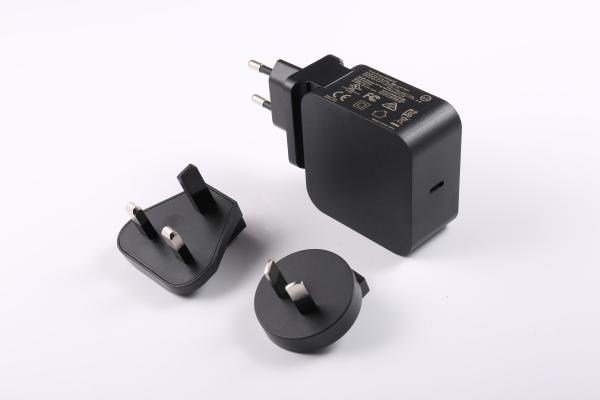

v Interchangeable AC plugs

Interchangeable Plug

v UL,FCC

v CB,CE,UKCA

v SAA,PSE,CCC,KC

v REACH, ROHS

 Smart Rechargeable Camera Battery Charger Vapor 45W PD Wall Charger
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency

90 - 264V

47 - 63HZ

 C803B 5V 3000mA 30mV Level SIX 6
C803B 9V 3000mA 30mV Level SIX 6
C803B 12V 3000mA 40mV Level SIX 6
C803B 15V 3000mA 40mV Level SIX 6
C803B 20V 2250mA 50mV Level SIX 6
C803B 5V 3000mA 50mV Level SIX 6
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 0.5A Max Standby Power 0.2W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 5V/ 9V/ 12V/ 15V/ 20V Operating Temperature 10°C~40°C
Output Current Range 100mA-3000mA Cooling Convection
Output Power Range 45W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 58.2mm *58.2mm *29.2mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950 / 61558

Factory Overview

Smart Rechargeable Camera Battery Charger Vapor 45W PD Wall Charger

Smart Rechargeable Camera Battery Charger Vapor 45W PD Wall Charger

Smart Rechargeable Camera Battery Charger Vapor 45W PD Wall Charger


Certificates

Factory Certification

ISO 9001

Quality management system

ISO 14001

Environment management system

BSCI

Business Social Compliance Initiative Certificate

 Smart Rechargeable Camera Battery Charger Vapor 45W PD Wall Charger

Safety Certificates

UL, FCC, CB, CE, UKCA, EAC, CCC, PSE, KC, KCC, RCM, C-TICK, SAA, BSMI, BIS etc

Powerful Customers

SK Telecom Honeywell iHome Systems
PHILIPS NUSKIN DGL GROUP
TOSHIBA SIEMENS FOSCAM
