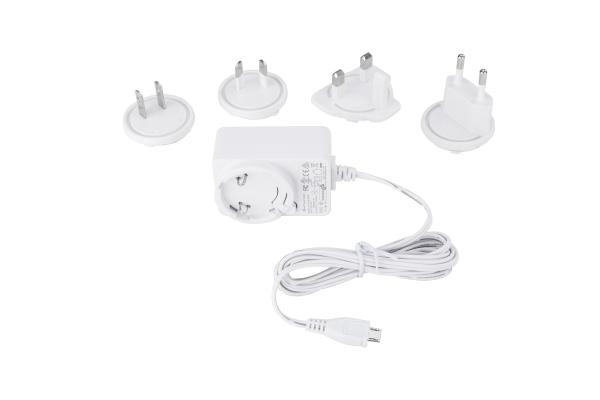

12W Universal Desktop Power Adapter AC DC PC Switching Power Supply Adapter
12W Universal Desktop Power Adapter AC DC PC Switching Power Supply Adapter
12W Universal Desktop Power Adapter AC DC PC Switching Power Supply Adapter
12W Universal Desktop Power Adapter AC DC PC Switching Power Supply Adapter
12W Universal Desktop Power Adapter AC DC PC Switching Power Supply Adapter
12W Universal Desktop Power Adapter AC DC PC Switching Power Supply Adapter
Specifications
Brand Name :
Fullpower
Model Number :
15300
Certification :
FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Item :
12W Universal Laptop Power Adapter
Input :
100-240V 50/60HZ
Output :
DC 12W Max
AC Plug :
AU EU UK US CN KR
DC Connector :
Custom make
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Make
Warranty :
3 Years
Description

12W Universal Laptop Power Adapter Ac Dc Switching Power Adapter Pc Power Supply Adapter

Key Specifications/ Special Features:

Input characteristics:
1. Input Voltage: 100-240VAC ± 10%
2. Frequency: 50/60Hz
3. Input Current: 0.5Amax
4. Starting time: 3s max
5. Inrush current: 30A/240VAC max

Protection:
• Short circuit protection
• Over current protection
• Over voltage protection
• Thermal shutdown protection

Application:
DVD players, LCD and TFT TVs, MP4 players, digital cameras, CCTV , other A/V products, cell phone charger, network information, security equipment, small home appliances, LED,battery charging

Certifications:
UL, cUL, ETL, CCC,CQC, CE, CB, GS, FCC, EK, SAA, C-tick, CSA, PSE, S-Mark,UKCA,BS1363,KC,KCC and so on .
We can supply various kinds of power adapter to meet your requirements.

Features:
Ultra-small size, light weight, fully sealed and easy to carry
Cooling mode: natural cooling
Safety standards: IEC/EN/UL60950/UL61558/ICE60335/UL1310 and so on
Average failure rate: 50, 000 hours

Environmental:
Operating temperature: 0 °C -40 °C, 5% -90% RH
Storage temperature: -20 °C -85 °C, 5% -95% RH

Why choose Yingyuan
1. Abundant experiences: we are the power adapter manufacturer in this line for 16 years
2. Quality approved: all of our products have passed the safety standard
3. On time delivery
4. Best service best quality best price

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 6-12 WATT OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

Multi-blade Type

v UL,FCC

v CB,CE,UKCA

v SAA,PSE,CCC,KC,BIS,BSMI

v REACH, ROHS

 12W Universal Desktop Power Adapter AC DC PC Switching Power Supply Adapter
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency

90 - 264V

47 - 63HZ

 ICP12-050-1500 5V 1500mA 60mV Level 6 VI
ICP12-050-2000 5V 2000mA 60mV Level 6 VI
ICP12-090-1000 9V 1000mA 60mV Level 6 VI
ICP12-120-1000 12V 1000mA 60mV Level 6 VI
ICP12-150-0800 15V 800mA 60mV Level 6 VI
ICP12-240-0500 24V 500mA 60mV Level 6 VI
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 0.2A Max Standby Power 0.1W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 4.00V-36.00V Operating Temperature 10°C~40°C
Output Current Range 100mA-2100mA Cooling Convection
Output Power Range 12.0W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 59.1mm *40.2mm *26.1mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950/ 60335/ 61558/ 60065 / UL1310

Certificaiton
12W Universal Desktop Power Adapter AC DC PC Switching Power Supply Adapter

Shipping delivery
12W Universal Desktop Power Adapter AC DC PC Switching Power Supply Adapter

FAQ:

Q1: Are you Meanwell official authorized distributor?
A: Yes, we are. You can find us in Meanwell's website.
Q2: What is the MOQ?
A: Small order welcome, MOQ=1PC.
Q3: What about the lead time and shipment?
A: Standard ( popular model ) can be ship within 2 day, bulk order can be delivered within 10~35 days.
For shipping, we often use DHL, FedEx, UPS, and TNT. For bulk order, we recommend to send goods by Air or by Sea to save your transportation cost.
Q4: What is the warranty for your Power Supply?
A: 3 years based on different series.
Q5: What is your payment terms?
A: We accept pay via Bank Transfer, Paypal, Western Union and Trade Assurance.
