Fullpower 6V 18V AC DC Power Adapter 12W 7.5V AU EU US UK Plug
Fullpower 6V 18V AC DC Power Adapter 12W 7.5V AU EU US UK Plug
Fullpower 6V 18V AC DC Power Adapter 12W 7.5V AU EU US UK Plug
Fullpower 6V 18V AC DC Power Adapter 12W 7.5V AU EU US UK Plug
Fullpower 6V 18V AC DC Power Adapter 12W 7.5V AU EU US UK Plug
Fullpower 6V 18V AC DC Power Adapter 12W 7.5V AU EU US UK Plug
Specifications
Brand Name :
Fullpower
Model Number :
15300
Certification :
FCC,UL,CE,UKCA,SAA,KC,PSE,CCC,etc
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
T/T, Western Union
Supply Ability :
100000PCS/Day
Delivery Time :
30 working days
Packaging Details :
Individul Pe Bag Packing or others
Item :
12W Ac Dc 7.5 V Power Adapter 6v Ac Dc Power Adapter
Input :
100-240V 50/60HZ
Output :
DC 12W Max
AC Plug :
AU EU UK US CN KR
DC Connector :
Custom make
Material :
ABS+PC
Color :
Black, White Or Others
Protection :
OCP, OLP, OVP And Others
Logo :
Fullpower Or Custom Make
Warranty :
3 Years
Description

12W Ac Dc 7.5 V Power Adapter 6v Ac Dc Power Adapter 18v Ac Dc Power Adapter Au Eu Us Uk

About Yingyuan factory:

Shenzhen Yingyuan Electronics Co.,Ltd. is an innovativemanufacturer and outstanding leading supplierin the international video surveillance field,

withsubstantial experience engineers and adeptworkers in this field; we pay close attention toevery innovation, which accelerates better andfaster

development of Video Surveillance, andconstantly evaluate the market trend and pro-vide new products to the market.

Data-sheet

FEATURES SAFETIES APPROVALS PRODUCTS PICTURE

v EFFICIENCY VI

v 6-12 WATT OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

Multi-blade Type

v UL,FCC

v CB,CE,UKCA

v SAA,PSE,CCC,KC,BIS,BSMI

v REACH, ROHS

 Fullpower 6V 18V AC DC Power Adapter 12W 7.5V AU EU US UK Plug
TYPICAL MODEL LIST
I/P Voltage Typical model Output Voltage Output Current Ripple & noise Efficiency

90 - 264V

47 - 63HZ

 ICP12-050-1500 5V 1500mA 60mV Level 6 VI
ICP12-050-2000 5V 2000mA 60mV Level 6 VI
ICP12-090-1000 9V 1000mA 60mV Level 6 VI
ICP12-120-1000 12V 1000mA 60mV Level 6 VI
ICP12-150-0800 15V 800mA 60mV Level 6 VI
ICP12-240-0500 24V 500mA 60mV Level 6 VI
INPUT SPECIFICATIONS GENERAL SPECIFICATIONS
Input Voltage 90〜264VAC Primary to Secondary 50MΩ MIN
Input Frequency 47〜63Hz Efficiency VI
Input Current 0.2A Max Standby Power 0.1W MAX
Inrush Current 40A Max Leakage Current 0.25mA MAX
OUTPUT SPECIFICATIONS ENVIRONMENTAL SPECIFICATIONS
Output Voltage Range 4.00V-36.00V Operating Temperature 10°C~40°C
Output Current Range 100mA-2100mA Cooling Convection
Output Power Range 12.0W Max Temperature Coefficient 0.05%/°C
Short Circuit Protection Automatic Recovery Humidity 5~95%RH(non-condensing)
Over-Current Protection Automatic Recovery Storage Temperature -20°C~+80%°C
Ripple and Noise 100mVp-p max PHYSICAL SPECIFICATIONS
Turn On Time 20-30mS normal Physical Specifications 59.1mm *40.2mm *26.1mm
Line Regulation 1% max SAFETIES STANDARD
Output Regulation ±5% Safeties Standard 62368 / 60950/ 60335/ 61558/ 60065 / UL1310

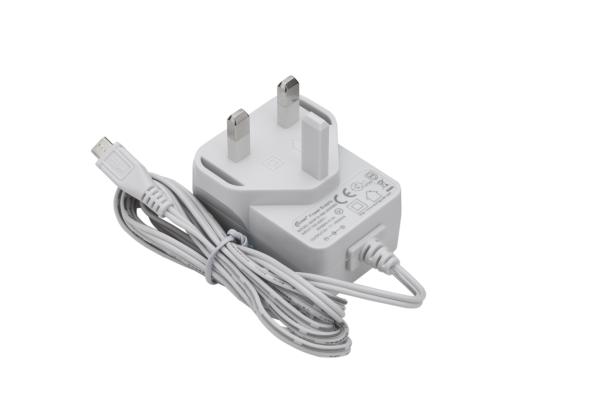

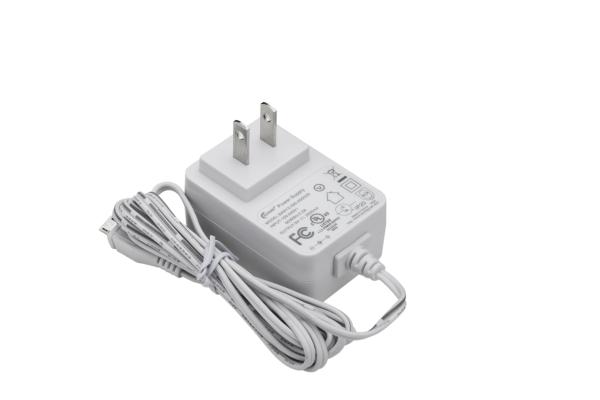

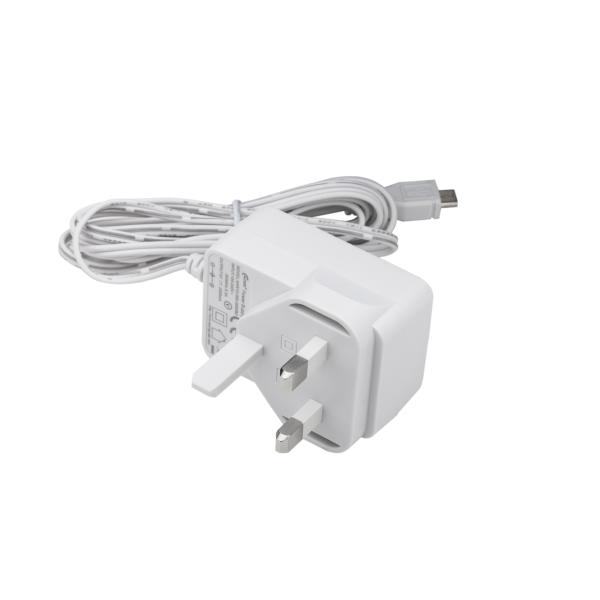

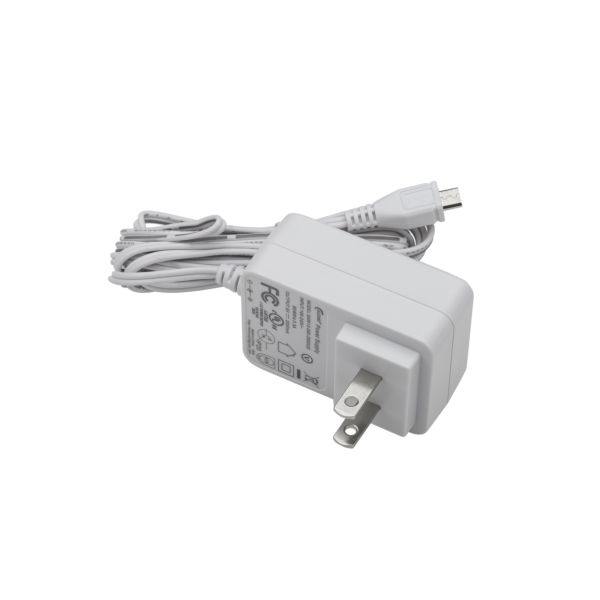

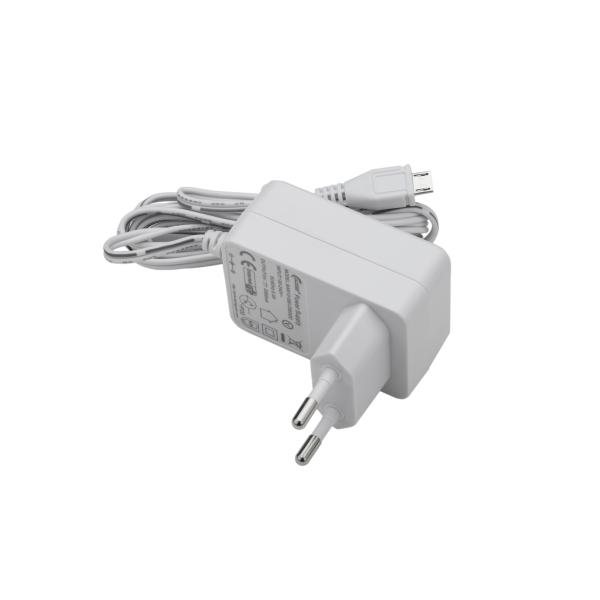

Product Pictures

Fullpower 6V 18V AC DC Power Adapter 12W 7.5V AU EU US UK Plug

Fullpower 6V 18V AC DC Power Adapter 12W 7.5V AU EU US UK Plug

Fullpower 6V 18V AC DC Power Adapter 12W 7.5V AU EU US UK Plug

Shipping Way
Fullpower 6V 18V AC DC Power Adapter 12W 7.5V AU EU US UK Plug

FQA:

1. Are you a trading company or factory?
We are a real factory located in Shenzhen,China.
2. What is the MOQ for your products?
The MOQ is different from the different product. Usually the MOQ is 100pcs per model.
3. What is the leadtime for the bulk order?
Usually it is 7-10 days for 1000pcs.
4. What is the warranty for your goods?
24 month.
5. Can you do OEM and ODM?
We have more than 10 years experience to do OEM and ODM
6. Do you have any certificate for your products?
ETL, cTUVus, KC, PSE, CB, KC, CE, ROHS, FCC etc by TUV and SGS
7. What are your main products?
We spealize in the ac dc adapter, laptop charger, wireless charger, usb wall charger and usb car charger.
8. Do you accept paypal?
Yes, we accept paypal, T/T and west union.
