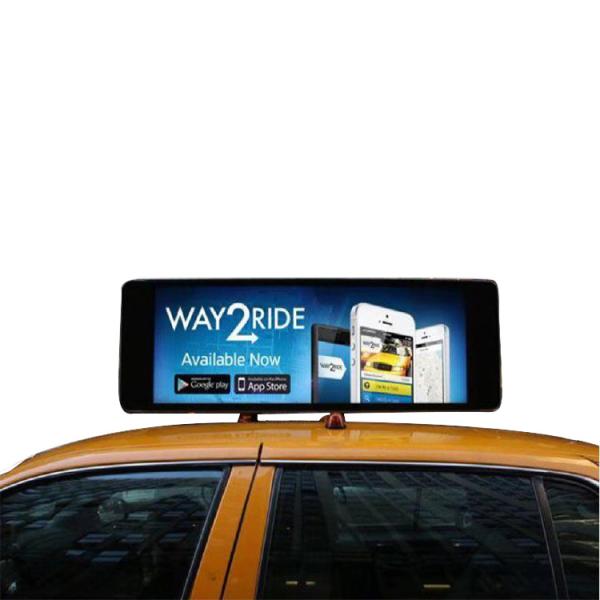

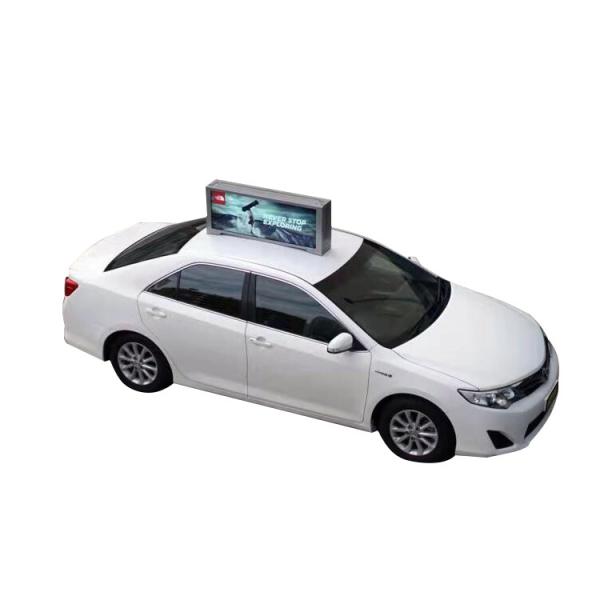

| product name:43.8-inch double-sided car outdoor advertising machine | |||
| project name | Quantity | Remarks | |
| project name | Specification | ||
| Show part | 43.8-inch display | 2 | Industrial Samsung display resolution3840*1080. |
| Backlight/2000cd/㎡ | 1 | Direct use of LED backlight. | |
| Anti-glare AR glass | 1 | Using imported original film, AR antireflection T = 6.8MM, light transmittance 97%, reflectance less than 3%, with laminated plastic. | |
| Backlight control | 1 | With automatic automatic adjustment of brightness, environmental protection and energy saving features | |
| Motherboard | RK3399 | 1 | RK3399+4GB+16GB+GPS+4G+keyboard and mouse USB interface+automatic dimming function+access control sensor+information publishing system and background management |
| Electronic part | power | 1 | Industrial-grade car power supply, 9-36V input, automatically adjust the brightness, reduce power consumption. |
| Wire | 1 | ||
| Electronic part | Leakage protection switch | 1 | With leakage protection, lightning protection, can be more time control. |
| Lightning protection device | 1 | ||
| Time control switch | 1 | ||
| Cooling part | Smart fan cooling | 1 | Patented intelligent cooling system with to meet the LCD screen in the external environment -40 to 85 degrees under normal work. |
| Sheet metal part | chassis | 1 | Made of stainless steel + aluminum chassis, |
| Special outdoor powder coating | 1 | ||
| Waterproof tape | 1 | ||
| Assembly costs | Machine assembly | 1 | Machine assembly testing |
| Test section | IP55 waterproof test | 1 | To ensure the normal operation of the product after shipment, complete machine test before shipment. |
| High and low temperature test | 1 | ||
| Simulated solar radiation test | 1 | ||
| package | Wooden box plus pearl cotton care foot | 1 | Wooden packing |
