Dual Energy X Ray Television Scanner For Inspection Of Bulky Baggage And Cargo
Dual Energy X Ray Television Scanner For Inspection Of Bulky Baggage And Cargo
Dual Energy X Ray Television Scanner For Inspection Of Bulky Baggage And Cargo
Dual Energy X Ray Television Scanner For Inspection Of Bulky Baggage And Cargo
Dual Energy X Ray Television Scanner For Inspection Of Bulky Baggage And Cargo
Dual Energy X Ray Television Scanner For Inspection Of Bulky Baggage And Cargo
Specifications
Brand Name :
Securina
Model Number :
SA150180
Certification :
FCC-SDoC, CE
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
$4999 - $29999/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 sets/month
Delivery Time :
5-10 working days after payment confirmation
Packaging Details :
Carton or wooden case
Item Name :
X-Ray Television Introscopes
Tunnel Size :
1500mm×1800mm
Conveyor Speed :
0.22m/s
Conveyor height :
350mm (adjustable)
Conveyor Max Load :
2000kg
X-ray generator :
160KV in standard, 200KV, 300KV in option
Description

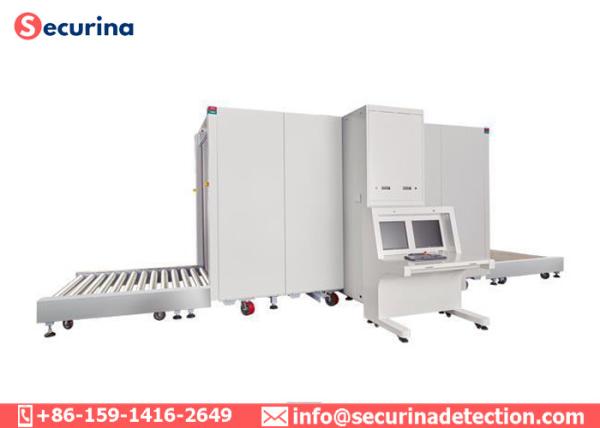

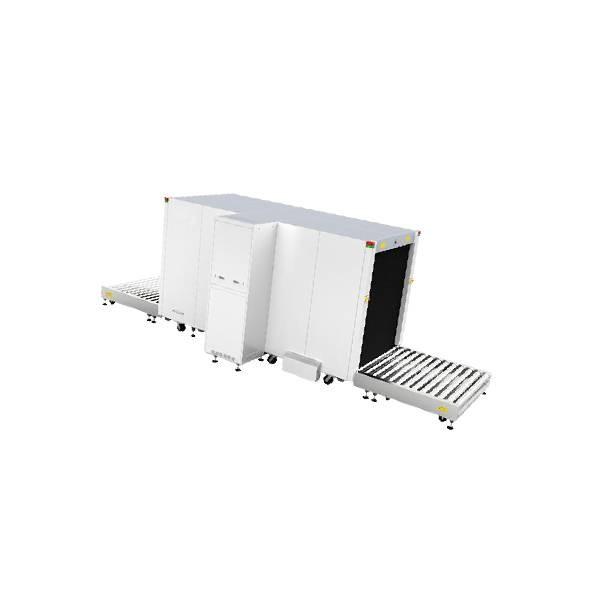

Dual-Energy X-Ray Television Installation For Inspection Of Bulky Baggage And Cargo

Introscope Securina SA150180 - X-ray television installation for inspection of bulky baggage and cargo. Tunnel size: width 1500 mm x height 1800 mm. It is used for screening at airports, railway stations, seaports, postal and cargo terminals, warehouses.

Features of the SA150180 introscope:

  • Low conveyor for heavy loads.
  • Display of images of objects being inspected in 4 colors, depending on the atomic number. The 4-color display makes it easier for the operator to identify the materials of the inspected object and speeds up the inspection procedure itself.
  • A system of continuous real-time diagnostics that allows users to monitor the condition of the equipment and prevent premature failure of it. This increases the service life of the equipment.
  • A wide range of functions in the basic configuration.
  • Russified keyboard and software.

SA150180 x ray television installation (introscopes) specifications:

Physical Specifications
Unit weight (kgs) 1150
Unit size (mm) 2127(L)*2230(W)*2338(H)
after packed in wooden pallet -
Gross weight (kgs) 1350
Packing size #1: 285*250*276cm
#2: 113*91*142cm
General Specifications
Tunnel size(mm) 1500(L)*1800(W)
Conveyor Speed(m/s) 0.5
Conveyor height(mm) 350
Conveyor Max Load(kgs) 2000
X ray dose per each inspection 1.5 μGy
X ray leakage <0.25 μGy / h
Penetration 43mm steel
Wire Resolution dia 0.0787mm copper wire (AWG40)
Penetration Resolution dia 0.16mm copper wire (AWG34) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
Spatial resolution: dia1.0mm,Vertical: dia1.0mm
Power Consumption max. 2KW
Noise < 58 dB
Film Safety Guarantee ASA/ISO1600 Film
X-ray Generator (single)
Anode Voltage 160-200 KV
Anode power 0.4-1.2mA (adjustable)
Generate direct 80 degree downward
Cooling / Duty Cycle from top to bottom
Brand Spellman

RFQ:

Are you manufacturer?
Yes, we are professsional manufacturer of security threats detection system in south of China.
Stable quality and foremost service always be the key that we focus on.

How many days we can get the machine after payment?
Normally, with stock only need 5-7 days for leading time.
Without stock, need 10-15 days to manage the production.
Delivery by sea, air for your choices.

How about the warranty and services?
Provide one year warranty and lifetime technic support.
Accept to send our engineer to your country for training in additional cost.
Free training one-on-one in our factory for free.
