Monocular Camera with 45x Hybrid Zoom Dual Output and Lightweight Design for High-Precision Gimbal Stabilization
Monocular Camera with 45x Hybrid Zoom Dual Output and Lightweight Design for High-Precision Gimbal Stabilization
Specifications
Brand Name :
GS
Model Number :
DHU05S35
Place of Origin :
Made in China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
6-8
Voltage :
DC 12V-26.2V③
Power Consumption :
Power Consumption
Roll angle action range :
-45 °～ +45°
Pitch angle action range :
-45°～ +120°
Yaw angle action range :
-145°～+145°
Angle jitter in pitch and roll direction :
±0.02°
Horizontal angle jitter :
±0.03°
±0.03° :
1080P 30fps
HDMI Video :
Micro-D HDMI 1080P 60fps
Min tracking target size :
16×16 pixels
Max tracking target size :
256×256 pixels
Description

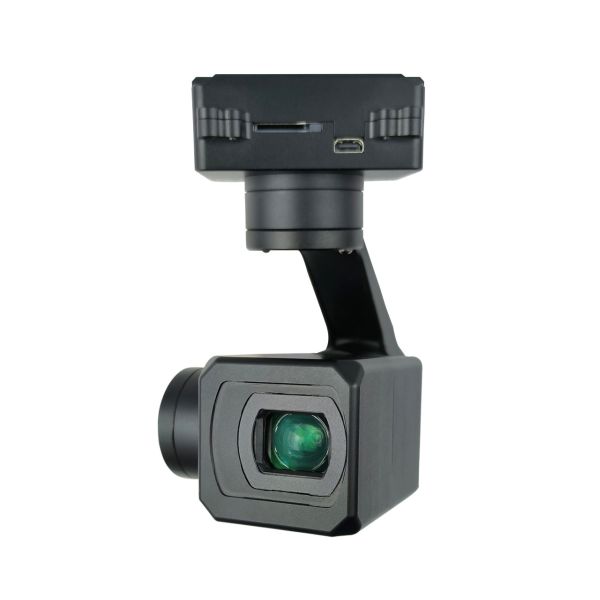

Monocular Camera 45x Hybrid Zoom Dual Output Small Gimbal
Product Overview
The DHU05S35 is a single zoom gimbal that integrates a 45x hybrid zoom camera with high-precision professional 3-axis stabilization PTZ. Featuring IP and HDMI dual output with IP control, it utilizes a high-precision encoder FOC control scheme PTZ system.
This compact and lightweight solution (210g) offers high stability and low power consumption. The visible light camera uses a 4 million pixel sensor and supports control via serial ports, S.BUS, and network connections. It also features local TF dual channel recording and photography capabilities.
Technical Specifications
AttributeValue
VoltageDC 12V-26.2V
Power ConsumptionPower Consumption
Roll angle action range-45°～ +45°
Pitch angle action range-45°～ +120°
Yaw angle action range-145°～+145°
Angle jitter in pitch and roll direction±0.02°
Horizontal angle jitter±0.03°
HDMI VideoMicro-D HDMI 1080P 60fps
Min tracking target size16*16 pixels
Max tracking target size256*256 pixels
Key Features
  • High speed focus tracking
  • AI Target Detection and Tracking
  • RTSP stream output
  • Integrated ground App
  • Lightweight design (210g)
Product Images
Monocular Camera with 45x Hybrid Zoom Dual Output and Lightweight Design for High-Precision Gimbal Stabilization Monocular Camera with 45x Hybrid Zoom Dual Output and Lightweight Design for High-Precision Gimbal Stabilization
Manufacturer Information
Monocular Camera with 45x Hybrid Zoom Dual Output and Lightweight Design for High-Precision Gimbal Stabilization
Frequently Asked Questions
Q1: Do you support OEM/ODM?
A1: Yes. We can print your logo on the product.
Q2: About samples.
A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.
Q3: What is the delivery time?
A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance.
Q4: What is the minimum order quantity?
A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.
Q5: What are your payment terms?
A5: L/C.TT100%.
Q6: Can you reduce the shipping cost?
A6: We always choose the cheapest and safest shipping option. While we have partnerships with shipping companies, we cannot control final costs.
Q7: Return policy.
A7: If you need to replace an item, you must contact us within 7 days of receipt. Returned items must be in original condition and you are responsible for return shipping costs.
