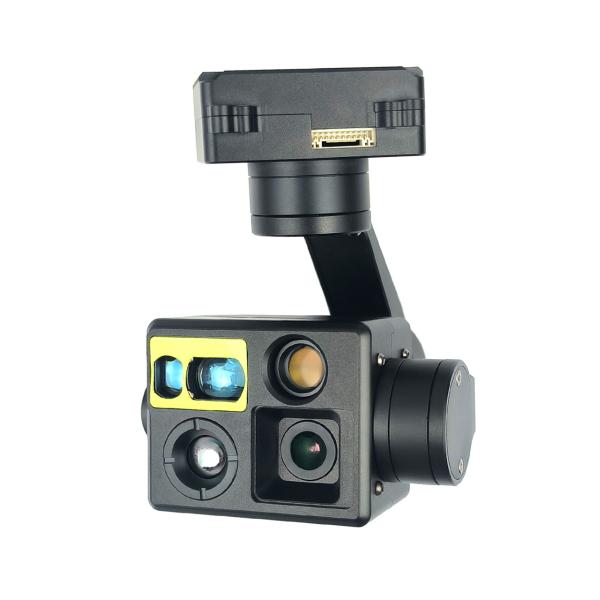

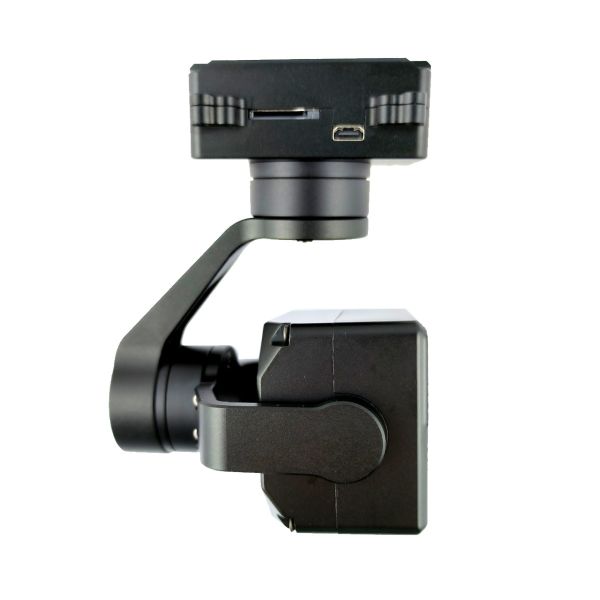

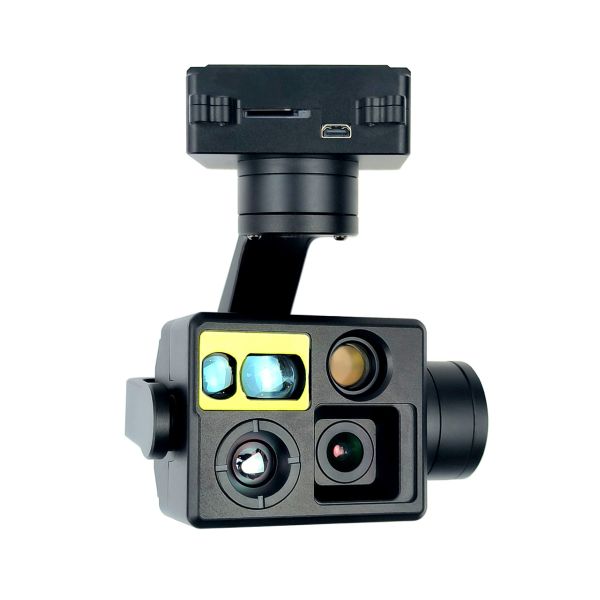

4K Daylight 9x Digital Zoom Dual Focus Thermal Imaging Camera with 1200m Laser Rangefinder for UAV Systems
4K Daylight 9x Digital Zoom Dual Focus Thermal Imaging Camera with 1200m Laser Rangefinder for UAV Systems
4K Daylight 9x Digital Zoom Dual Focus Thermal Imaging Camera with 1200m Laser Rangefinder for UAV Systems
4K Daylight 9x Digital Zoom Dual Focus Thermal Imaging Camera with 1200m Laser Rangefinder for UAV Systems
4K Daylight 9x Digital Zoom Dual Focus Thermal Imaging Camera with 1200m Laser Rangefinder for UAV Systems
4K Daylight 9x Digital Zoom Dual Focus Thermal Imaging Camera with 1200m Laser Rangefinder for UAV Systems
4K Daylight 9x Digital Zoom Dual Focus Thermal Imaging Camera with 1200m Laser Rangefinder for UAV Systems
4K Daylight 9x Digital Zoom Dual Focus Thermal Imaging Camera with 1200m Laser Rangefinder for UAV Systems
Specifications
Brand Name :
GS
Model Number :
KHDA609L12
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
6~8
Price :
negotiable
SENSOR pixel :
8 mega pixel
Visible light focal length :
25mm
Field of view (FOV) :
10.5°× 7.8°
Detector resolution :
640×512
Pixel pitch :
12μm
Wavelength range :
8～14μm
Thermal sensitivity NETD :
≤50mk@F1.0@25℃
Power supply :
DC11V-26.2V（3S-6S）
Power consumption :
Dynamic 6w
Weight :
240±10 grams
System boot preparation time :
20S
Size: :
120mm H:105mm
Description
4K Daylight 9x Digital Zoom Dual Focus Thermal Imaging Ranging

KHDA609L12 - This product is a four-light stabilized camera system integrating 4K daylight camera, 1080P daylight camera, 640×512 thermal imaging camera, and up to 1200m laser rangefinder with high-precision 3-axis stabilized gimbal. The camera system supports both IP and HDMI output.

This gimbal adopts high-precision encoder FOC control scheme, featuring high stability, small size, light weight, and low power consumption. The visible light camera uses wide dynamic CMOS sensor with 8 mega and 2 mega effective pixels. The system supports network RTSP picture-in-picture stream output, multiple picture-in-picture switching, multiple pseudo color displays, and global temperature measurement. Control modes include SBUS, UART, UDP, and PWM, supporting local TF card 2-way recording and photography. The focal length of the 640×512 thermal imaging lens is 9.1mm.

4K Daylight 9x Digital Zoom Dual Focus Thermal Imaging Camera with 1200m Laser Rangefinder for UAV Systems
Key Features
4K daylight + 9x digital zoom IP (RTSP)/HDMI output
1080P daylight + 9x digital zoom TF card 2-ways Recording & Photograph
640×512 thermal imaging sensor + 9x digital zoom Provide ground control software/App for video display and gimbal control
Up to 1200m laser range finder
Use and Operation
Preparation and Inspection Before Use
  • Check whether the hanging structure of the dual-optical gimbal is normal, with no obvious deformation or looseness
  • Check for dirt on the lens; clean with lens cloth if necessary
  • After installing the pod, verify mechanical installation is normal
  • Check electrical connections are normal
  • Verify imaging and functions are normal during ground testing
Safety Protection and Instructions

Avoid power supply voltage exceeding allowable range and using under environmental conditions that exceed normal working load.

Operating Procedures

After normal power-on, control pod functions through buttons or joysticks on the UAV handheld terminal.

Inspection and Recording

Record problems encountered during use and save corresponding image data.

Post-Use Procedures

After use, disconnect system power first, separate pod from fuselage in static-free environment, and store in dry, ventilated area. Place in box for long-term storage.

4K Daylight 9x Digital Zoom Dual Focus Thermal Imaging Camera with 1200m Laser Rangefinder for UAV Systems 4K Daylight 9x Digital Zoom Dual Focus Thermal Imaging Camera with 1200m Laser Rangefinder for UAV Systems 4K Daylight 9x Digital Zoom Dual Focus Thermal Imaging Camera with 1200m Laser Rangefinder for UAV Systems
Our Services
  • 1 Year Warranty - Buy with confidence
  • 14-day return policy for replacement or refund (contact us before returning)
  • Defective items within 3 months: replacement without extra charge or refund after receiving defective item
  • Defective items after 3 months: send back for replacement (customer pays extra shipping fee)
4K Daylight 9x Digital Zoom Dual Focus Thermal Imaging Camera with 1200m Laser Rangefinder for UAV Systems
Frequently Asked Questions
Q1: Do you support OEM/ODM?
A1: Yes. We can print your logo on the product.
Q2: About samples.
A2: Samples ready within 7 days, 10-20 days for OEM/ODM orders. Sample fee and shipping charged.
Q3: What is the delivery time?
A3: Regular orders ship within 15 days, OEM/ODM within 25-45 days (depending on quantity). Delays notified in advance.
Q4: What is the minimum order quantity?
A4: No MOQ for wholesale (1 piece accepted), including OEM/ODM.
Q5: What are your payment terms?
A5: L/C, TT 100%.
Q6: Can you reduce the shipping cost?
A6: We always choose cheapest, safest express. Cannot reduce costs further. Customers can choose their own shipping method.
Q7: Return policy.
A7: Contact within 7 days after receiving item for replacement. Returned items must be in original condition; customer pays additional shipping.
