10X Optical Zoom 256 Thermal Camera Gimbal with Dual Outputs for Drones and UAVs
10X Optical Zoom 256 Thermal Camera Gimbal with Dual Outputs for Drones and UAVs
10X Optical Zoom 256 Thermal Camera Gimbal with Dual Outputs for Drones and UAVs
10X Optical Zoom 256 Thermal Camera Gimbal with Dual Outputs for Drones and UAVs
10X Optical Zoom 256 Thermal Camera Gimbal with Dual Outputs for Drones and UAVs
10X Optical Zoom 256 Thermal Camera Gimbal with Dual Outputs for Drones and UAVs
Specifications
Brand Name :
GS
Model Number :
KHY10G207A
Place of Origin :
Made in China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
6-8
Voltage :
DC 12V-26.2V
Power Consumption :
Dynamic 6.5W
Roll Angle :
-45° ～ +45°
Pitch Angle :
-45° ～ +100°
Course Angle :
-280° ～ +280°
Support Mode :
1080P 30fps
Weight :
470±20g
DPI :
256×192 pixel
Description
10X Optical Zoom + 256 Thermal Camera Dual Outputs Mini
Product Description

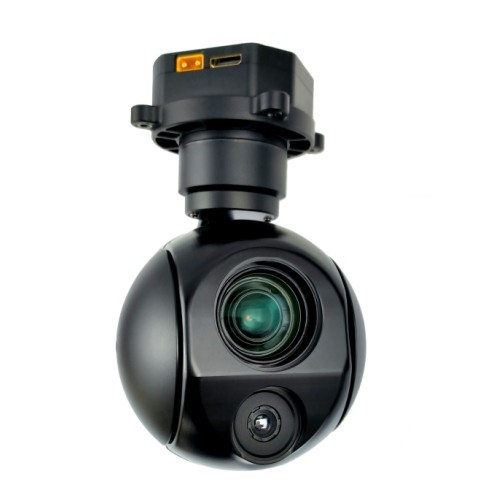

The KHY10G207A is a 90X mixed zoom camera gimbal integrated with a 7mm lens 256*192 vanadium oxide infrared thermal imager and high-precision three-axis stability. It supports IP and HDMI output, offering high stability, compact size, light weight and low power consumption. The EO camera uses a wide dynamic sensor with 2 mega effective pixels, featuring S.BUS and IP control, with backup TF card storage. It also supports various PIP modes, pseudo color patterns and global temperature measurement.
Product Specifications
Attribute Value
Voltage DC 12V-26.2V
Power Consumption Dynamic 6.5W
Roll Angle -45° ～ +45°
Pitch Angle -45° ～ +100°
Course Angle -280° ～ +280°
Support Mode 1080P 30fps
Weight 470±20g
DPI 256*192 pixel
Key Features
  • 90X Mixed Zoom
  • 256*192 Thermal Imagery
  • 4 PIP Modes
  • 10 Pseudo Color Patterns
  • High Precision and Coordination Control Algorithm
  • TF Card Supports Dual Recording; Internet Read and Write
Technical Specifications
  • 3-Axis Stabilized PTZ with built-in damping
  • 90X Hybrid zoom
  • 256*192 Thermal Imaging
  • TF card video recording and photography
  • Integrated ground station software
  • Display and control IP / HDMI output
Product Structure
10X Optical Zoom 256 Thermal Camera Gimbal with Dual Outputs for Drones and UAVs
Product Drawing
10X Optical Zoom 256 Thermal Camera Gimbal with Dual Outputs for Drones and UAVs
Our Services
  • 1 Year Warranty included
  • 14-day return policy for replacements or refunds
  • Free replacement for defective items within 3 months
  • Continued support after 3 months (shipping fee applies)
10X Optical Zoom 256 Thermal Camera Gimbal with Dual Outputs for Drones and UAVs
Frequently Asked Questions
Q1: Do you support OEM/ODM?
A1: Yes. We can print your logo on the product.
Q2: About samples.
A2: Samples ready in 7 days (10-20 days for OEM/ODM). Sample fee and shipping charged.
Q3: What is the delivery time?
A3: Regular orders ship in 15 days, OEM/ODM in 25-45 days.
Q4: What is the minimum order quantity?
A4: No MOQ - wholesale orders accepted from 1 piece.
Q5: What are your payment terms?
A5: L/C.TT100%.
Q6: Can you reduce the shipping cost?
A6: We always choose the cheapest and safest shipping option available.
Q7: Return policy.
A7: Contact us within 7 days for replacements. Returned items must be in original condition.
