Modular Fixed Wing Vertical Takeoff Drone Vtol Fixed Wing Uav With Gasoline Engine IPX4
Modular Fixed Wing Vertical Takeoff Drone Vtol Fixed Wing Uav With Gasoline Engine IPX4
Modular Fixed Wing Vertical Takeoff Drone Vtol Fixed Wing Uav With Gasoline Engine IPX4
Modular Fixed Wing Vertical Takeoff Drone Vtol Fixed Wing Uav With Gasoline Engine IPX4
Modular Fixed Wing Vertical Takeoff Drone Vtol Fixed Wing Uav With Gasoline Engine IPX4
Modular Fixed Wing Vertical Takeoff Drone Vtol Fixed Wing Uav With Gasoline Engine IPX4
Specifications
Brand Name :
GS
MOQ :
1
Price :
1$,Negotiable
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
6~8
Length :
2433 mm
Height :
391 mm
wingspan :
2140mm
Airframe material :
Aviation carbon fiber composites
Engine :
gasoline engine
Payload :
40 kg
Take-off mass :
140 kg
Levelspeed :
40-65 m/s
cruising speed :
50 m/s
Diving speed :
58 m/s
Fuel consumption :
16L/h
Max range :
675 km
Altitude :
4000 m
Temperature :
-20°C-45°C
wind resistance :
take-offlevel5/cruisinglevel6
Protection degree :
IPX4
Description

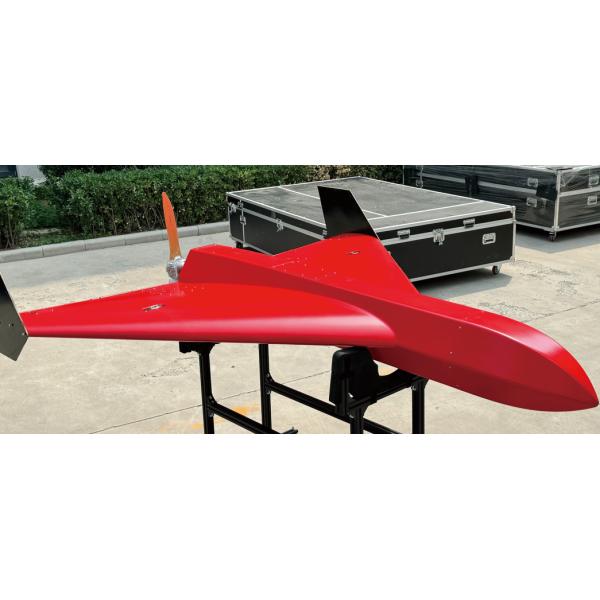

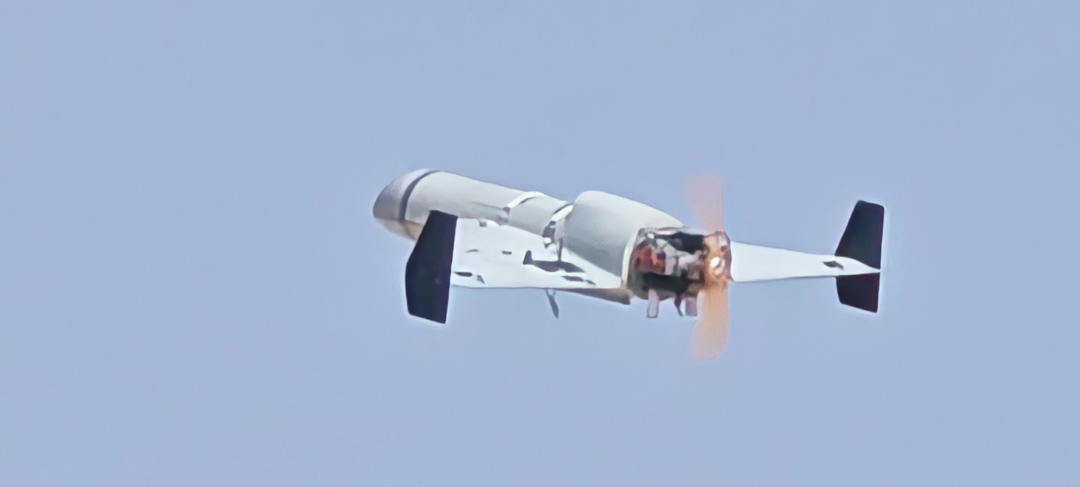

C. X Flight Platform

C.X is a tailless delta wing layout large-load cruise flight platform, the whole fuselage is madeof aviation carbon fiber composite materials, high structural strength and light weight, suitablefor a variety of application scenarios such as harsh environment, large task load weight, etc.The tailless delta wing layout makes the fuselage structure simpler, convenient and fast, andeasier to maintain, and the modular design makes the Sidewinder transition more convenientand versatile. The power unit and fuel storage are located in the middle and rear of the fuselage, leaving more space at the front of the fuselage to deploy the load equipment. lt has a variety of take-off methods such as sports car launch and rocket launch.

Modular Fixed Wing Vertical Takeoff Drone Vtol Fixed Wing Uav With Gasoline Engine IPX4
Modular Fixed Wing Vertical Takeoff Drone Vtol Fixed Wing Uav With Gasoline Engine IPX4
Modular Fixed Wing Vertical Takeoff Drone Vtol Fixed Wing Uav With Gasoline Engine IPX4

Key Features

  • Tailless Delta-Wing Layout – Simplified structure for easy maintenance and rapid deployment
  • Full Carbon Fiber Body – Lightweight and strong, suitable for extreme environments
  • Fuel-Powered System – Extended flight endurance with efficient fuel distribution
  • Large Payload Capacity – Ideal for surveillance, mapping, and cargo delivery missions
  • Flexible Launch Options – Supports catapult and rocket-assisted takeoff

Specifications

Wingspan 2140 mm
Length 2433mm
Maximum Takeoff Weight 140kg
Material Aerospace carbon fiber composite
Launch Methods Catapult launch, rocket-assisted takeoff
Protection degree IPX4

FAQ

What is the main advantage of the tailless delta-wing layout?

It simplifies the airframe structure, making the drone easier to deploy, maintain, and transport while improving aerodynamic performance.

What types of missions is the C.X platform suitable for?

It is ideal for long-endurance tasks like aerial surveillance, mapping, disaster response, and heavy-load delivery.

Is the drone weather-resistant?

Yes, it features an IPX4 protection level and a full carbon fiber body, making it suitable for operation in challenging conditions.

What is the maximum payload capacity?

The platform can carry payloads between 30 to 40 kilograms, depending on mission configuration.
