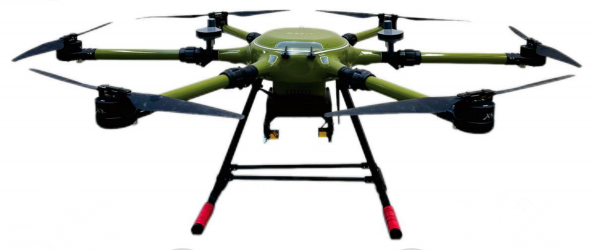

Standard Multi Blade Drone Multirotor Drone Professional For Field Inspection
Standard Multi Blade Drone Multirotor Drone Professional For Field Inspection
Specifications
Brand Name :
GS
Model Number :
M16
MOQ :
1
Price :
1$,Negotiable
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
6~8
Body material :
Toray 3K carbon fiber
Production process :
high temperature and high pressure molding
Casing thickness :
conventional 0.6mm
Case weight :
5KG
Chassis + power equipment weight :
12.2KG
Equivalent wheelbase :
1670mm
Number of rotors :
6
Expansion size :
1760mm*1530mm*700mm
Folding size :
760mm*760mm*640mm
Standard size of battery compartment :
250mm*180mm*100mm
Recommended load :
15KG
No-load life :
> 50min
Load 10KG endurance: :
> 30min
Control distance :
30KM (hand-held ground station control)
Adaptive motor :
Haoying X8 power set
Suitable blade :
30 inches
Take-off and landing mode :
vertical take-off and landing
Operating temperature :
-20℃~60℃
Flight speed :
15 m/s
Description
Toray 3K Carbon Fiber Fit Blade Multirotors High Temperature And High Pressure Forming
Product Specifications
Attribute Value
Body material Toray 3K carbon fiber
Production process High temperature and high pressure molding
Casing thickness Conventional 0.6mm
Case weight 5KG
Chassis + power equipment weight 12.2KG
Equivalent wheelbase 1670mm
Number of rotors 6
Expansion size 1760mm*1530mm*700mm
Folding size 760mm*760mm*640mm
Standard size of battery compartment 250mm*180mm*100mm
Recommended load 15KG
No-load life > 50min
Load 10KG endurance > 30min
Control distance 30KM (hand-held ground station control)
Adaptive motor Haoying X8 power set
Suitable blade 30 inches
Take-off and landing mode Vertical take-off and landing
Operating temperature -20℃~60℃
Flight speed 15 m/s
Product Description

Our Toray 3K carbon fiber fit blade multirotors are manufactured using advanced high temperature and high pressure forming techniques, resulting in exceptional strength-to-weight ratio and durability.

Application Fields
  • Law enforcement evidence collection
  • Security patrol
  • Traffic control
  • Film and television shooting
  • Infrared inspection
  • Hydraulic survey
  • Flood control command
  • Field inspection
  • Construction surveying and mapping
  • Wildlife detection
  • Forest fire detection
  • Production safety inspection
Standard Multi Blade Drone Multirotor Drone Professional For Field Inspection
Manufacturing Process

The high temperature and high pressure forming process involves several precise steps:

  • Prepreg lay-up: Toray 3K carbon fiber prepreg boards are layered according to specifications for optimal stiffness, aerodynamics and strength.
  • Forming: The prepreg layer is placed into precision molds designed for multiple rotor blades with exact aerodynamic profiles.
  • Autoclave curing: Molds undergo high pressure and heat treatment in an autoclave to ensure complete resin curing and fiber bonding.
  • Finishing: Blades receive final dressing, polishing, and protective coatings to withstand environmental conditions and high-speed flight stresses.
Standard Multi Blade Drone Multirotor Drone Professional For Field Inspection
Our Services
  • 1 Year Warranty included for all purchases
  • 14-day return policy for unsatisfied customers (contact required before return)
  • 3-month replacement warranty for defective items (no extra charge)
  • Post-warranty replacement service available (customer covers shipping)
Standard Multi Blade Drone Multirotor Drone Professional For Field Inspection
Frequently Asked Questions
Q1: Do you support OEM/ODM?
A1: Yes. We can print your logo on the product.
Q2: About samples.
A2: Samples typically ready within 7 days (10-20 days for OEM/ODM). Sample fee and shipping charges apply.
Q3: What is the delivery time?
A3: Regular orders ship within 15 days; OEM/ODM within 25-45 days (quantity dependent). We notify of any delays.
Q4: What is the minimum order quantity?
A4: No MOQ - wholesale orders accepted from 1 piece, including OEM/ODM.
Q5: What are your payment terms?
A5: We accept L/C or 100% TT payments.
Q6: Can you reduce the shipping cost?
A6: We always select the most economical and secure shipping option. Customers may arrange their own shipping if preferred.
Q7: Return policy.
A7: Replacement requests must be made within 7 days of receipt. Items must be in original condition with customer covering return shipping.
