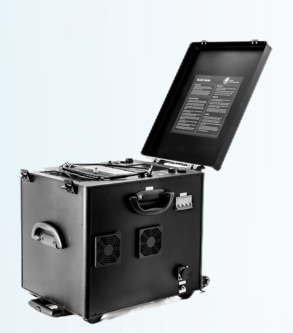

MJ100 UAV Tethered Ground Station
Featuring a compact enclosure design with external dimensions of 60.5×45×48 cm and a total weight of 45 kg, it supports maximum tethered flight altitudes up to 300 meters. Its applications span aerial surveillance, emergency response, communication relay, and security patrol operations.
Key Features
- Automatic voltage compensation, automatic overcurrent protection
- Anti -inverted electric momentum for safe landing
- Isolation design to prevent electric shock
- Low -current alarm for safe flight
- Base station with 485 communication to display datas in real time
| size | 60.5x45x48cm |
| weight | 45kg |
| input | 380V AC 50Hz/60Hz |
| output | 750V DC / 10KW |
| height | max.300m |
FAQ
Q1:What is the rated input voltage for the MJ100?
The MJ100 supports 380V AC input at 50Hz/60Hz frequency.
Q2:What is the rated output power of this ground station?
It can stably output 750V DC with a maximum power of 10kW.
Q3:What is the maximum altitude a drone can reach when using the MJ100?
The maximum tethered flight altitude is 300 meters.
Q4: What are the overall dimensions of the ground station?
The external dimensions are 60.5 × 45 × 48 cm.
Q5:What application scenarios is the MJ100 suitable for?
It is widely used in security surveillance, emergency rescue, aerial communication relay, and long-endurance reconnaissance missions.
