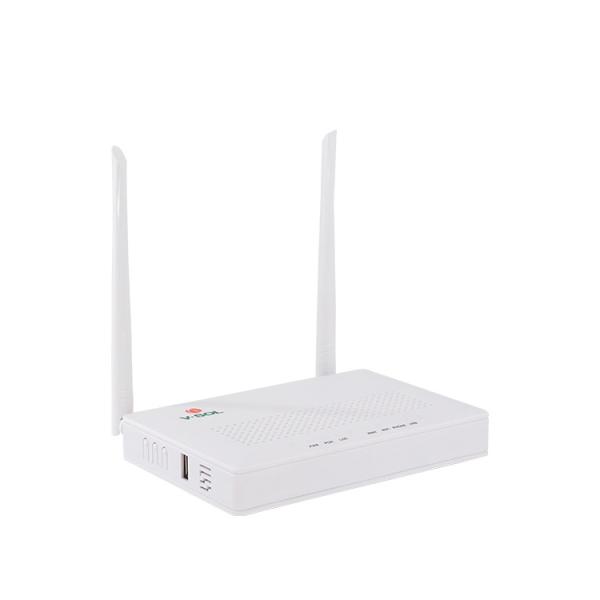

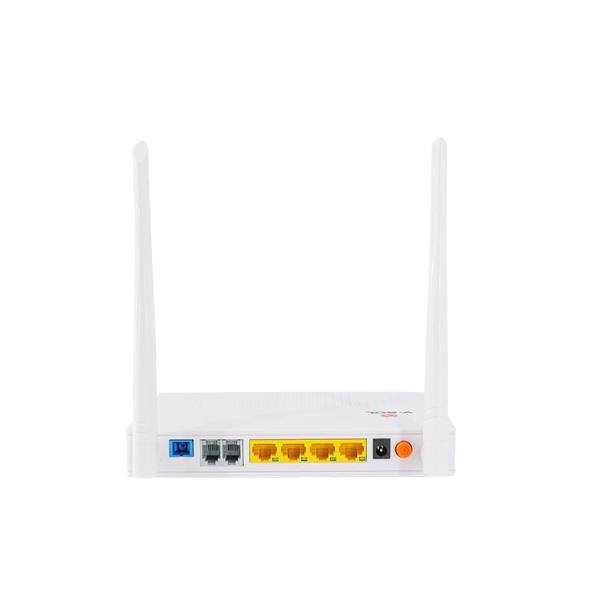

1GE EPON GPON Dual Mode ONU 3FE 2POTS HGU 2.4G Wireless 300Mbps
1GE EPON GPON Dual Mode ONU 3FE 2POTS HGU 2.4G Wireless 300Mbps
1GE EPON GPON Dual Mode ONU 3FE 2POTS HGU 2.4G Wireless 300Mbps
1GE EPON GPON Dual Mode ONU 3FE 2POTS HGU 2.4G Wireless 300Mbps
Specifications
Brand Name :
V-solution
Model Number :
HG326N
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
1000 pcs/day
Delivery Time :
3-5 days
Packaging Details :
Carton
Application :
Enterprise, Home office, FTTx
Product :
Dual mode XPON with 2POTS + WiFi + USB
Telephone :
1×FXS, RJ11 connector
VoIP :
SIP / IMS
WLAN :
2.4GHz, up to 300Mbps
Net weight :
0.34Kg
Description

Dual Mode ONU 1GE + 3FE + 2POTS + WiFi + USB HGU 2.4G Wireless 300Mbps

Product Description

HG326N can ideal for usage of telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband access, SOHO broadband access, video surveillance and other requirements by GPON/EPON Gigabit Ethernet products. The HG326N is based on the innovative Gigabit GPON/EPON technology, highly reliable and easy to deploy, with guaranteed QoS for different services. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

HG326N G/EPON is a GPON ONT device which support 1x1000Mbps and 3x10/100Mbps fast ethernet ports, 2x POTS voice ports and WiFi access for laptop. It can also be applied to a wide temperature environment, and also built-in a powerful firewall in it.

1GE EPON GPON Dual Mode ONU 3FE 2POTS HGU 2.4G Wireless 300Mbps

GPON/EPON 1GE+3FE+2POTS+WiFi+USB ONU

1GE EPON GPON Dual Mode ONU 3FE 2POTS HGU 2.4G Wireless 300Mbps

Application

SMEs, Enterprise, FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance

1GE EPON GPON Dual Mode ONU 3FE 2POTS HGU 2.4G Wireless 300Mbps

Indicators

LED Mark Status Description
Power PWR On The device is powered up.
Off The device is powered down.
Registration PON On The device is registered to the GPON system.
Off Device is not registered to the GPON system.
Blink Device is registering.
Optical signal LOS Blink Device does not receive optical signals.
Off Device has received optical signals.
WAN WAN On WAN is effective.
Off WAN is ineffective.
POTS FXS On Device has registered to the soft-switch, but without ongoing data transmission.
Off Device is power off or not registered to the soft-switch.
Blink Phone hooks off or the port is with ongoing data transmission.
Ethernet

ETH1~

ETH4

 On Port is connected properly.
Off Port connection exception or not connected.
Blink Port is sending or/and receiving data.
Pair WPS On WPS client is connected. ( LED turn off after 5 minutes of successful connection)
Off Does not use WPS or WPS client is connected.( LED turn off after 5 minutes of successful connection)
Blink WPS client is connecting.

Technical item HG326N
1GE+3FE+2POTS+WIFI4
PON interface

1 G/EPON port(EPON PX20+ and GPON Class B+)

Wavelength:Tx1310nm,Rx 1490nm

SC/UPC connector

Receiving saturation:≥-8dBm

Receiving sensitivity: ≤-28dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM
LAN interface 4×10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless

Compliant with IEEE802.11b/g/n

2.4GHz Operating frequency: 2.400-2.483GHz

Support MIMO, 4T4R,5dBi external antenna, rate up to 1.167Gbps

Support: multiple SSID

TX power: 11n--22dBm/11ac--24dBm
POTS interface

1×FXS, RJ11 connector

Support: G.711/G.723/G.726/G.729 codec

Support: T.30/T.38/G.711 Fax mode, DTMF Relay

Line testing according to GR-909
LED 11, For Status of PWR,PON ,LOS,WAN,WiFi,FXS,ETH1~4,WPS.
Operating condition

Temperature: 0℃～+50℃

Humidity: 5%～90%(non-condensing)

Storing

condition

Temperature : -30℃～+75℃

Humidity :5%～90%(non-condensing)

Order Information

Product model Product specification Chipset RAM
HG326N 1xG/EPON+1GE+3FE+2xPOTS+WiFi+USB Realtek 128MB
