For BBS-119.1° Satellite Receivers: C-Band LNB with 4.5-4.8GHz, 0.7dB NF, 58dB Gain
For BBS-119.1° Satellite Receivers: C-Band LNB with 4.5-4.8GHz, 0.7dB NF, 58dB Gain
Specifications
Brand Name :
SETON
Model Number :
ST-C11B
Certification :
CE, ISO, RoHS
Place of Origin :
CHINA
MOQ :
1000pcs
Payment Terms :
T/T,Western Union
Supply Ability :
15 million pieces
Delivery Time :
30-35 days
Packaging Details :
CARTON
Input Frequency Range :
4.5GHz ~ 4.8GHz
Output Frequency Range :
1150MHz ~ 1450MHz
LO Frequency :
5.95GHz
Noise Figure :
0.7dB(Typ.)
Conversion Gain :
58dB (Min.)
Description

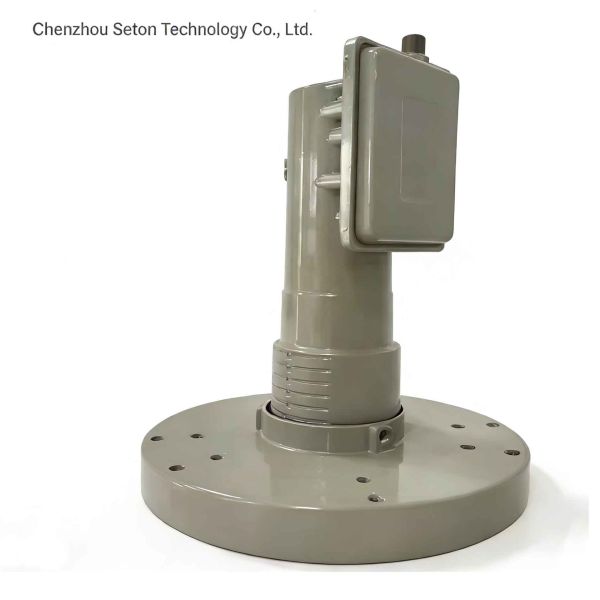

C-Band Single LNB 4.5~4.8GHz ST-C11B
Receiver BBS-119.1°
Patent No: ZL 2020 3 0695797.8
ZL 2020 3 0696201.6
Technical Specifications
Input Frequency Range 4.5GHz ~ 4.8GHz
Output Frequency Range 1150MHz ~ 1450MHz
LO Frequency 5.95GHz
Noise Figure 0.7dB(Typ.)
LO Initial Accuracy ±0.25MHz
LO Temperature Drift(-30~+70℃) ±0.50MHz
LO Phase Noise @1 KHz -65dBc/Hz
LO Phase Noise @ 10 KHz -85dBc/Hz
LO Phase Noise @100 KHz -90dBc/Hz
Conversion Gain 58dB (Min.)
Gain Flatness ±3.0dB (Max.)
Gain Variation ±0.75dB/36MHz
Image-Rejection -40dB (Min.)
O/P VSWR 2.0:1
Control Signals (V) 10.0~14.0V
Control Signals (H) 16.0~20.0V
DC-Power 11~20*130Vdc*mA(Max.)
Output Impedance 75Ω (F-Type)
Working Temperature -30~+70℃
Frequently Asked Questions
What is an LNB?

An LNB (Low Noise Block, also called LNC - Low Noise Converter) is used for communications satellite reception. The LNB is typically mounted on the satellite dish to collect and amplify the satellite signal, then downconvert it to a lower, more manageable IF frequency that can be carried over standard coaxial cabling to the receiver. LNBs are divided into C-Band, Ku-Band, and Ka-Band according to frequency.

What is a feedhorn?

The feedhorn is part of the LNB that works like a directional horn. It captures signals reflected from the dish and shields the LNB from extraneous radiation. These collected signals are then passed to the electronics within the LNB. Feedhorns are divided into orthogonal feed, offset feed, and elliptical feed types.

What is a Monoblock LNB?

This design consists of two independent LNBs in a single housing, allowing reception from two different satellites at slightly different orbital positions from a single dish. Switching between satellites is achieved via DiSEqC signals. Monoblock LNBs are available mostly for satellites with fixed 2°/3°/4.3° or 6° spacing and cover Ku band with single, twin, and quad outputs.

What is a one cable solution LNB?

This LNB can connect multiple set-top boxes (STBs) using one RG6 cable, providing an energy-saving, multi-user receiving mode. Sometimes called a stack LNB.

What does Unicable mean?

Unicable is a method for distributing satellite television to several receivers (currently up to 32 according to standards EN 50494 & EN 50607).

Unicable 1: SCR LNB that only achieves static working model.
Unicable 2: Achieves both static and dynamic working models. The LNB can be designed for Universal+Unicable input separately (e.g., 1 output Universal + 1 output Unicable, or 1 output Universal + 3 output Unicable).
