Professional Digital Satellite Receiver - DVB-S2X, DVB-S2 & DVB-S2 Compatible TV Tuner
Professional Digital Satellite Receiver - DVB-S2X, DVB-S2 & DVB-S2 Compatible TV Tuner
Professional Digital Satellite Receiver - DVB-S2X, DVB-S2 & DVB-S2 Compatible TV Tuner
Professional Digital Satellite Receiver - DVB-S2X, DVB-S2 & DVB-S2 Compatible TV Tuner
Specifications
Brand Name :
SETON
Place of Origin :
CHINA
Payment Terms :
T/T,Western Union
Packaging Details :
CARTON
Delivery Time :
30-35 days
MOQ :
1000pcs
Main Processor :
Montage M88CS8001B-S
Flash Memory :
4MB
SDRAM :
64MB
Output format :
1080P, 1080i, 720P and 576P
Description
Product Specification
Specification System and Memory
  • Fully comply with DVB-S/S2/S2X, EN 300 421/EN 302 307-1/EN 302 307-2 Standard
  • Support EPG, display present / next TV Program / 7 days EPG
  • Support up to DiSEqC 1.0 / 1.1 / 1.2 & USALS
  • PAL & NTSC Auto Switch
  • Parent control
  • Support Favorites Group
  • Auto scan / TP scan / Blind scan
  • Support Teletext / Subtitle
  • Selectable output for 1080P, 1080i, 720P and 576P format
  • User-friendly remote control with colored function buttons
  • USB Multimedia files playback&PVR
  • Unicable Support
  • Support Cas(cardless)
  • USB Wifi, YouTube(optional)
  • Main Processor: Montage M88CS8001B-S
  • Flash Memory: 4MB
  • SDRAM: 64MB

Professional Digital Satellite Receiver - DVB-S2X, DVB-S2 & DVB-S2 Compatible TV Tuner
Video Decoder

Video:

Multi-standard video decoding:

  • MPEG-2 MP@ML/HL
  • H.264 BP(with no ASO/FMO),MP& HP@ L3/L4.1
  • AVS Jizhun profile @ L6.0/L4.0
  • AVS Broadcast profile @ L6.O/L4.0
  • MPEG-4 SP Profile, Advanced Simple Profile@Level 5 without GMC/Data Partitioning/Reversible VLC
  • VC1 SP@ML,MP@HL,AP@L0~3
  • H.263 baseline profile
  • JPEG decoder engine

Audio:

  • MPEG-1/2 Layer I/II/III
  • Dolby AC3IAC3+(optional)
  • DRA2 CH/5.1 CH(optional)
  • Video resolution: 1080P, 1080i, 720P and 576P
  • Aspect Ratio: 4:3, 16:9

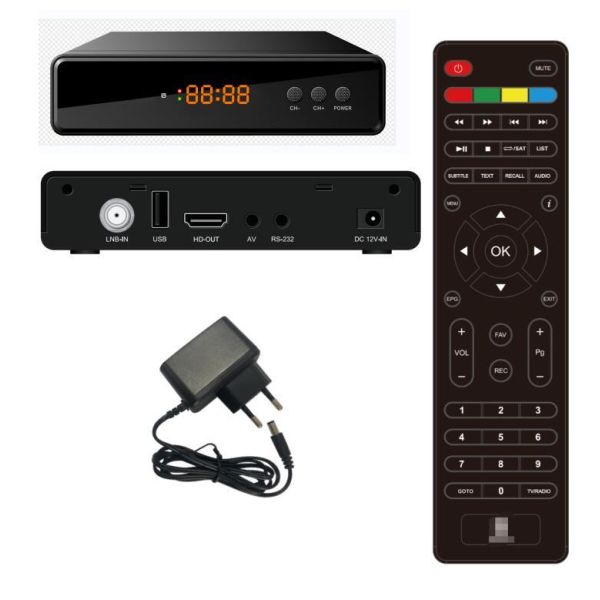

Connector Tuner
  • LNB IN (F Type)*1
  • USB 2.0 * 2
  • AV Socket *1
  • RS 232
  • HDMI JACK*1
  • DC IN (12V)*1
  • Front End: DVB-S2 M88TS6011
  • Input Frequency Range: 950 ~ 2150MHz
  • RF input Signal Level: -80 ~ -25 dBM

General Data

Demodulator

Input Voltage range: 100~240V 50~60Hz

Power Consumption:

Max 12W (Working mode)

Max 0.5W (Standby mode)
  • Demodulation: QPSK, 8PSK, 16APSK & 32APSK
  • FEC Code rate: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10


Professional Digital Satellite Receiver - DVB-S2X, DVB-S2 & DVB-S2 Compatible TV Tuner
