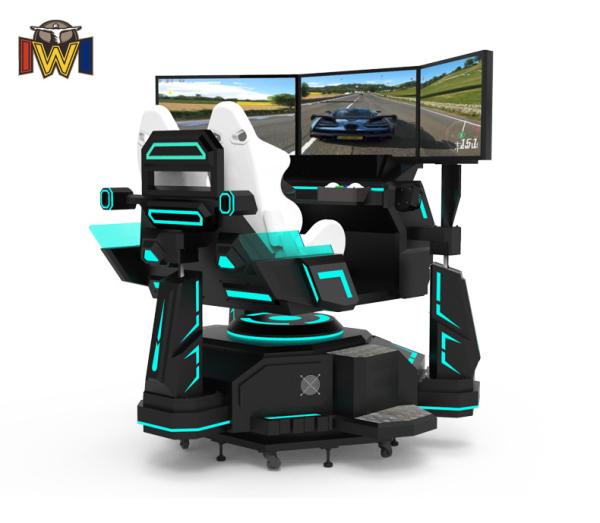

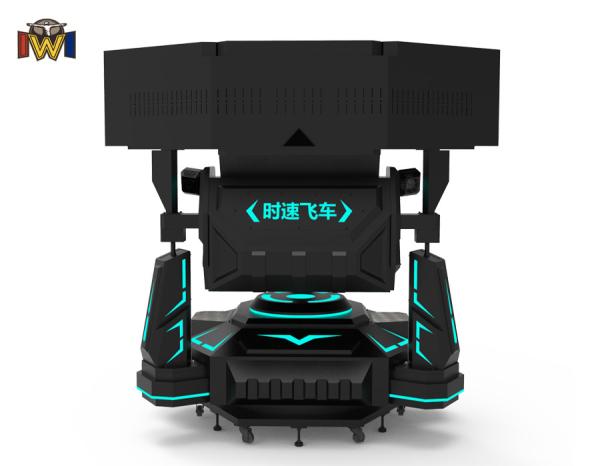

Six Axis VR Racing Simulator Dynamic Triple Screen Racing Setup
Six Axis VR Racing Simulator Dynamic Triple Screen Racing Setup
Six Axis VR Racing Simulator Dynamic Triple Screen Racing Setup
Six Axis VR Racing Simulator Dynamic Triple Screen Racing Setup
Six Axis VR Racing Simulator Dynamic Triple Screen Racing Setup
Six Axis VR Racing Simulator Dynamic Triple Screen Racing Setup
Six Axis VR Racing Simulator Dynamic Triple Screen Racing Setup
Six Axis VR Racing Simulator Dynamic Triple Screen Racing Setup
Six Axis VR Racing Simulator Dynamic Triple Screen Racing Setup
Six Axis VR Racing Simulator Dynamic Triple Screen Racing Setup
Specifications
Brand Name :
IWI
Model Number :
IWI-27-29
Certification :
CE Rohs
Place of Origin :
GUANGZHOU CHINA
MOQ :
1 UNIT
Price :
8280 USDT
Payment Terms :
T/T; L/C,CRYPTO
Supply Ability :
500 UNITS MONTHLY
Delivery Time :
10-25 WORK DAYS
Packaging Details :
WOODEN BOX
Description



Six Axis VR Racing Simulator Dynamic Triple Screen Racing Setup


Three Screen Racing Nake Eye



1, Specification
Parameter items Three-axis rotating version Six axis dynamic version
Overall dimensions 2.3L × 2.3W × 2.35H M 2.3L × 2.3W × 2.35H (commercial model)
Total weight 680kg 900kg
Rated power 1000W 1500W
Floor Area ≤9㎡ ≥ 12 ㎡ (including safety zone)
Number of dynamic feedback axes Three axis rotation (360 ° horizontal rotation) Six axis (12 posture simulations)

2, Display system
Components Parameter details
Screen layout Triple screen seamless splicing (horizontal field of view 130 ° -178 °)
Single screen resolution 4K Ultra HD (3840 × 2160)
Refresh rate 90Hz – 120Hz (dynamic resolution optimized anti ghosting)
Auxiliary display 40 inch external battle screen (standard on some models)

3, Control and motion sensing system
Module Technical characteristics
Steering wheel Industrial grade force feedback (linear damping+vehicle adaptive adjustment)
Pedal group Pressure sensing type (supporting clutch/brake/throttle feedback)
Dynamic feedback Seat vibration+six axis platform simulation of bumps/roll/weightlessness
Environmental simulation Temperature controlled wind system+track fragrance release (desert/snow)

4, Content and Software Ecology
Category Parameter details
Game content 87 professional tracks+200+model library (supporting modification)
Scene system 7 dynamic weather conditions (sunny/rainy/snowy/nighttime)+visibility adjustment
Featured Features Toxic driving simulation (visual delay+dizziness light effect+handling interference)
Operating System Windows 10/11 (requires host driver)

5, Supporting hardware requirements
Equipment type Minimum configuration Suggested configuration
Host graphics card GTX 1650 4GB RTX 2060 8GB
Processor i5-4590 i5-9400F
Memory 8GB DDR4 16GB DDR4
Note: The three-axis version focuses on entertainment experience (such as 360 ° rotation), while the six axis version specializes in professional training (such as 12 dynamic feedback accuracies)


3-Screen, 3-Axis Car Racing Simulator is a high-end racing sim setup designed to offer ultra-realistic immersion, ideal for both professional racing training and premium entertainment centers. It uses three monitors for a panoramic field of view and a 3-axis motion platform to simulate real car movements.

Components Breakdown

Triple-Screen Display

Purpose: 180° wide view of the road and mirrors (without turning head)

Hardware: 3x 27–32” gaming monitors (144Hz+, low latency)

Mounting: Curved or flat monitor stand, often part of the sim rig

�� 3-Axis Motion Platform

Axes Simulated:

Pitch (forward/back tilt) – acceleration/braking

Roll (left/right tilt) – cornering forces

Yaw (rotation) – drifting, oversteer, slide effects

Actuators: Electric or hydraulic

Controls

Steering Wheel: Force feedback system (e.g., Fanatec DD2, Simucube, Logitech G923)

Pedals: Load cell or hydraulic (for brake realism)

Shifter + Handbrake: Optional for rally or drift modes

Racing Cockpit

Material: Aluminum extrusion, steel frame

Adjustability: Pedal plate, seat position, wheel mount

Seat: Real bucket racing seat (with harness if desired)

Use Cases

Professional driver training

Racing schools

Arcades or simulation centers

Luxury home gaming rooms

Brand experiences at auto shows



✅ Benefits

High immersion without a VR headset (no motion sickness)

Precise visual-spatial alignment of real driving perspective

Physical feedback of real G-force effects

Expandable: Add VR headset, wind simulator, 6DOF motion, telemetry overlays
