Air Cooling ESS Integrated Energy Storage System VP 145.08KWH Battery Pack Cabinet
Air Cooling ESS Integrated Energy Storage System VP 145.08KWH Battery Pack Cabinet
Air Cooling ESS Integrated Energy Storage System VP 145.08KWH Battery Pack Cabinet
Air Cooling ESS Integrated Energy Storage System VP 145.08KWH Battery Pack Cabinet
Air Cooling ESS Integrated Energy Storage System VP 145.08KWH Battery Pack Cabinet
Air Cooling ESS Integrated Energy Storage System VP 145.08KWH Battery Pack Cabinet
Specifications
Brand Name :
VP
Model Number :
145.08KWH
Certification :
MSDS、CE、UN38.3、ROHS
Place of Origin :
China
Price :
Reconsideration
Payment Terms :
L/C,D/P,T/T,Western Union,MoneyGram
Product Name :
Solar Backup Stackable All In One ESS
Nominal Energy :
145.08kWh
Fire Protection System :
Aerosol
Protection Level :
IP54
Starting Voltage :
518.4V
Cooling Method :
Air Cooling
Relative Humidity :
Less than 95% ( No Condensation)
Storage Temperature Range :
-20~45°C
Description

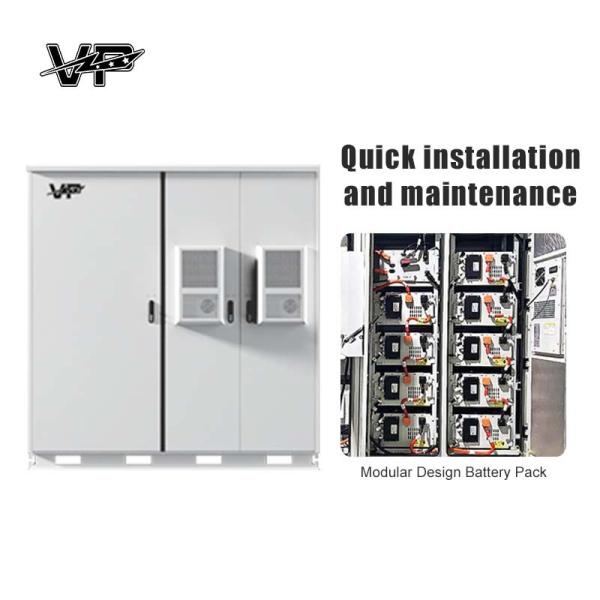

Air Cooling ESS Integrated Energy Storage System 145.08KWH Battery Pack Cabinet
Product Overview
  • Standard Cabinet Design
  • Cycle Life ≥6000 Times
  • IP54 Certified Enclosure (dust/splashing water protection)
  • Intelligent Speed Regulating Fan
  • Peak Shaving And Valley Filling capability
Technical Specifications
Attribute Value
Product Name Solar Backup Stackable All In One ESS
Nominal Energy 145.08kWh
Fire Protection System Aerosol
Protection Level IP54
Starting Voltage 518.4V
Cooling Method Air Cooling
Relative Humidity Less than 95% (No Condensation)
Storage Temperature Range -20~45°C
Capacity 145.08KWH
Voltage Range 405V~591.3V
Rated Power 50KW
Input/Output Voltage 3L/N/PE230/400VA.C
Input/Output Frequency 50/60HZ
Operating Humidity Range ≤95% (NO CONDENSATION)
Operating Temperature Range -20~45℃
Size 1950*1000*1845MM
Weight 2200KG
IP Rating IP54
Communication CAN/RS485
Nominal Voltage 518.4V
Rated Capacity 280AH
Maximum Charging Current 250A
Maximum Discharge Current 250A
Product Description
The 145.08KWH / 280AH standard cabinet is our highly recommended product, delivering sustained high-energy extended charge/discharge capabilities to meet 24/7 power demands for industrial scenarios. Our battery systems automatically shift energy usage from peak-rate hours to off-peak periods, featuring IP54 protection (-20°C to 45°C operation). CE / RoHS / UN38.3 / MSDS certifications ensure full international safety compliance for demanding commercial and industrial applications.
Important Notices
  1. Inspect for physical damage and abnormal odors before use.
  2. Unauthorized parameter modification is strictly prohibited.
  3. Reverse polarity is strictly prohibited.
  4. Disconnect all circuit breakers during long-term storage.
  5. Do not open the battery compartment door without authorization.
Applications
Widely used in various scenarios including smart parks, industrial parks, and other electricity-intensive areas. Ideal for regions with significant daily load fluctuations, independent transformers, and substantial price differences between peak and off-peak electricity.
Air Cooling ESS Integrated Energy Storage System VP 145.08KWH Battery Pack Cabinet
Frequently Asked Questions
Q1: Who are we?
A1: Guangzhou Victory Technology Co., Ltd., headquartered in Guangzhou, China, with 12 international production bases and an annual output of 40 billion units, provides reliable energy storage solutions globally.
Q2: Is it OK to print my logo on the product?
A2: Yes. Please inform us formally before production begins.
Q3: How do we control the quality?
A3: We create samples before mass production and conduct thorough testing. After sample approval, we begin mass production with 100% inspection during manufacturing and random inspections before shipment.
Q4: Is this product safe?
A4: The system features anti-short circuit, anti-scalding, explosion-proof, and environmentally friendly design.
Q5: Can we visit your factory?
A5: We warmly welcome visits. Once we receive your schedule, we will arrange our professional sales team to coordinate your visit.
If you have any other questions, please feel free to contact us. We welcome your inquiry.
