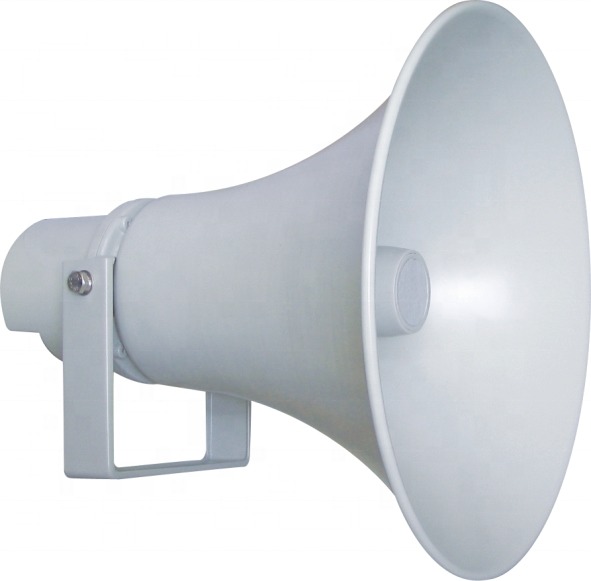

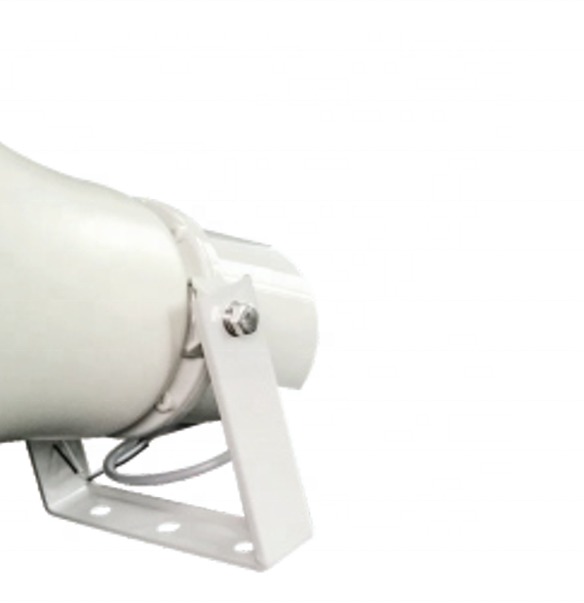

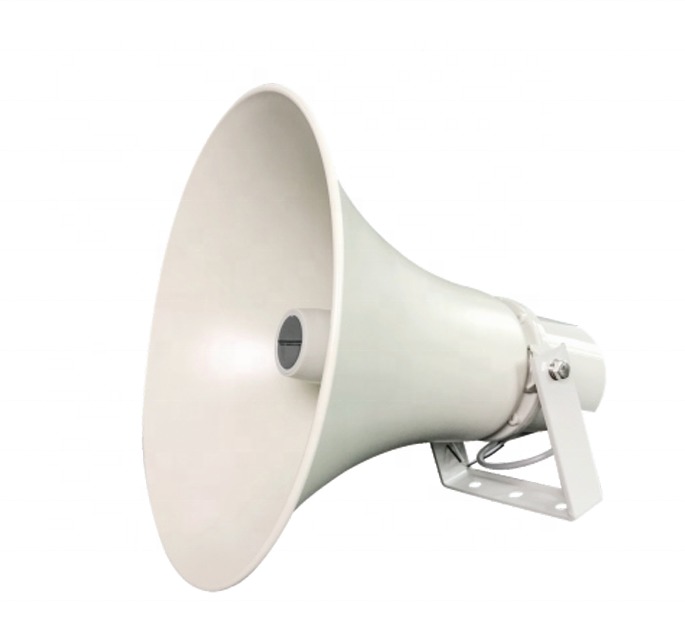

IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
Specifications
Place of Origin :
Guangdong, China
Model Number :
IP-0050
MOQ :
100
warranty :
3years
dimension :
325*350
snr :
>/=65DB
Frequency response :
380HZ-6KHZ+1DB/-3DB
Description
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier

Product Description

This IP horn speaker is a high - performance audio solution. Its integrated design combines network audio decoding, digital power amplification, and a horn speaker. With an industrial - grade dual - core chip for fast startup, 80W power output, IP65 waterproofing, and remote upgrade support, it ensures excellent sound quality and reliable operation in various environments.

Features
◆Integrated design of network audio decoding, digital power amplifier and horn speaker.
◆Using high-speed industrial-grade dual-core (ARM+DSP) chip, and the start-up time is ≤ 1s.
◆Support ≥48kHz sampling rate 16bit, 8~320Kbps digital audio stream decoding. Built-in Class D digital power amplifier, CD-level sound output, receiving broadcast (digital noise reduction) 80W poweroutput.
◆Professional design aluminum enclosure.
◆All-weather design, waterproof up to IP65.
◆Monitor-level speaker unit, perfect restoration of vocal and music.
◆Service software remotely adjusts network audio output volume and 5-band equalization adjustment.
◆ There is a waterproof indicator at the bottom to show the terminal online status.
◆ Standard RJ45 network interface, can be accessed where there is an Ethernet port, support cross-network segment and cross-route.
◆ DC power supply
◆Support LAN and WAN range upgrades, which is convenient for effective customer service.
Model
IP-0050
PD-60M
PD-80M
PD-120M
Network Interface
Rj45
Power Consumption
</=50W
60W
80W
120W
Network Protocol
TCP/IP, UDP, IGMP



Audio Format
MP3/MP2



Sampling Rate
8K-48KHZ
Transfer Rate
100Mbps
Audio Mode
16bit Stereo CD Quality
Speaker Impedance and Power
50W
MIC Input Sensitivity
5mV(Unbalanced)
240W
92DB
Frequency Response
380HZ-6KHZ+1DB/-3DB
360W
THD
THD</=1%
560W
SNR Ratio
>/=65DB
650W
Operation Temperature
5℃-40℃
Operation Humidity
20℃-80℃
AUX Input Sensitivity
350mV push terminal
Dimensions(mm)
325*350
215*250*66
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
IP65 Outdoor Horn Speaker 65DB 380HZ-6KHZ with Digital Power Amplifier
