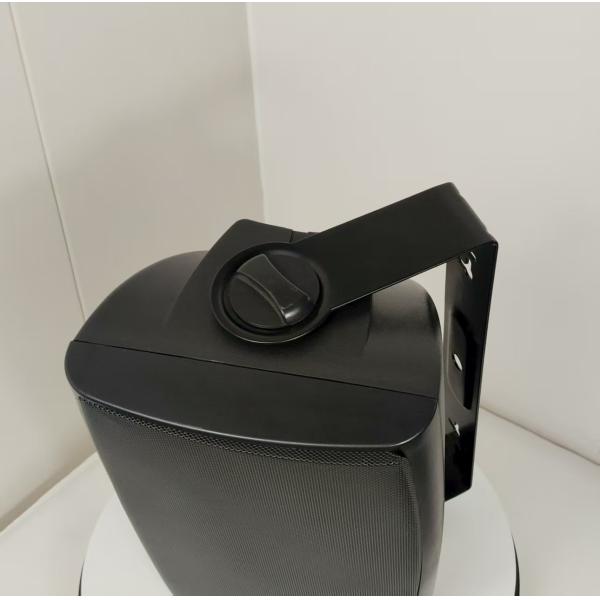

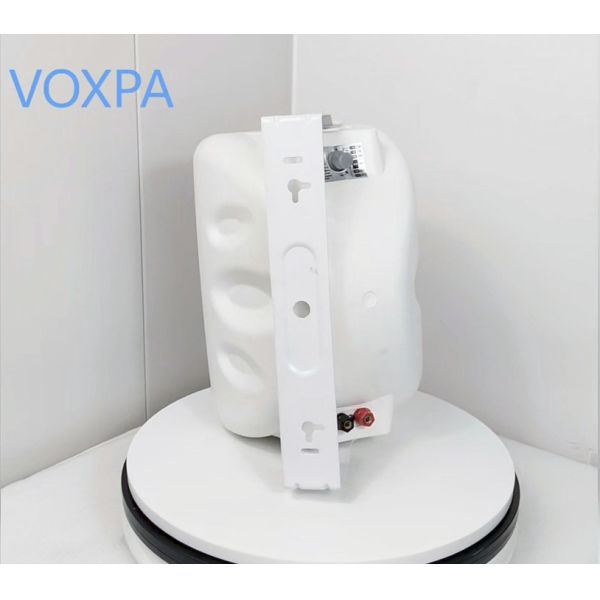

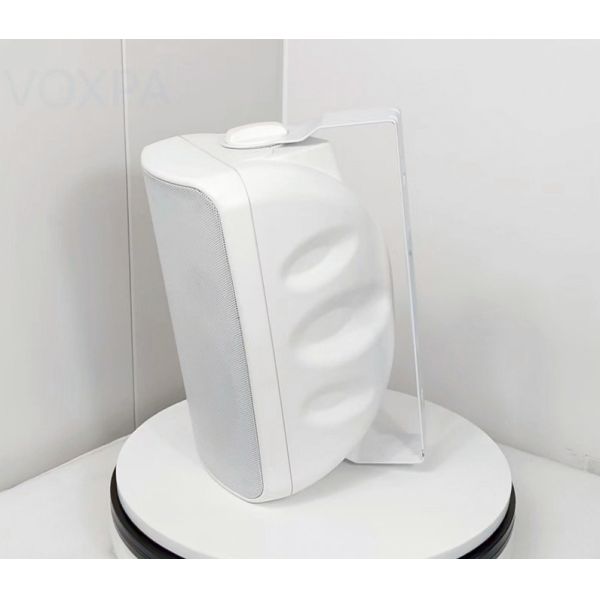

20W/40W PA System Speaker Adjustable Bracket Wall Speaker 100V ABS Material
20W/40W PA System Speaker Adjustable Bracket Wall Speaker 100V ABS Material
20W/40W PA System Speaker Adjustable Bracket Wall Speaker 100V ABS Material
20W/40W PA System Speaker Adjustable Bracket Wall Speaker 100V ABS Material
20W/40W PA System Speaker Adjustable Bracket Wall Speaker 100V ABS Material
20W/40W PA System Speaker Adjustable Bracket Wall Speaker 100V ABS Material
Specifications
dimension :
220*150*135
Impedance :
8ohm
Magnet Material :
Ferrite
Place of Origin :
Guangdong, China
Model Number :
WTL-04
Frequency response :
90-20KHZ
output power :
20W/40W
warranty :
1 years
Shell Material :
ABS
Description
Two Way Wall Mounted PA System Speaker with Individual Tweeter and 4 Inch Woofer
WTL-04 Two Way Wall Mounted PA System Speaker Individual Tweeter and 4 Inch Woofer Adjustable Wall Speaker

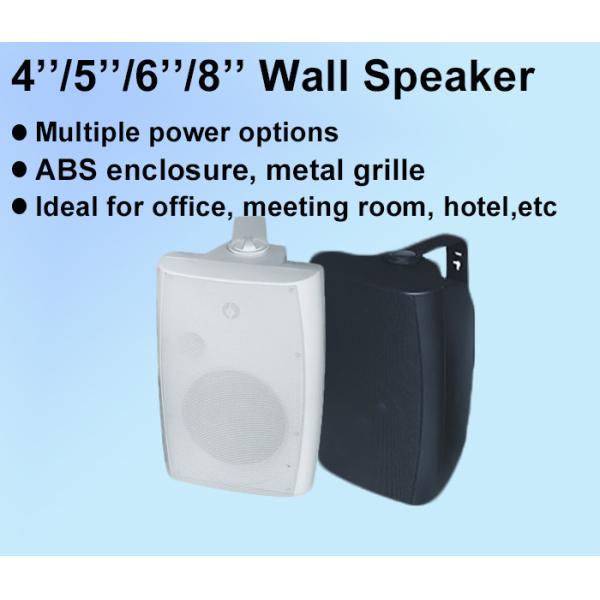

The WT series features two-way wall mount speakers with a 1" tweeter and 4"/5"/6"/8" woofer configuration, delivering stereo sound with clear treble and bass. Built with a 70V/100V transformer to reduce line losses over long distances and enable easy parallel connection of multiple speakers. The durable construction includes a metal grille, ABS enclosure, and painted mounting bracket, available in black or white. Ideal for industrial and commercial applications requiring background music and paging in hotels, schools, offices, and factories.
Design & Construction
  • Mounting: Wall-mounted design for flexible installation
  • Materials: Durable metal grille with ABS enclosure
  • Color Options: Available in black and white finishes
  • Size Variants: 4", 5", 6", and 8" woofer options available
Audio Performance
  • Speaker Configuration: Two-way system with 1" tweeter and 4"-8" woofer
  • Transformer: Built-in 70V/100V for long-distance audio transmission
  • Power Handling: Various power options from 20W to 60W
  • Sound Quality: Wide frequency response (90-20KHz) with high sensitivity (87-89dB)
Applications
Perfect for background music and public address systems in commercial and industrial environments including hotels, schools, office buildings, and manufacturing facilities.
Technical Specifications
Model Speaker Size Power Voltage Sensitivity Frequency Response Dimension(mm) Material

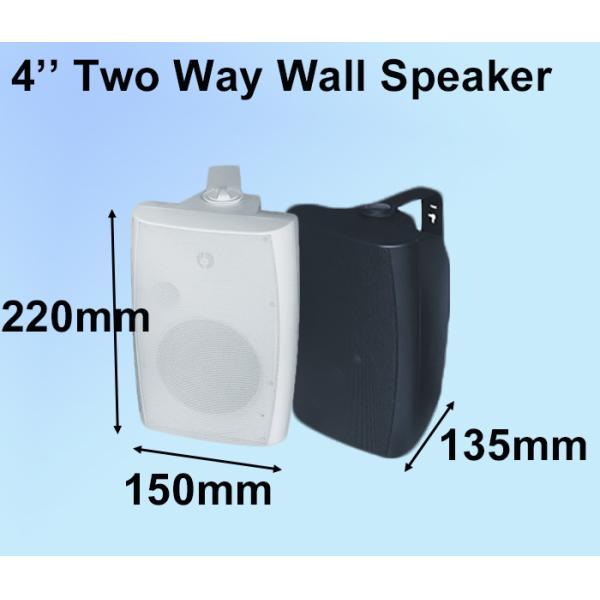

WTL-04 1" tweeter, 4" woofer 20W/40W 8Ω 87DB 90-20KHz 220×150×135 ABS
WTT-04 1" tweeter, 4" woofer 20W 100V 88DB 90-20KHz 220×150×135 ABS
WTS-04 1" tweeter, 4" woofer 2.5/5/10/20/8Ω 100V/70V 88DB 90-20KHz 220×150×135 ABS
WTL-05 1" tweeter, 5" woofer 30W/60 8Ω 88DB 90-20KHz 255×178×155 ABS
WTT-05 1" tweeter, 5" woofer 30W 100V 89DB 90-20KHz 255×178×155 ABS
WTS-05 1" tweeter, 5" woofer 3.75/7.5/15/30W/8Ω 70V/100V 89DB 90-20KHz 255×178×155 ABS
WTL-06 1" tweeter, 6" woofer 40W/80 8Ω 87DB 90-20KHz 310×213×195 ABS
WTT-06 1" tweeter, 6" woofer 40W 100V 89DB 90-20KHz 310×213×195 ABS
WTS-06 1" tweeter, 6" woofer 5/10/20/40/8Ω 70V/100V 89DB 90-20KHz 310×213×195 ABS
WTL-08 1" tweeter, 8" woofer 60W/8Ω 8Ω 88DB 90-20KHz 417×289×255 ABS
WTT-08 1" tweeter, 8" woofer 60W/120W 100V 88DB 90-20KHz 417×289×255 ABS
WTS-08 1" tweeter, 8" woofer 7.5/15/30/60W/8Ω 70V/100V 88DB 90-20KHz 417×289×255 ABS
