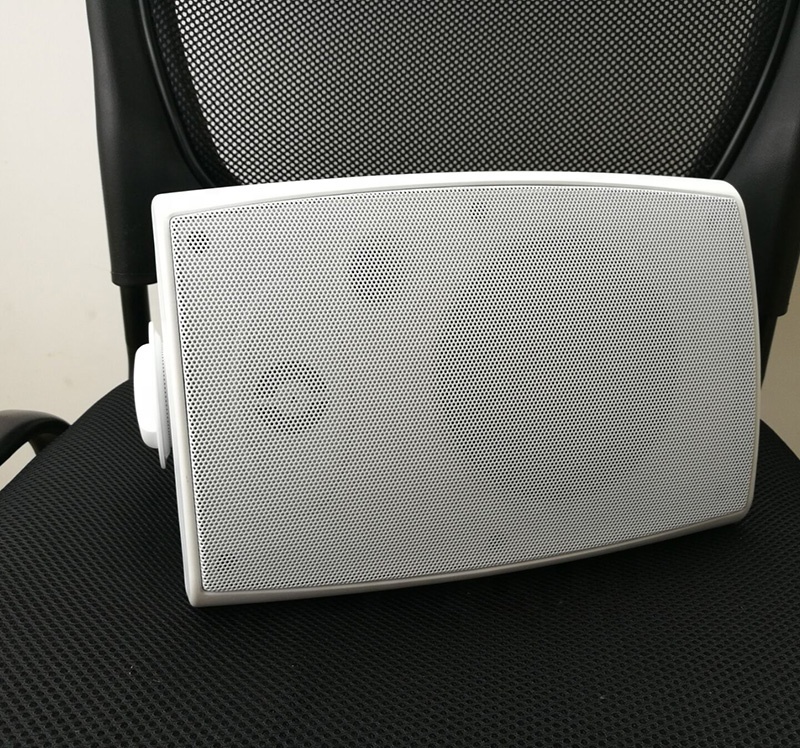

8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
Specifications
Place of Origin :
Guangdong, China
Model Number :
WTL-06
MOQ :
100
warranty :
3Years
dimension :
310*213*195
output power :
40W/8ohm
Shell Material :
ABS
Radio function :
No
Operating Voltage :
100V
Installation :
Wall Mount
Impedance :
8ohm
Frequency response :
90-20KHZ
Magnet Material :
Ferrite, Neodymium
Description
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer

Product Description

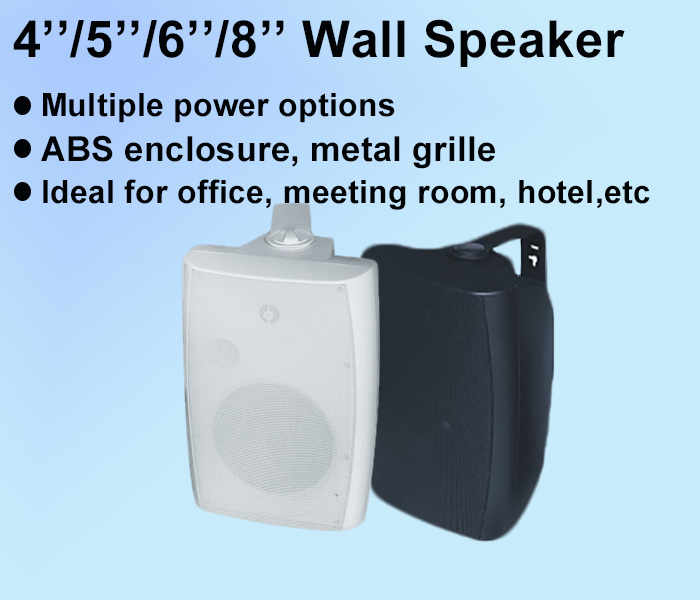

WT series are two way wall mount speakers with a 1’’ tweeter and a 4’’/5’’/6’’/8’’ woofer, stereo sound with treble and bass.
Built in 70V/100V transformer, it can reduce line losses on longer distance and allow easy parallel connection of multiple
speakers. Made of metal grille, ABS enclosure and painted mounting bracket. Both black and white colors are available. It is an ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

Design & Structure

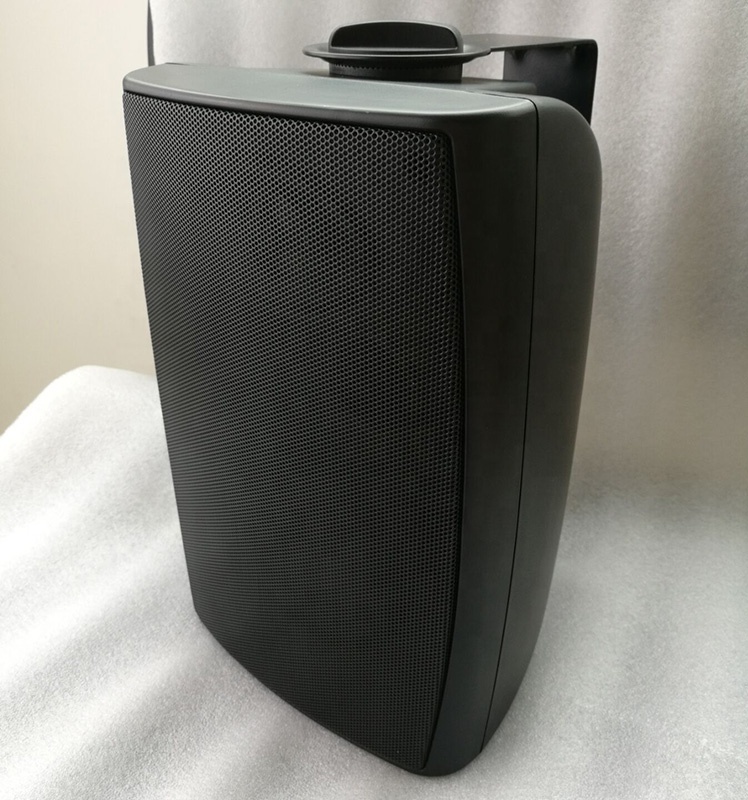

* Mounting & Build: Wall - mounted design. Features a metal grille and durable ABS enclosure, available in black and white.
* Size Options: Offers 4”/5”/6”/8” woofers, with corresponding product dimensions to suit diverse installation spaces.
Audio Performance
* Speaker Configuration: Two - way setup with a 1” tweeter and a 4”–8” woofer, delivering clear stereo sound with distinct treble and bass.
* Power & Efficiency: Built - in 70V/100V transformer reduces long - distance line losses. Supports various powers, enabling easy parallel speaker connections.
* Sound Quality: Boasts a wide frequency response and high sensitivity , ensuring high - fidelity audio playback.
Function & Compatibility

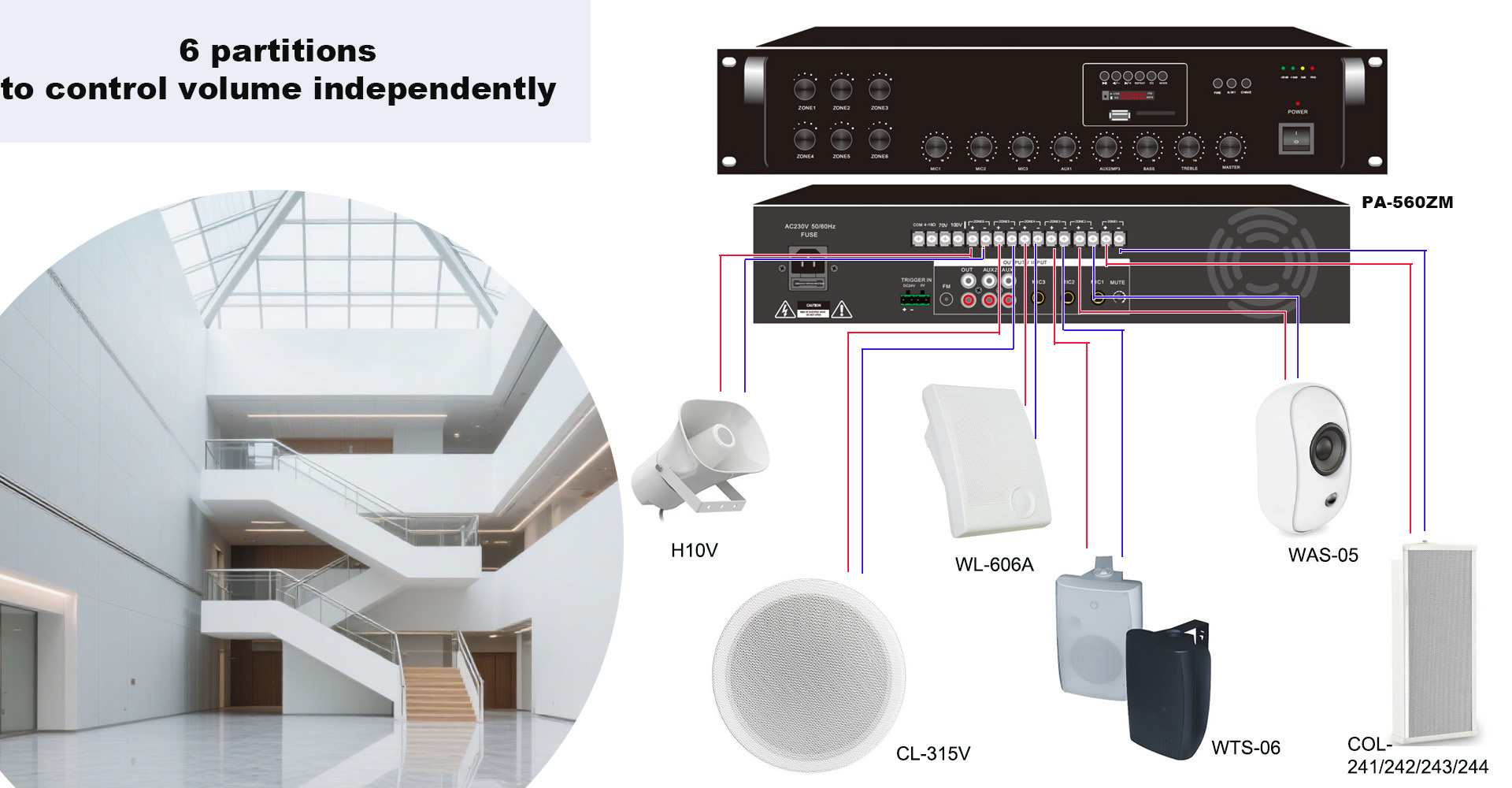

* Scenario Fit: Perfect for background music and paging in industrial and commercial environments like hotels, schools, offices, and factories.
* System Adaptability: Programs can be accessed on - demand via server software (a standard feature for such audio devices), suiting different audio system setups.

Model
Speaker Size
Power
Voltage
Sensitivity
Frequency Response
Dimension(mm)
Material
WTL-04
1" tweeter, 4" woofer
20W/8Ω
8Ω
87DB
90-20KHz
220*150*135
ABS
WTT-04
20W
100V
88DB
WTS-04
2.5/5/10/15/8Ω
100V/70V
88DB
WTL-05
1" tweeter, 5" woofer
30W/8Ω
8Ω
88DB
255*178*155
WTT-05
30W
100V
89DB
WTS-05
3.75/7.5/15/30W/8Ω
70V/100V
89DB

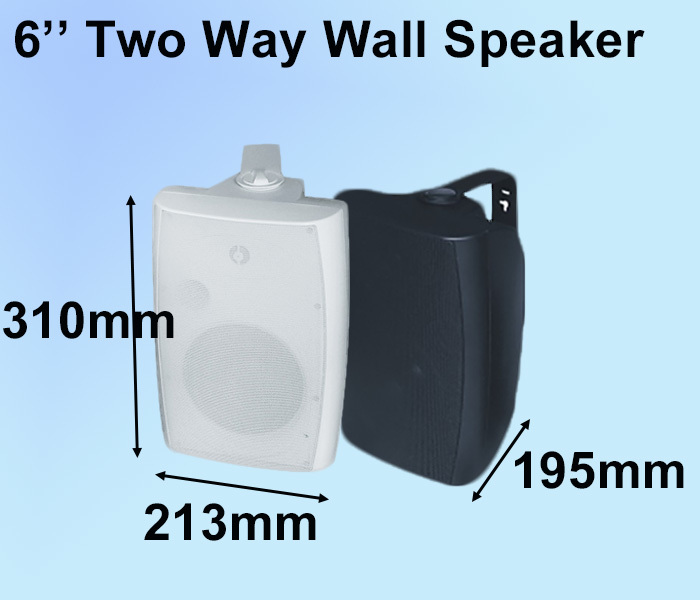

WTL-06
1" tweeter, 6" woofer
40W/8Ω
8Ω
87DB
310*213*195
WTS-06
40W
100V
89DB
WTT-06
5/10/20/40/8Ω
70V/100V
89DB
WTL-08
1" tweeter, 8" woofer
60W/8Ω
8Ω
88DB
417*289*255
WTS-08
60W
100V
88DB
WTT-08
7.5/15/30/60W/8Ω
70V/100V
88DB
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer
8ohm Wall Mounted Speaker 40W Impressed Individual Tweeter 6 Inch Woofer

Q: Are you manufacturer or a trading company?

A: We are a manufacturer that integrates R&D, manufacturing and marketing. We have our own export licence for oversea transactions.

Q: l want make OEM products with my own brand. Is it possible?

A: Certainly. We can make all our products with your brand.

Q: Can we make ODM products for our brand?

A: No problem,we can make ODM products for our customers. Our experienced engineers can make unique design for you, including product outlook design, acoustics design, electronic circuit design, software design, etc. We are not only your supplier, but also your R&D team.

Q: What are the benefits of choosing your OEM/ODM services?

A: Our products are cost-effective with good value for money. With stable quality and reasonable prices, your brand stands out from your competitors in your market. What’s more, our ODM service allows you to have products with your own unique design, which enhances your advantages in the market competition. For ODM products, we sign non-disclosure agreement to protect your design strictly.

Q: Can you design a sound solution for our projects?

A:Definitely. As long as you inform us your requirement for sound and budget, and send us the drawing for project, our experiences engineers will suggest products accordingly. In addition to sending you product list, we also send you detailed connection guidance. After you receive the products, we are ready to give you technical support in case you have any problems during installation.

Q: How long is the lead time?

A: It takes one week for samples, and 4 weeks for mass production. In case of any urgent orders for projects, we would suggest our products in stock for fast delivery.
