Broadcast Power Amplifier 240W High Power Amplifier For Home Theatre
Broadcast Power Amplifier 240W High Power Amplifier For Home Theatre
Broadcast Power Amplifier 240W High Power Amplifier For Home Theatre
Broadcast Power Amplifier 240W High Power Amplifier For Home Theatre
Broadcast Power Amplifier 240W High Power Amplifier For Home Theatre
Broadcast Power Amplifier 240W High Power Amplifier For Home Theatre
Broadcast Power Amplifier 240W High Power Amplifier For Home Theatre
Broadcast Power Amplifier 240W High Power Amplifier For Home Theatre
Specifications
Place of Origin :
Guangdong, China
Model Number :
PA-240A
MOQ :
100
warranty :
3years
dimension :
485*400*88
snr :
>/=80DB
output power :
240W
Operating Voltage :
70V/100V
Shape :
Rectangle
Frequency response :
80HZ-20KHZ+/-1DB
Description
Broadcast Power Amplifier 240W High Power Amplifier For Home Theatre
Broadcast Power Amplifier 240W High Power Amplifier For Home Theatre
Broadcast Power Amplifier 240W High Power Amplifier For Home Theatre
Broadcast Power Amplifier 240W High Power Amplifier For Home Theatre

Product Description

This power amplifier boasts outstanding features.

Features:
Circuit & Input - Output

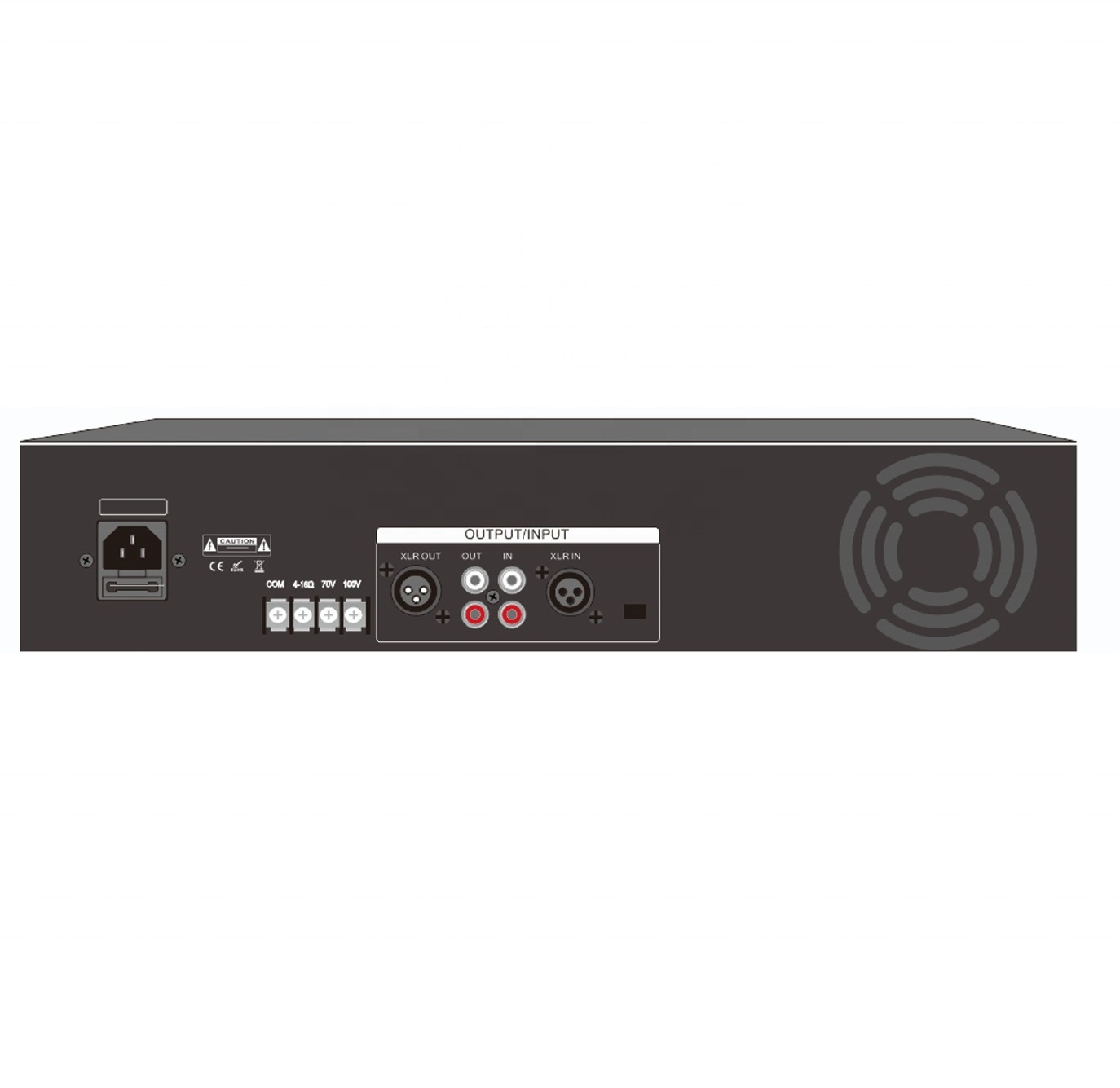

It adopts an advanced and efficient power amplification circuit. There are 1 balanced input, 1 unbalanced input, and 1 unbalanced output, enabling flexible connection options for different audio setups.
Power & Volume Control
Equipped with a volume control function. It offers a rated output of 60W to 1500W across various models (PA - 060A to PA - 1500A). For certain models, a 70V/100V constant voltage output with 4 - 16Ω constant impedance output is available, meeting diverse power needs. The input voltage is uniformly AC220V/50Hz.
Protection & Indicators
Safety and monitoring are key. It has protection circuits against DC, overload, over - heating, and short - circuit. Additionally, indicators for signal, peak value, overloading, over - heating, and short - circuit are provided. These indicators give clear warnings when signals are too strong, loads are excessive, temperatures are too high, or short - circuits occur, ensuring the amplifier's reliability and longevity.
Performance Specifications
Frequency response spans 80Hz - 20KHz (±1dB), with total harmonic distortion (THD) ≤0.1% and a signal - to - noise ratio (SNR) ≥80dB. Line output is 0dB. It operates in a temperature range of - 5°C to 80°C and 20% - 80% relative humidity, suitable for various environments. Dimensions are 485x402x88mm, making it compact yet powerful for broadcast applications.
Model
PA-060A
PA-120A
PA-240A
PA-360A
PA-500A
PA-650A
PA-800A
PA-1000A
PA-1500A
Iput Voltage
AC220V/50HZ
Rated Power
Iput Voltage
Sensitivity
Frequency Response
Dimension
Material
Rated Power
60W
120W
240W
360W
500W
650W
800W
1000W
1500W
AUX Sensitivity
0DB
120W
90DB
50-21KHz
186*189*306
ABS
Protection Circut
DC, Overload, AC fuse, Short-circuit
240W
92DB
50-22KHz
222*214*335
ABS
Frequency Response
80HZ-20KHZ+/-1DB
360W
THD
THD</=0.1%
560W
SNR
>/=80DB
650W
Line Output
0DB
1000W
Operating Temperature
-5℃-80℃
Operating Humidity
20℃-80℃ relative humidity
Dimensions
485*400*88
