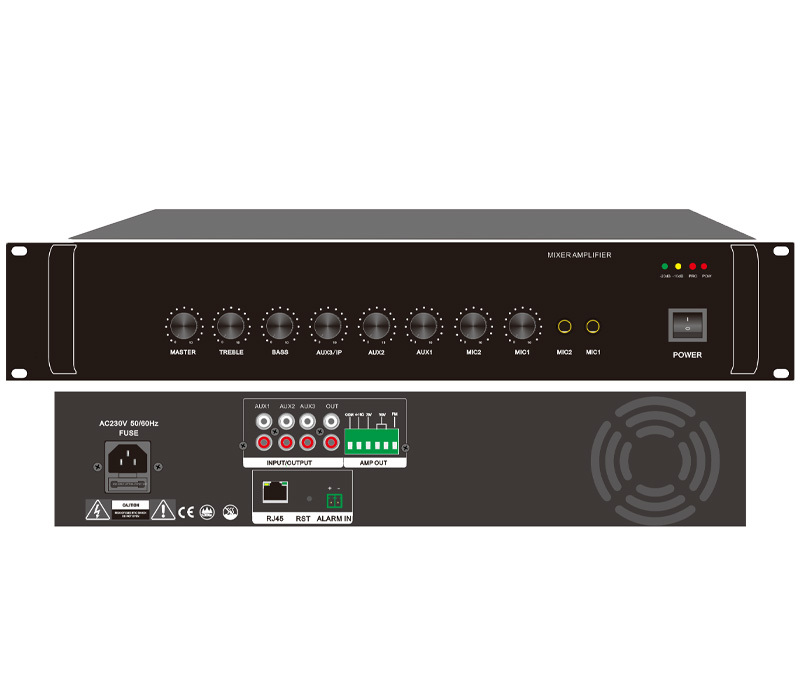

70dB 120W Mixer Amplifier 70V 100V SIP Amplifier Metal Enclosure

Specifications

Place of Origin :

Guangdong, China

Model Number :

SIP-120

MOQ :

100

warranty :

3Years

dimension :

485*360*88

snr :

>/=70DB

Frequency response :

80Hz-16KHz+/-3DB

Description

Product Description

Features:

1. Utilizes advanced, high-efficiency power amplifier circuitry, features two microphone inputs, two line inputs, and one auxiliary output.

2. Constant impedance and constant voltage outputs: 70V/100V, and 4-16Ω.

3. Independent volume adjustment for each channel, with treble and bass adjustments.

4. Microphone 1 takes priority, automatically suppressing other input signals. Microphone 2 and other lines are mixed for output.

5. Features signal indication, peak clipping, and overload indicators. Protection indicators activate when the input signal is excessive, the load is too heavy, the temperature is too high, or the line is short-circuited.

6. Comes standard with one 10/100M RJ45 network switch port and supports SIP protocol.

7. Utilizing an industrial-grade dual-core processor (ARM+DSP), the device boots up in less than 1 second and supports broadcasting.

8. A built-in network IP decoding module enables real-time streaming of online music and calls. Network latency for both acquisition, playback, and calling functions is less than 30mS. 9. Supports power management, automatically shutting off when no tasks are performed.

10. Supports fire short-circuit trigger input for emergency broadcasts.

11. Supports IP address broadcast and reset functions.

12. This device supports remote upgrades via LAN and WAN, facilitating effective customer service.

It is an ideal choice for commercial applications in hotels, resorts and restaurant where music is preferred.

Model	SIP-60	SIP-120	SIP-240	SIP-360	SIP-560	SIP-650
Rated Power	60W	120W	240W	360W	560W	650W
AUX Sensitivity	-12dB						-12dB
Microphone Sensitivity	-40dB						-40dB
Frequency Response	80Hz to 16kHz ±3dB						80Hz to 16kHz ±3dB
THD	≤ 0.1%						≤ 0.1%
SNR	≥ 70dB						≥ 70dB
Line Output	0dB						0dB
Protection Circuit	DC protection, overload, AC fuse, and short-circuit						DC protection, overload, overtemperature, and short-circuit protection
Operating Temperature	-5°C to 80°C						-5°C to 80°C
Operating Humidity	20% to 80% relative humidity, non-condensing						20% to 80% relative humidity, non-condensing
Dimensions	485×360×88mm						485×360×88mm
Power Supply	AC220V/50Hz						AC220V/50Hz

Q: Are you manufacturer or a trading company?

A: We are a manufacturer that integrates R&D, manufacturing and marketing. We have our own export licence for oversea transactions.

Q: l want make OEM products with my own brand. Is it possible?

A: Certainly. We can make all our products with your brand.

Q: Can we make ODM products for our brand?

A: No problem,we can make ODM products for our customers. Our experienced engineers can make unique design for you, including product outlook design, acoustics design, electronic circuit design, software design, etc. We are not only your supplier, but also your R&D team.

Q: What are the benefits of choosing your OEM/ODM services?

A: Our products are cost-effective with good value for money. With stable quality and reasonable prices, your brand stands out from your competitors in your market. What’s more, our ODM service allows you to have products with your own unique design, which enhances your advantages in the market competition. For ODM products, we sign non-disclosure agreement to protect your design strictly.

Q: Can you design a sound solution for our projects?

A：Definitely. As long as you inform us your requirement for sound and budget, and send us the drawing for project, our experiences engineers will suggest products accordingly. In addition to sending you product list, we also send you detailed connection guidance. After you receive the products, we are ready to give you technical support in case you have any problems during installation.

Q: How long is the lead time?

A: It takes one week for samples, and 4 weeks for mass production. In case of any urgent orders for projects, we would suggest our products in stock for fast delivery.
