Computer Controlled Brake Pad Friction Material Testing Machine
Computer Controlled Brake Pad Friction Material Testing Machine
Computer Controlled Brake Pad Friction Material Testing Machine
Computer Controlled Brake Pad Friction Material Testing Machine
Computer Controlled Brake Pad Friction Material Testing Machine
Computer Controlled Brake Pad Friction Material Testing Machine
Computer Controlled Brake Pad Friction Material Testing Machine
Computer Controlled Brake Pad Friction Material Testing Machine
Computer Controlled Brake Pad Friction Material Testing Machine
Computer Controlled Brake Pad Friction Material Testing Machine
Computer Controlled Brake Pad Friction Material Testing Machine
Computer Controlled Brake Pad Friction Material Testing Machine
Specifications
Place of Origin :
China
Brand Name :
TOSUN
MOQ :
1 unit
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability :
1000PCS/Year
Model NO. :
SJ160
Display :
Digital
Control :
Computer Control
Weight :
>2000Kg
Power Source :
AC380V
Transport Package :
Wooden Case
Specification :
2000× 800× 1810mm
Trademark :
TOSUN
Origin :
Ningbo
HS Code :
9031809090
After-sales Service :
Yes
Warranty :
1 Year
Max Diameter of Workpiece :
<500mm
Type :
Friction Testing Machine
Maxcapacity :
0-2000n
Load Way :
Electronic Load
Customization :
Available | Customized Request
Description

Product Description

This equipment is used for measuring the friction properties of friction materials according to the standards such as SAE J661, ISO 7881, and GB/T 17469-98. It is applied for the classification and quality control of friction materials before inertial bench tests or vehicle tests.

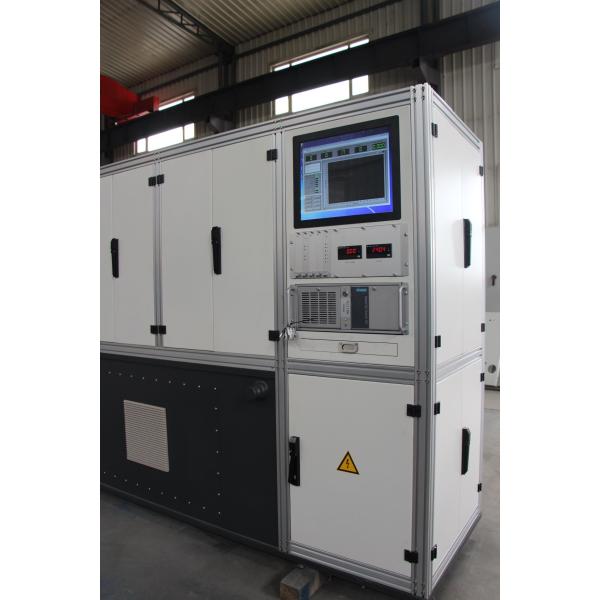

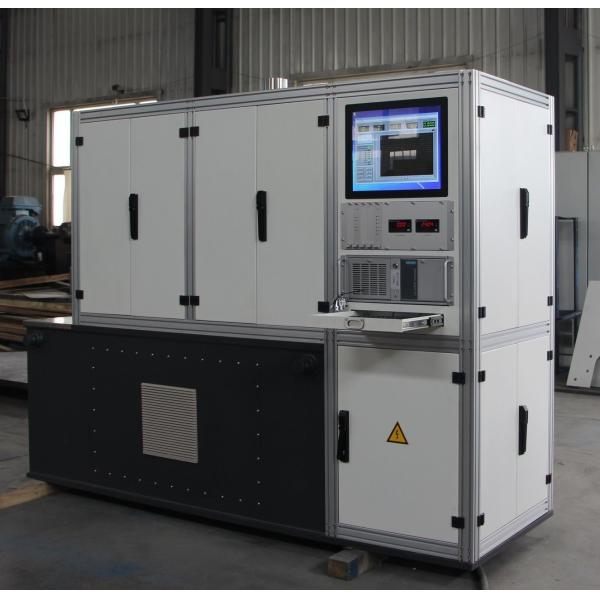

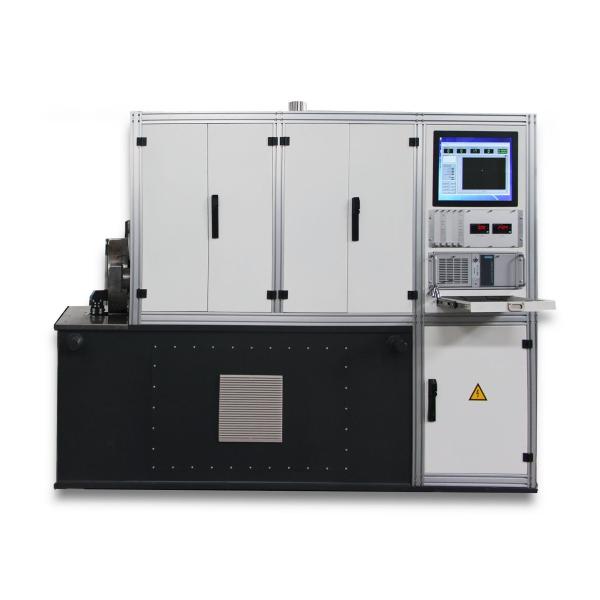

The tester is designed according to the principles and basic structure of the testing machine specified in SAE J661 standard. The positive pressure load is controlled by hydraulic servo and has a constant friction control function. Its main performance parameters leave sufficient room for the future development of testing standards. Computer control and data processing; Digital display of torque, pressure, speed, and temperature; The test results and curves are printed out by the printer.

Product Parameters

Equipment Parameters
No. Description Unit Specification
1 Model SJ160
2 Power three-phase four wire system, 380V, 50Hz, 50A

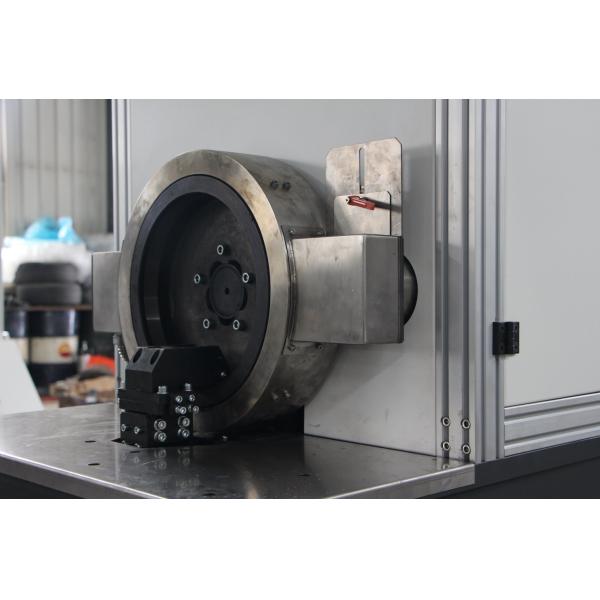

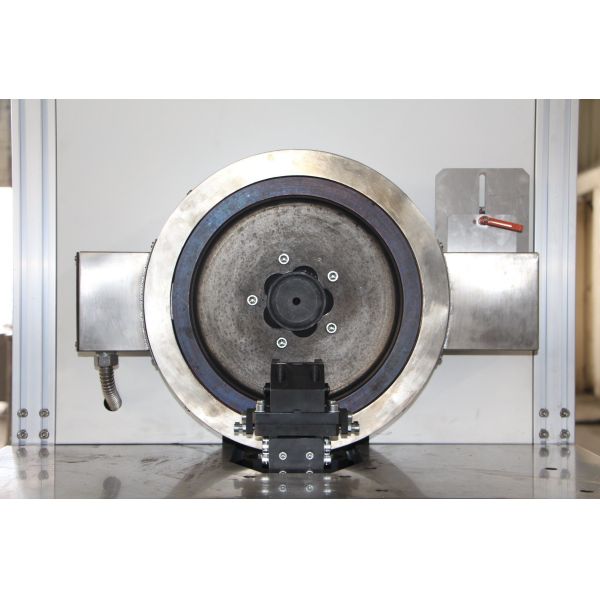

3 Friction counterpart drum--chunk
4 Sample size mm 25.4×25.4
5 Counterpart part mm F277--F280
6 Speed of main axes r/min 0~1,000 (stepless)
7 Load of normal pressure N 0~2,000 (servo control )
8 Drive power kw 22, DC
9 Power of heater kw 5.1
10 Cooling kw 1.5 air cooling (adjustable)
11 Range of temperature ºC room temperature~600ºC
12 Size mm 2,000×800×1,810
13 Weight kg 2,300
