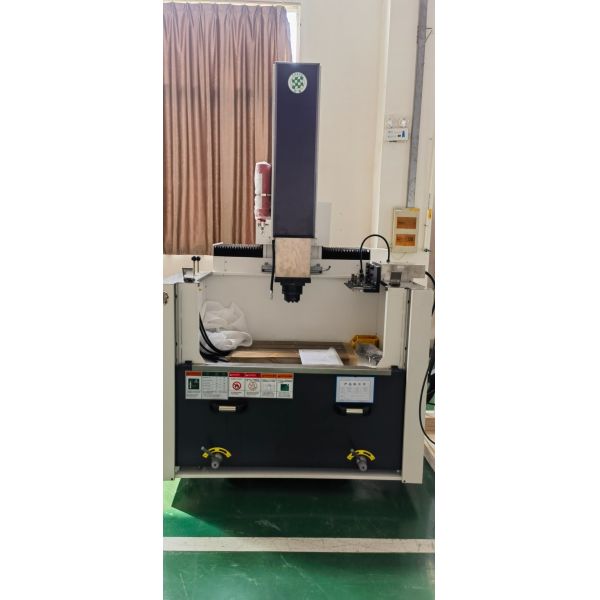

Large Metal Travel CNC Electrical Discharge Machine EDM1280h with Ra 0.2μm
Large Metal Travel CNC Electrical Discharge Machine EDM1280h with Ra 0.2μm
Large Metal Travel CNC Electrical Discharge Machine EDM1280h with Ra 0.2μm
Large Metal Travel CNC Electrical Discharge Machine EDM1280h with Ra 0.2μm
Large Metal Travel CNC Electrical Discharge Machine EDM1280h with Ra 0.2μm
Large Metal Travel CNC Electrical Discharge Machine EDM1280h with Ra 0.2μm
Large Metal Travel CNC Electrical Discharge Machine EDM1280h with Ra 0.2μm
Large Metal Travel CNC Electrical Discharge Machine EDM1280h with Ra 0.2μm
Large Metal Travel CNC Electrical Discharge Machine EDM1280h with Ra 0.2μm
Large Metal Travel CNC Electrical Discharge Machine EDM1280h with Ra 0.2μm
Large Metal Travel CNC Electrical Discharge Machine EDM1280h with Ra 0.2μm
Large Metal Travel CNC Electrical Discharge Machine EDM1280h with Ra 0.2μm
Specifications
Certification :
ISO 9001
Place of Origin :
China
Brand Name :
TOSUN
MOQ :
1 unit
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability :
1000PCS/Year
Model NO. :
EDM1280H
Numerical Control :
CNC/MNC
Performance Classification :
Economical CNC Machine Tools
Condition :
New
Transport Package :
Wooden Case
Specification :
1650× 1980 × 2300
Trademark :
TOSUN
Origin :
Suzhou
HS Code :
8456301090
After-sales Service :
Yes
Warranty :
1 Year
Application :
Metal
Process Usage :
Metal-Forming CNC Machine Tools
Movement Method :
Linear Control
Control Method :
Open-Loop Control
Customization :
Available | Customized Request
Description

Product Description

The EDM is also known as EDM die sinking machine. The core of EDM processing is mainly reflected in the requirements for dimensional accuracy, profile accuracy and surface quality. Through the adoption of some advanced processing technology, it can achieve the mirror surface processing effect and successfully complete the EDM processing of high precision mold parts, such as the micro connector, IC plastic seal, mobile phone, CD box and so on.

Features:
1)The CNC EDM die sinking machine manufactured by our company has the characteristics of high precision, high surface finish, high speed, stable operation and less failure.

2)It is made of high-strength cast iron bed with firm structure.

3)This machine has the mirror processing function and Z-axis NC processing function.

4)It is suitable for the processing of complex mold cavity and curved surface of molds, precision machinery parts and all kinds of electrical conductive materials.

Product Parameters

No. Description Unit Specification
1 Worktable Size (L×W) mm 1250×800
2 Three-axis Travel (X×Y×Z) mm 1200×600×550
3 Work Tank Inner Dimension mm 2000×1300×700
4 Distance Between Electrode and Workable mm 500-1000
5 Maximum Electrode Weight kg 180
6 Maximum Workpiece Weight kg 3000
7 Maximum Work Current A 50
8 Maximum Processing Speed mm³/min >=500
9 Best of Surface Roughness μm Ra<=0.2
10 Minimum Electrode Wear Rate % 0.1
11 Positioning accuracy mm 0.015
12 Repeated positioning accuracy mm 0.01
13 Minimum number of control axes 3
14 Axis resolution µm 0.4
15 Minimum drive unit µm 1
16 Display System 15``LCD-TFT
17 Power supply AC 380V 3P 50HZ
18 Machine Dimensions mm 2700×3200 ×3000
19 Machine Weight kg 6000
20 Interpolate Straight line, arc, spiral line, bamboo cavity
22 Shaft compensation error compensation; backlash compensation
23 Remote control box (hand control box) Standard point movement (multistage switching) and auxiliary A0-A3
24 I/O interface USB, RS232
