Vmc855 CNC/MNC Vertical Machining Center
Vmc855 CNC/MNC Vertical Machining Center
Vmc855 CNC/MNC Vertical Machining Center
Vmc855 CNC/MNC Vertical Machining Center
Vmc855 CNC/MNC Vertical Machining Center
Vmc855 CNC/MNC Vertical Machining Center
Vmc855 CNC/MNC Vertical Machining Center
Vmc855 CNC/MNC Vertical Machining Center
Vmc855 CNC/MNC Vertical Machining Center
Vmc855 CNC/MNC Vertical Machining Center
Vmc855 CNC/MNC Vertical Machining Center
Vmc855 CNC/MNC Vertical Machining Center
Specifications
Certification :
ISO 9001
Place of Origin :
China
Brand Name :
TOSUN
MOQ :
1 unit
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability :
1000PCS/Year
Model NO. :
VMC855
Numerical Control :
CNC/MNC
Processing Precision :
0.01~0.02(mm)
Performance Classification :
Economical CNC Machine Tools
Condition :
New
Transport Package :
Wooden Case
Specification :
2600× 2380× 2400mm
Trademark :
TOSUN
Origin :
China
HS Code :
8457101000
After-sales Service :
Online and Video Support
Warranty :
1 Year
Application :
Metal
Process Usage :
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method :
Linear Control
Control Method :
Semi-Closed Loop Control
Customization :
Available | Customized Request
Description

Product Description

This product is a semi-closed-loop vertical machining center with servo direct control of X, Y, and Z axes. The X, Y, and Z axes are roller linear guides. The guide rails are wide, have a large span, and have a compact structure. The spindle is driven by a servo motor through a synchronous belt. It can realize one-time clamping of various complex parts such as disks, plates, shells, cams, and molds, and can complete various processes such as drilling, milling, boring, expanding, reaming, and rigid tapping. It is suitable for the production of multiple varieties and small and medium-sized batches of products, and can meet the processing of complex and high-precision parts. It can be equipped with a fourth rotating axis to meet the processing requirements of special parts.
Features
  1. The main basic parts such as base, slide seat, workbench, column, spindle box and so on are made of HT300 cast iron; the base and slide seat are box-type structures, and the compact and reasonable symmetrical rib structure ensures high rigidity, bending resistance and shock absorption. The A-shaped bridge-span column and internal grid-like ribs effectively ensure the rigidity and accuracy during strong Z-axis cutting; the basic parts are made of resin sand and have undergone aging treatment, which guarantees the stability of the long-term performance of the machine tool.
  2. The X, Y, and Z axes all use linear roller guides, combined with automatic forced lubrication, to reduce the frictional resistance of the feed motion, reduce low-speed crawling, and improve the accuracy and life of the machine tool.
  3. The Z-direction drive motor adopts high torque drive and has a power-off braking device.
  4. The feeds in the three directions of X, Y and Z adopt high-speed and silent ball screws; The drive motor is directly connected to the screw through an elastic coupling, and the feed servo motor directly transmits power to the high-precision ball screw without backlash, ensuring the positioning accuracy and synchronization of the machine tool;
  5. It adopts a high-speed, high-precision and high-rigidity spindle unit with strong axial and radial load-bearing capacity, and the maximum speed can reach 8000rpm;
  6. The spindle adopts a central air blowing structure. When the spindle releases the tool, the central high-pressure gas is quickly used to clean the inner cone of the spindle to ensure the accuracy and life of the tool clamping;
  7. The guide rails and screws in the three directions of X, Y, and Z all adopt fully enclosed protective devices to ensure the cleanliness of the screws and guide rails and the transmission and movement accuracy and life of the machine tool;
  8. The machine tool adopts a fully protective structure design, which is easy to operate, safe and reliable;
  9. Use a reliable centralized automatic lubrication device to automatically lubricate each lubrication point of the machine tool intermittently and quantitatively, and the lubrication time can be adjusted according to the working conditions;
  10. Adopt 24 disc tool magazines produced by Taiwanese professional manufacturers, which have the advantages of accurate tool change, short time, high efficiency and high reliability; the tool magazine movement has a damping structure, which can reduce the impact during movement and ensure the use of the tool magazine Long life; pneumatic drive, easy to use, shortest path tool change;
  11. The machine tool operating system adopts ergonomic principles. The operating box is independently designed and can rotate by itself, making it easy to operate.

Product Parameters

Item Unit Description
Spindle Belt spindle specifications BT40-150
Tool handle rivet standard GB/T10944.3-JF40-45
Speed r/min 60~8000
Spindle end face to worktable mm 130-680
Spindle center to column mm 655
Worktable Worktable size mm 1000×550
T-slot number, width and spacing mm 5-18×90
Max. load kg 500
Guide rail Guide rail type Roller linear guide for X, Y, Z axis
Guide rail width for X, Y, Z axis mm 35/45/45
Roller guide screw X axis mm φ40×16
Y axis mm φ40×16
Z axis mm φ40×16
Travel X axis mm 800
Y axis mm 550
Z axis mm 550
Fast moving speed X axis m/min 32
Y axis m/min 32
Z axis m/min 24
Cutting feed speed m/min 1-10000
Servo motor Spindle motor power Kw 7.5KW
X, Y axis motor power Kw 2.3/2.3
Z axis motor power Kw 3.6
Tools(OKADA) Max. tool diameter (adjacent/null) mm φ80/φ150
Max. tool length mm 300
Max. tool weight kg 8
Type and number BT40-24T
Tool changing speed (tool to tool) S 2.5
Cooling Cooling pump power W 450
Cooling pump flow L/min 33
Cooling box volume L 350
Lubrication type Automatic
Positioning accuracy for X, Y, Z axis mm 0.016/0.012/0.012
Repeatability accuracy for X, Y, Z axis mm 0.01/0.006/0.006
Power AC voltage V 3~ 380±10%
Frequency Hz 50±10%
Total power consumption KVA 18
Total air pressure MPa 0.5-0.7
Machine weight kg 5500
Machine size(L×W×H) mm 2600×2380×2400mm

Machine Configurations
1. CNC system: KND2000M (Optional Mitsubishi, Siemens, etc.)
2. Taiwan spindle unit BT40-150-8000rmp;
3. Servo spindle motor: motor power 7.5KW;
4. Taiwan (Okada) BT40-24 disc tool magazine;
5. X/Y/Z three-axis roller linear guide (35/45/45);
6. Moving hand pulse;
7. Hand-held air gun;
8. Z-axis rigid tapping;
9. Centralized automatic oil lubrication;
10. External cooling system (including cooling pipe, chip tray, cooling box, cooling pump);
11. Manual rear chip removal;
12. External air cooling;
13. Fully protective sheet metal outer shield and internal screw and guide rail shields;
14. Adjustment horn;
15. Work lighting;
16. Work warning light.

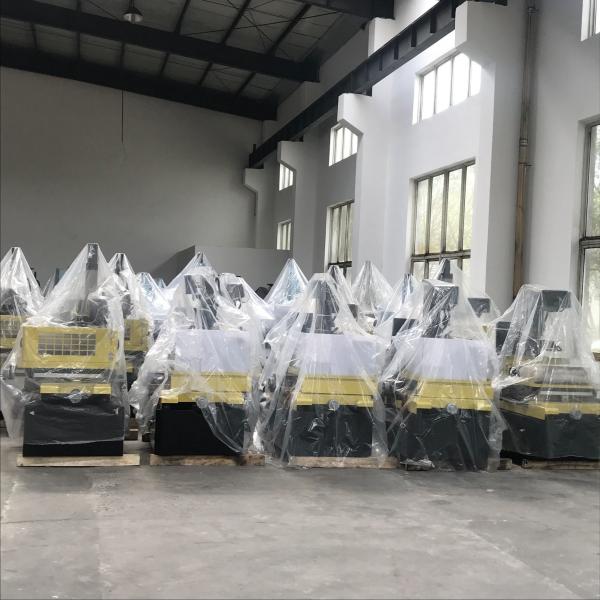

Packaging & Shipping

Vmc855 CNC/MNC Vertical Machining Center

Vmc855 CNC/MNC Vertical Machining Center

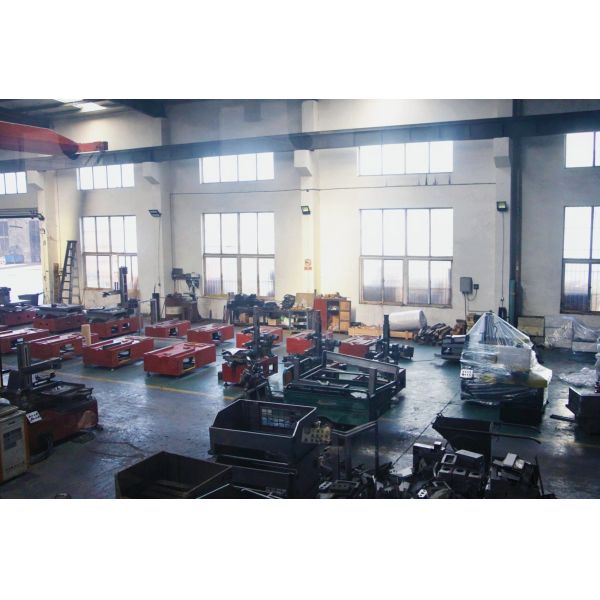

Company Profile
