Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools
Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools
Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools
Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools
Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools
Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools
Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools
Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools
Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools
Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools
Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools
Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools
Specifications
Certification :
CE
Place of Origin :
China
Brand Name :
TOSUN
MOQ :
1 unit
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability :
1000PCS/Year
Model NO. :
SE630
Numerical Control :
CNC/MNC
Processing Precision :
0.01~0.02(mm)
Performance Classification :
Economical CNC Machine Tools
Condition :
New
Transport Package :
Wooden Case
Specification :
2265x1865x2100
Trademark :
TOSUN
Origin :
Suzhou
HS Code :
8456301090
After-sales Service :
Yes
Warranty :
1 Year
Application :
Metal
Process Usage :
Metal-Cutting CNC Machine Tools
Movement Method :
Linear Control
Control Method :
Open-Loop Control
Customization :
Available | Customized Request
Description

Product Description

CNC Molybdenum Wire Cutting EDM Machine (Super Economical) DK7763 is a special machine designed for mass and high efficiency processing. The machine has high efficiency, high processing accuracy, good smoothness of multiple cutting, simple operations, and high consistency of machine tool processing. The machine is suitable for cutting work pieces in large quantities. Compared to similar machines, our SE630 offers a remarkable 5%-10% increase in processing efficiency, saving you valuable time and resources.

Product Parameters

Equipment Specification
No. Description Unit Specification
1 Model SE630
2 Worktable Size (L×W) mm 670x1000
3 Worktable Travel (X×Y) mm 630x800
4 Max. Workpiece Height mm 700
5 Max. Workpiece Weight kg 900
6 Machine Dimensions (L×W×H) mm 2265x1865x2100
7 Machine Weight kg 3200

Electrical Parameters
No. Description Unit Specification
1 Max. Cutting Speed mm²/min 180
2 Wire Electrode Diameter mm Φ0.18~Φ0.25
3 Machining Precision (Cutting the octagon) mm ≤0.012/10мм
4 Taper/Workpiece Height 6°/100mm
5 Power Consumption kw 3
6 Surface roughness μm Single cut Ra<2.5
*Multi cut Ra<1.0
7 High pressure water tank Multi-stage filter system
8 Plastic water jet plate; Bronze spout
9 Control method of Z-axis manual, transport wire tube, cooling system Controlled by the program and the NC panel
10 Repeating position precision of X, Y-axis μm ±1
11 Guide rail type of U,V-axis railroad rail
12 Speed regulation of transport wire tube Integrated frequency inverter
13 Number of control axes 5
14 Power Supply AC380V, 50Hz

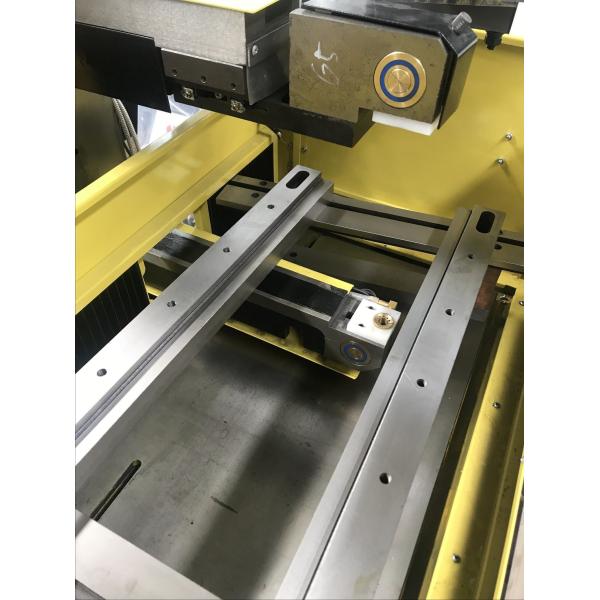

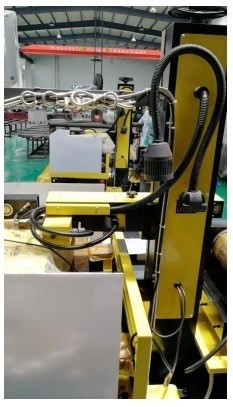

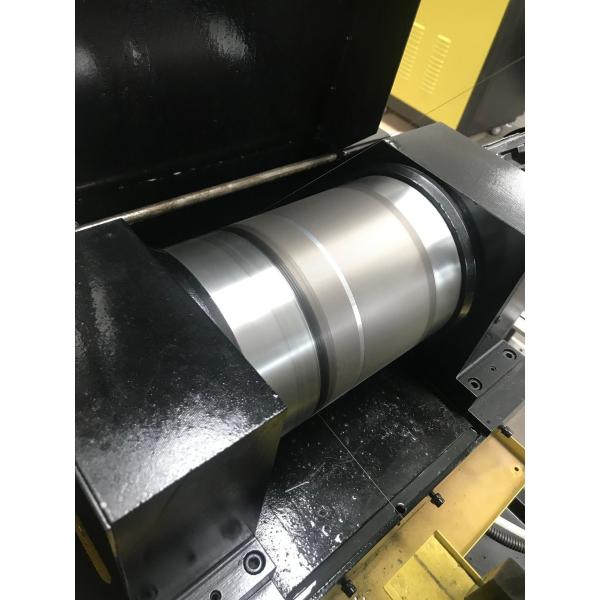

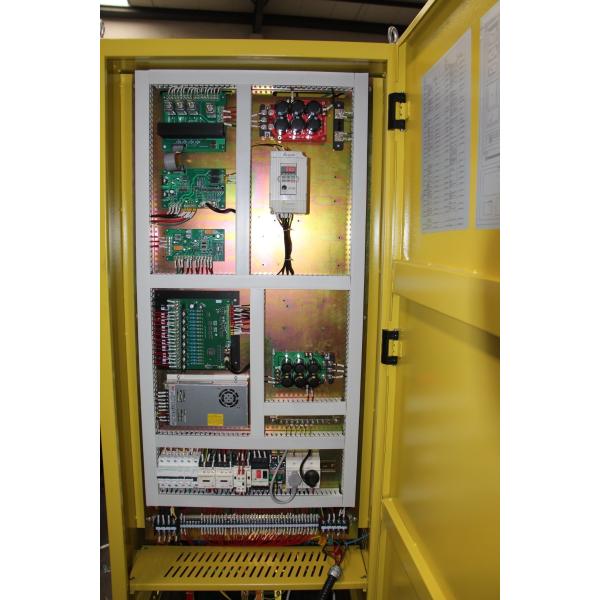

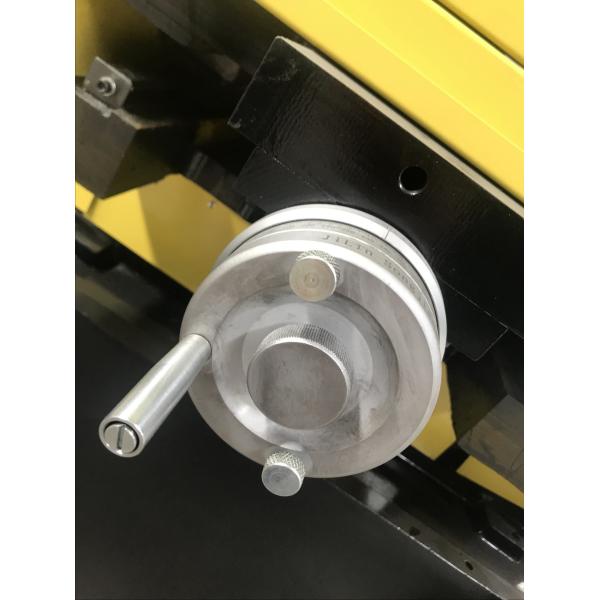

Detailed Photos

Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools

Packaging & Shipping

Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools

Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools

Company Profile

Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools
Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools

Super Molybdenum Wire Cutting EDM Dk7763 Economical CNC Machine Tools
