Specifications
Certification :
CE
Place of Origin :
China
Brand Name :
TOSUN
MOQ :
1 unit
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability :
1000PCS/Year
Model NO. :
SE800
Numerical Control :
CNC/MNC
Processing Precision :
0.01~0.02(mm)
Performance Classification :
Economical CNC Machine Tools
Condition :
New
Transport Package :
Wooden Case
Specification :
2900x2500x2150
Trademark :
TOSUN
Origin :
Suzhou
HS Code :
8456301090
After-sales Service :
Yes
Warranty :
1 Year
Application :
Metal
Process Usage :
Metal-Cutting CNC Machine Tools
Movement Method :
Linear Control
Control Method :
Open-Loop Control
Customization :
Available | Customized Request
Description

Product Description

CNC Molybdenum Wire Cutting EDM Machine (Super Economical) DK7780 is a special machine designed for mass and high efficiency processing. The machine has high efficiency, high processing accuracy, good smoothness of multiple cutting, simple operations, and high consistency of machine tool processing. The machine is suitable for cutting work pieces in large quantities. Compared to similar machines, our SE800 offers a remarkable 5%-10% increase in processing efficiency, saving you valuable time and resources.

Product Parameters

Equipment Specification
No. Description Unit Specification
1 Model SE800
2 Worktable Size (L×W) mm 870x1200
3 Worktable Travel (X×Y) mm 800x1000
4 Max. Workpiece Height mm 800
5 Max. Workpiece Weight kg 2000
6 Machine Dimensions (L×W×H) mm 2900x2500x2150
7 Machine Weight kg 4000

Electrical Parameters
No. Description Unit Specification
1 Max. Cutting Speed mm²/min 180
2 Wire Electrode Diameter mm Φ0.18~Φ0.25
3 Machining Precision (Cutting the octagon) mm ≤0.012/10мм
4 Taper/Workpiece Height 6°/100mm
5 Power Consumption kw 3
6 Surface roughness μm Single cut Ra<2.5
*Multi cut Ra<1.0
7 High pressure water tank Multi-stage filter system
8 Plastic water jet plate; Bronze spout
9 Control method of Z-axis manual, transport wire tube, cooling system Controlled by the program and the NC panel
10 Repeating position precision of X, Y-axis μm ±1
11 Guide rail type of U,V-axis railroad rail
12 Speed regulation of transport wire tube Integrated frequency inverter
13 Number of control axes 5
14 Power Supply AC380V, 50Hz

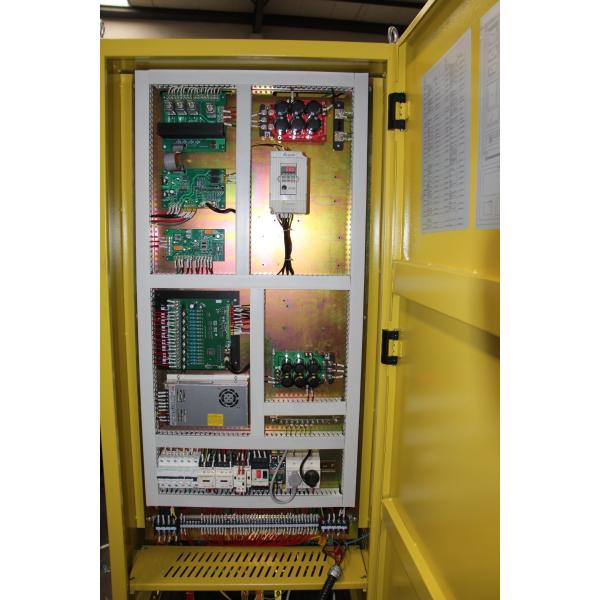

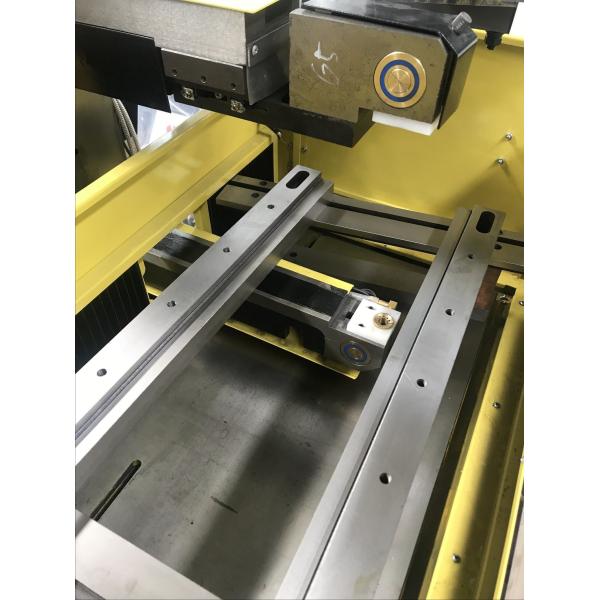

Detailed Photos
