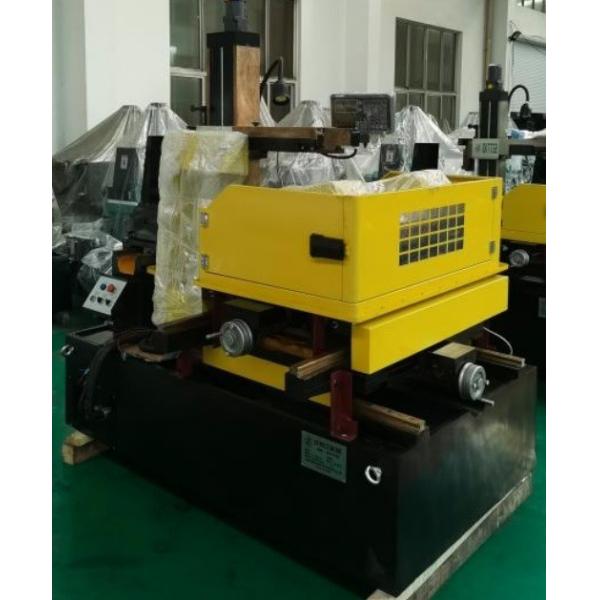

S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost
S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost
S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost
S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost
S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost
S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost
S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost
S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost
S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost
S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost
S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost
S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost
Specifications
Model NO. :
S250
Process Usage :
Metal-Cutting CNC Machine Tools
Movement Method :
Linear Control
Control Method :
Open-Loop Control
Numerical Control :
CNC/MNC
Processing Precision :
0.01~0.02(mm)
Performance Classification :
Mid-Range CNC Machine Tools
Certification :
ISO 9001
Condition :
New
Transport Package :
Wooden Case
Specification :
1500× 900× 1700
Trademark :
TOSUN
Origin :
Suzhou
HS Code :
8456301090
Supply Ability :
1000PCS/Year
Package Size :
1500.00cm * 900.00cm * 1700.00cm
Package Gross Weight :
1000.000kg
After-sales Service :
Yes
Warranty :
1 Year
Application :
Metal
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Place of Origin :
China
Brand Name :
TOSUN
MOQ :
1 unit
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Description

Product Description

Standard type CNC Wire Cutting Discharge Machine S250 is the perfect combination of high cutting efficiency and good cutting smoothness. It has the characteristics of stable processing performance, convenient setting of operation and setting, high precision and good consistency in processing.
The equipment is suitable for work piece processing with relatively high precision and roughness requirements. And the equipment is also suitable for processing molds.

Product Parameters

Equipment Specification
No. Description Unit Specification
1 Model S250
2 Worktable Size (L×W) mm 300×500
3 Worktable Travel (X×Y) mm 250×320
4 Max. Workpiece Height mm 350
5 Max. Workpiece Weight kg 300
6 Machine Dimensions (L×W×H) mm 1500×900×1700
7 Machine Weight kg 1000

Electrical Parameters
No. Description Unit Specification
1 Max. Cutting Speed mm²/min 200
2 Wire Electrode Diameter mm Φ0.10~Φ0.25
3 Machining Precision (Cutting the octagon in 10mm) mm ≤0.012/10мм
4 Taper/Workpiece Height 6°/100mm
5 Power Consumption kw 3
6 Surface roughness um Single cut Ra<2.0,
*Multiple cut Ra<0.8
7 High pressure water tank Multi-stage filter system
8 Plastic water jet plate; Bronze spout
9 Control method of wire spool, cooling system Controlled by the program and the NC panel
10 Repeating position precision of X, Y-axis μm ±1
11 Guide rail type Line guide rail
12 Speed regulation of transport wire tube Converter
13 Number of control axes 5
14 Power Supply AC380V, 50Hz

Detailed Photos

S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost

Packaging & Shipping

S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost

S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost

Company Profile

S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost
S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost

S250 CNC Electric Discharge Wire Cutting Machine Precise Processing and Shipping Cost
