Specifications
Certification :
ISO 9001
Place of Origin :
China
Brand Name :
TOSUN
MOQ :
1 unit
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability :
1000PCS/Year
Model NO. :
A400
Numerical Control :
CNC/MNC
Processing Precision :
0.01~0.02(mm)
Performance Classification :
Economical CNC Machine Tools
Condition :
New
Transport Package :
Wooden Case
Specification :
1850× 1420× 2100
Trademark :
TOSUN
Origin :
Suzhou
HS Code :
8456301090
After-sales Service :
Yes
Warranty :
1 Year
Application :
Metal
Process Usage :
Metal-Cutting CNC Machine Tools
Movement Method :
Linear Control
Control Method :
Open-Loop Control
Customization :
Available | Customized Request
Description

Product Description

Servo Motor CNC Electroerosive Wire Cut Machine (Advanced) A400C is our state-of-the-art wire cutting machine. With its exceptional cutting accuracy and consistency, this machine is perfect for precision work piece processing and precision die processing.

At Jilin Songjiang Tech-trade Co., Ltd., we take pride in delivering top-notch equipment that meets the highest standards. Our CNC EDM Electroerosive Machine A320C is no exception. With its advanced features and cutting-edge technology, it's a game-changer in the industry.

Product Parameters

Equipment Specification
No. Description Unit Specification
1 Model
A400
2 Worktable Size (L×W) mm 570×800
3 Worktable Travel (X×Y) mm 400×500
4 Max. Workpiece Height mm 250
5 Max. Workpiece Weight kg 400
6 Machine Dimensions (L×W×H) mm 1850×1420×2100
7 Machine Weight kg 1900

Electrical Parameters
No. Description Unit Specification
1 Max. cutting speed mm²/min 200
2 Wire electrode diameter mm Φ0.10~Φ0.25
3 Machining precision (Cutting the octagon in 10mm) mm ≤0.010/10mm
4 Taper/Workpiece height *3°/100mm
5 Power consumption kw 3
6 Surface roughness μm Single cut Ra<2.0,
**Multiple cut Ra<0.8
7 High pressure water tank Multi-stage filter system
8 Wire guided spinneret Ruby spinneret
9 Control method of wire spool, cooling system Controlled by the program and the NC panel
10 Repeating position precision of X, Y-axis μm ±1
11 Guide rail type Linear guide rail
12 Speed regulation of transport wire tube Converter
13 Number of control axes 5
14 Power Supply AC380V, 50Hz

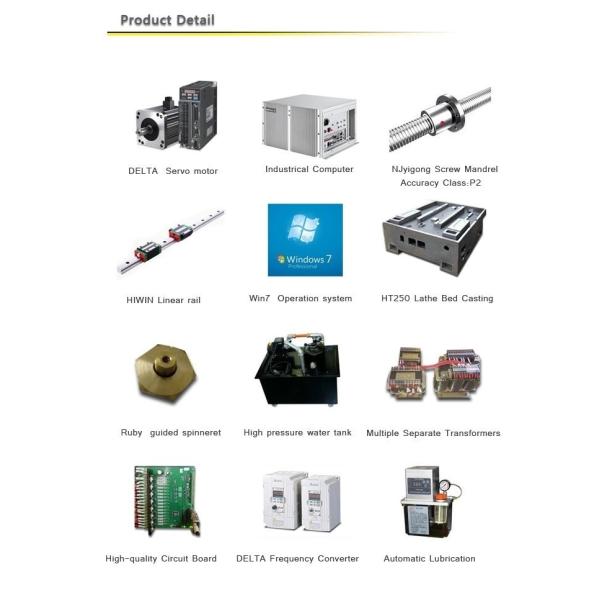

Detailed Photos
