Specifications
Certification :
ISO 9001
Place of Origin :
China
Brand Name :
TOSUN
MOQ :
1 unit
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability :
1000PCS/Year
Model NO. :
SE250
Precision :
High Precision
Condition :
New
Transport Package :
Wooden Case
Specification :
1500× 900× 1450
Trademark :
TOSUN
Origin :
Suzhou
HS Code :
8456301090
After-sales Service :
Yes
Warranty :
1 Year
Type :
Wire Cutting
Application :
Metallurgy, Universal, Stainless Steel, Electrical, Aviation, Light Industry
Processing Method :
Spark Working
Automatic Grade :
Automatic
Customization :
Available | Customized Request
Description

Product Description

CNC Medium Speed Wire Cut EDM Machine SE250 is a special machine designed for mass and high efficiency processing. The machine has high efficiency, high processing accuracy, good smoothness of multiple cutting, simple operations, and high consistency of machine tool processing. The machine is suitable for cutting work pieces in large quantities. Its processing effiency is about 5%-10% higher than that of other similar machines.

Product Parameters

Equipment Specification
No. Description Unit Specification
1 Model SE250
2 Worktable Size (L×W) mm 300×490
3 Worktable Travel (X×Y) mm 250×320
4 Max. Workpiece Height mm 350
5 Max. Workpiece Weight kg 250
6 Machine Dimensions (L×W×H) mm 1500×900×1450
7 Machine Weight kg 1000
Electrical Parameters
No. Description Unit Specification
1 Max. Cutting Speed mm²/min 180
2 Wire Electrode Diameter mm Φ0.18~Φ0.25
3 Machining Precision (Cutting the octagon) mm ≤0.012/10мм
4 Taper/Workpiece Height 6°/100mm
5 Power Consumption kw 3
6 Surface roughness um Single cut Ra<2.5
*Multi cut Ra<1.0
7 High pressure water tank Multi-stage filter system
8 Plastic water jet plate; Bronze spout
9 Control method of Z-axis manual, transport wire tube, cooling system Controlled by the program and the NC panel
10 Repeating position precision of X, Y-axis μm ±1
11 Guide rail type of U,V-axis railroad rail
12 Speed regulation of transport wire tube Integrated frequency inverter
13 Number of control axes 5
14 Power Supply AC380V, 50Hz

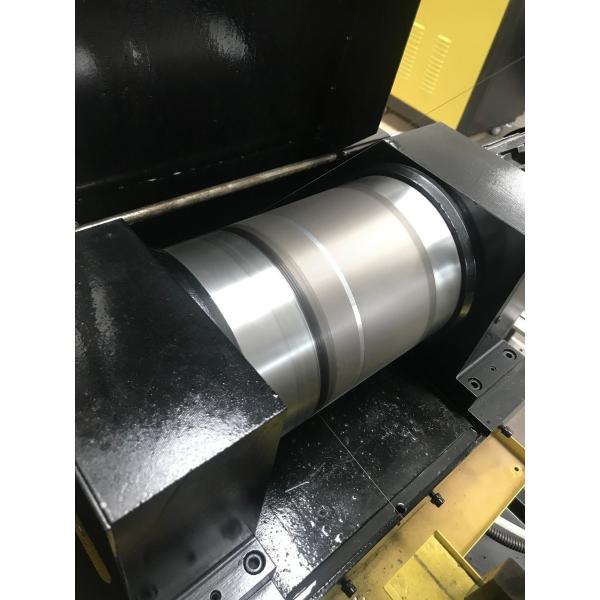

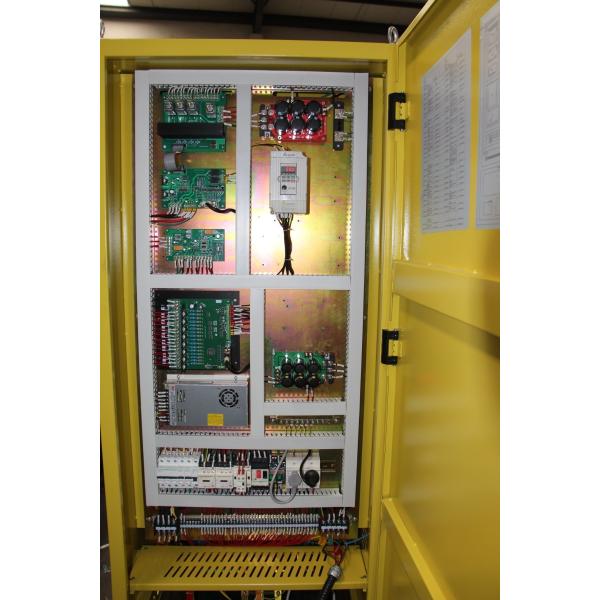

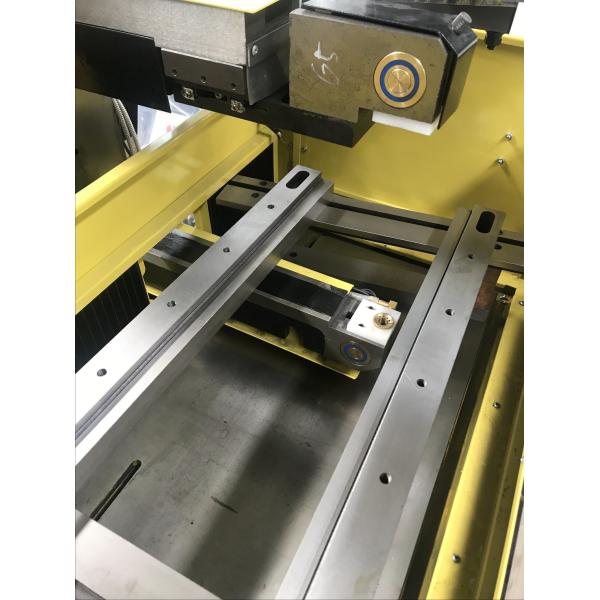

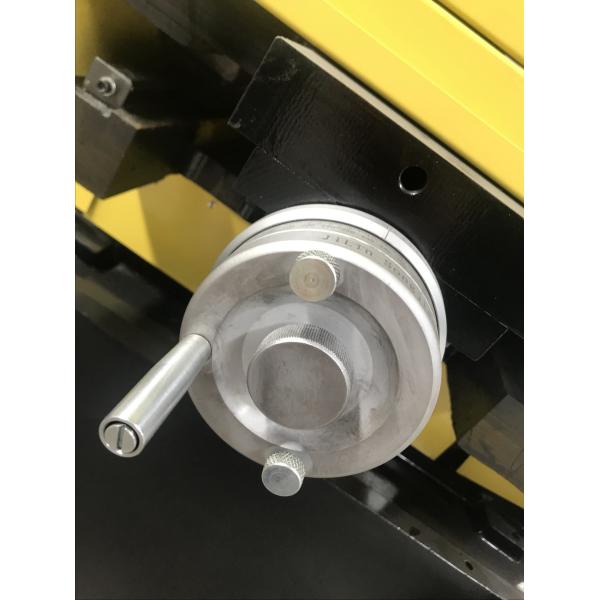

Detailed Photos

CNC Medium Speed Wire Cut EDM Machine SE250

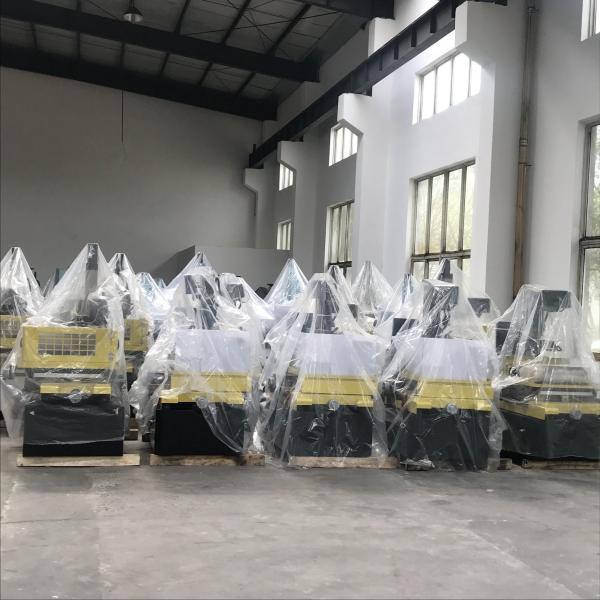

Packaging & Shipping

CNC Medium Speed Wire Cut EDM Machine SE250

CNC Medium Speed Wire Cut EDM Machine SE250

Company Profile

CNC Medium Speed Wire Cut EDM Machine SE250
CNC Medium Speed Wire Cut EDM Machine SE250

CNC Medium Speed Wire Cut EDM Machine SE250
