Specifications
Model NO. :
SJD706
Numerical Control :
CNC/MNC
Performance Classification :
High-End CNC Machine Tools
Certification :
ISO 9001
Condition :
New
Transport Package :
Wooden Case
Specification :
2300x2100x2500
Trademark :
TOSUN
Origin :
Suzhou
HS Code :
8456301090
Supply Ability :
1000PCS/Year
After-sales Service :
Yes
Warranty :
1 Year
Application :
Metal
Process Usage :
Metal-Drilling CNC Machine Tools
Movement Method :
Linear Control
Control Method :
Open-Loop Control
Customization :
Available | Customized Request
Place of Origin :
China
Brand Name :
TOSUN
MOQ :
1 unit
Price :
Negotiable
Packaging Details :
Wooden Case
Delivery Time :
Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Description

Product Description

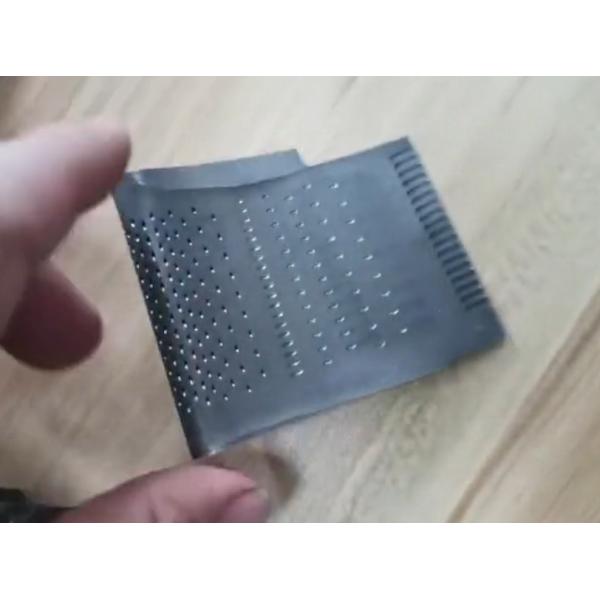

SJD706 is mainly used for electric discharge hole drilling on three-dimensional surfaces, which can process various conductive materials and is suitable for blind hole and through-hole machining. It is specialized for drilling turbine blade film cooling holes.

Features:

  1. Bullhead ram type mechanical structure
  2. The smallest aperture≤0.2mm
  3. Cradle type turntable A,C axis
  4. X, Y, Z, S, B,C axis position loop control can be achieved
  5. Film cooling holes at any angle machining in one time setup
  6. Automatically determine the penetration hole and depth control
  7. Patented inverted cone machining
  8. Processing data can be traced back
  9. Multi-coordinate and G code programming
  10. Pneumatic centering of the electrode shank ER collet
  11. Offline electrode replacement
  12. Memory origin position anytime
  13. AC servo motor with absolute encoder
  14. Deionized water treatment system
  15. The slide mechanical structure and precision in long-term
  16. Online workpiece measurement
  17. Hand box and encoder moving

Product Parameters

No. Description Unit Specification
1 Model SJD706
2 Worktable Size (L×W) mm Φ250
3 X,Y,Z-axis Travel mm 400×300×300
4 S-axis Travel mm 400
5 B-axis Travel ° ±90
6 C-axis Travel ° 0-360
7 Max. Workpiece Height mm 300
8 Max. Workpiece Weight Kg 25
9 Max. Working Solution Pressure Mpa 10
10 Max. Working Current A 30
11 Electrode Wire Diameter mm Φ0.15~Φ3.0
12 Max. Drilling Speed mm/min 30-60
13 Max. Depth Diameter Ratio 1:300
14 Machine Dimension mm 2300x2100x2500

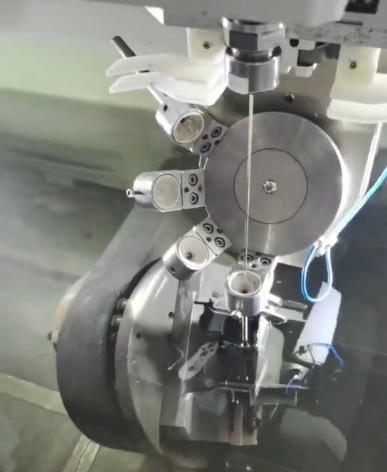

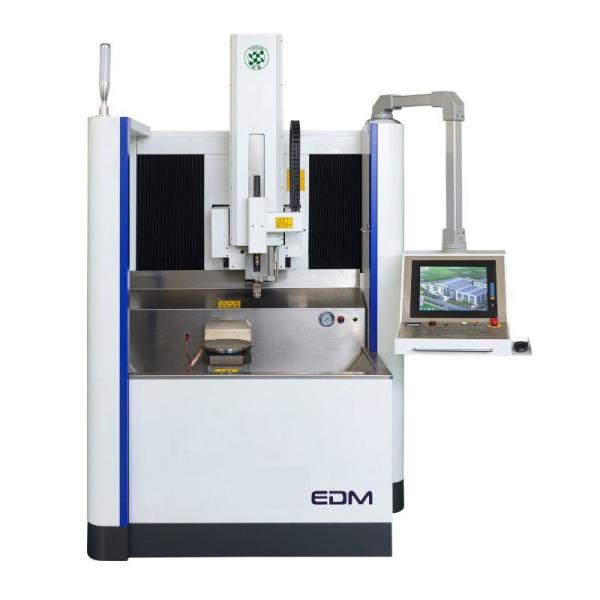

Detailed Photos
