Specifications
Brand Name :
Womala
Model Number :
31253515
Certification :
.
Place of Origin :
China
MOQ :
10pcs
Price :
34$-38$
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
7-15Days
Packaging Details :
Natural packaging
Product name :
Door Glass Lift Bracket
OE number :
31253515
Applicable models :
for Volvo S40 V50
Quality :
High Quality
Warranty :
18 Months
Service :
Professional Service
Description

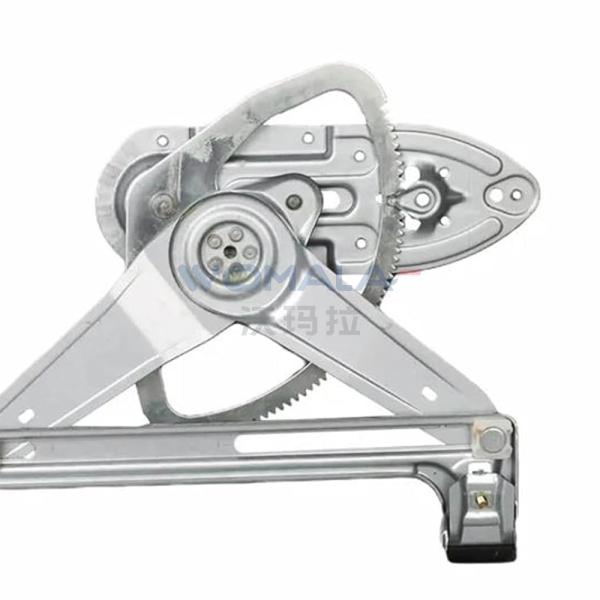

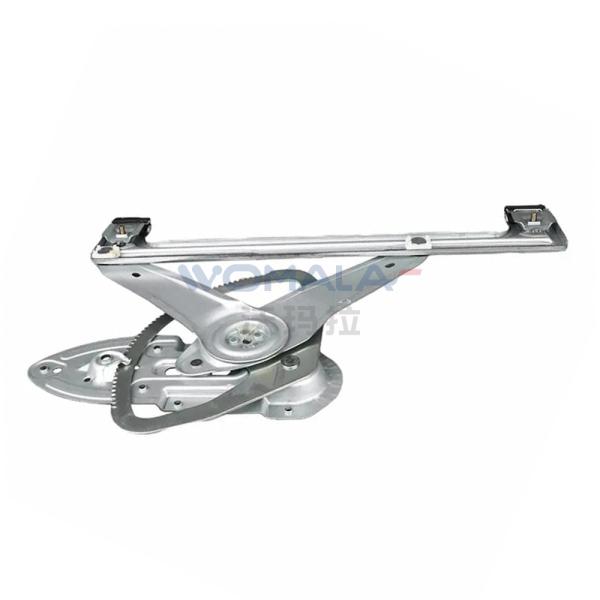

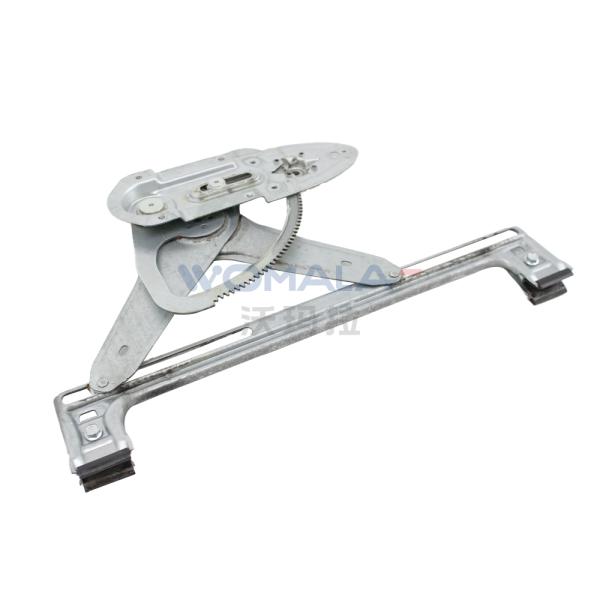

Auto Parts Window Lift Mechanism OE 31253515 Rear Left Door Glass Lift Bracket for Volvo S40 V50


The Rear Left Window Lift Mechanism (Glass Lift Bracket, OE Number: 31253515) is a key component in the power window system of select Volvo models, responsible for guiding and stabilizing the rear left door glass during elevation and lowering. Constructed from high-strength steel with a corrosion-resistant coating (electrophoretic deposition) and reinforced plastic pulleys, it combines structural rigidity with smooth operation. Unlike generic brackets, this OE part features precision-engineered tracks, mounting points, and cable routing that align perfectly with the door panel and window motor of compatible models. Its design ensures the glass moves vertically without tilting or jamming, even after thousands of cycles, while withstanding temperature extremes (-40°C to 80°C) and exposure to moisture.


Core Functions

  • Glass Stabilization: Guides the rear left window along a fixed vertical path, preventing lateral movement that could cause the glass to bind, scratch the door frame, or shatter during operation.
  • Load Distribution: Bears the weight of the window glass (typically 1.5–2.5 kg) and distributes stress evenly across the lift mechanism, reducing strain on the motor and cables to extend the system’s lifespan.
  • Smooth Operation: Incorporates low-friction pulleys and lubricated tracks that minimize noise (≤35 dB during movement) and ensure consistent, jerk-free window movement—critical for user comfort.
  • Safety Integration: Works with the window motor’s anti-pinch sensor by maintaining stable glass positioning, ensuring the system can detect obstructions and reverse direction to prevent injury.



Compatible Vehicles

This rear left window lift bracket is specifically engineered for the following Volvo models:


Model Applicable Years
Volvo S40 (04-) 2004–2012
Volvo V50 2004–2012


As a direct OE replacement, it installs seamlessly using the vehicle’s original hardware, including bolts and clips, ensuring a secure fit that restores full functionality to the rear left window. Regular inspection for bent tracks, worn pulleys, or loose fasteners is recommended—especially after door impacts or exposure to harsh conditions—to maintain optimal performance and prevent window malfunctions.

Womala Window Lift Mechanism OE 31253515 Rear Left Door Glass Lift Bracket for Volvo S40 V50



Frequently Asked Questions (FAQ)


Q1: How to determine if the thermostat is faulty?

A1: A thermostat failure usually causes the following symptoms:

Engine overheating: The thermostat is stuck in the closed state, preventing the coolant from entering the radiator.

Slow engine heating: The thermostat is stuck in the open state, and the coolant is always circulating, causing the engine to be unable to reach normal operating temperature for a long time.

Increased fuel consumption: The engine does not work at the optimal temperature, the combustion efficiency will be reduced, resulting in increased fuel consumption.


Q2: What should be paid attention to when replacing the LR062498 thermostat?

A2: It is recommended to be replaced by a professional technician, and pay attention to the following points:

Operate when the engine is cold to prevent burns.

Drain the old coolant correctly.

Make sure the seal is installed in place during installation to prevent coolant leakage.

After replacement, the cooling system needs to be vented to prevent "air blockage" from affecting the cooling effect.



Why choose us?


1. We have 5 branches and deep cooperation with 50+ factories (including 5 joint-stock enterprises). 15,000㎡ production base, 10,000+ SKU inventory, to ensure timely delivery of orders.
2. With 13 years of experience in Volvo accessories industry, we can provide accurate product matching and technical solutions. We provide one-stop procurement services to save customers' time and cost.
3. We implement 10 strict quality inspection processes (such as noise detection, durability test, surface roughness test, etc.). The cooperative factories are supporting suppliers of international brands such as Bosch and Hella.
