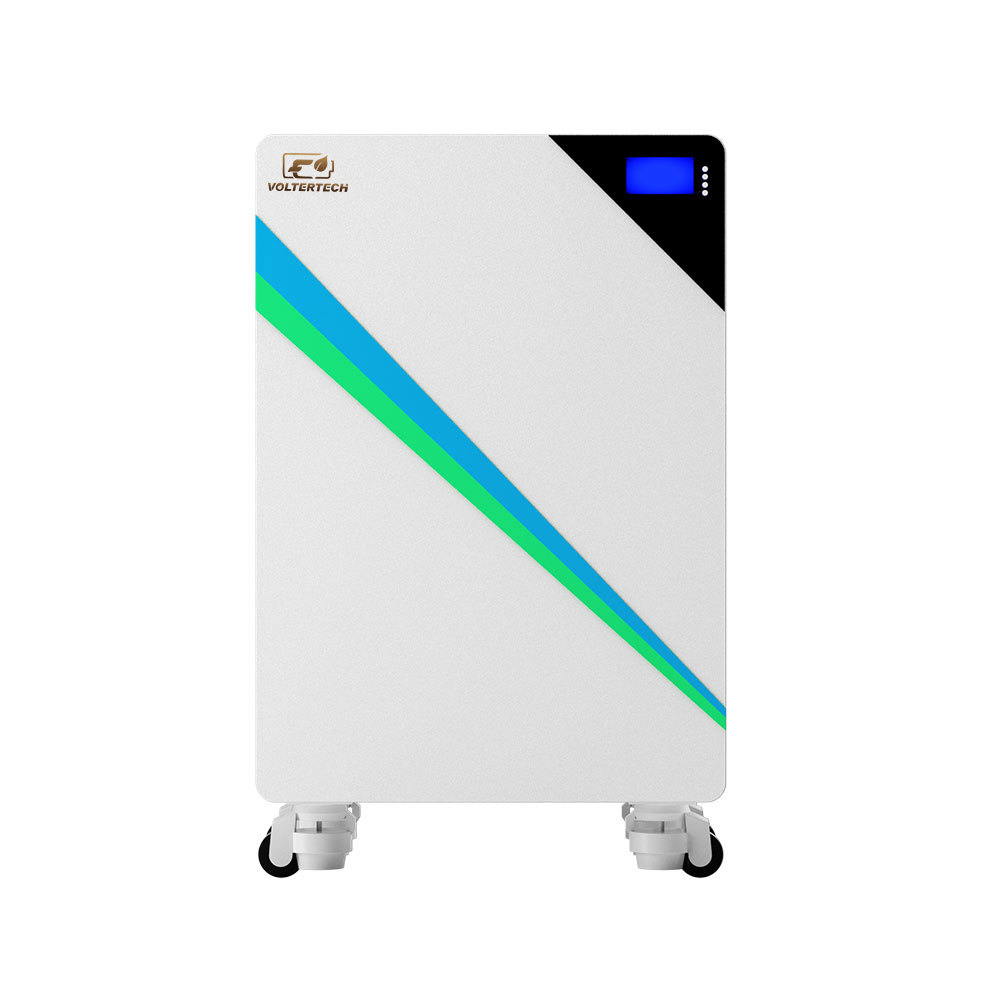

15.36kWh 51.2V Wall Mounted LiFePO4 Battery with Mobile App Monitoring

This high-capacity wall mounted LiFePO4 battery provides 15.36kWh of nominal energy on a 51.2V, 300Ah platform. It is designed for residential solar storage, home backup and other low-voltage projects requiring a larger energy reserve without using a floor-standing battery cabinet.

The battery operates as the DC storage section of the energy system. A compatible external inverter is required to manage photovoltaic charging, AC charging and household load output.

Larger Energy Reserve for Residential Solar

The 15.36kWh capacity can store daytime solar energy for evening consumption or maintain a planned reserve for household circuits. It can be evaluated for lighting, refrigeration, internet equipment, computers, security devices and other loads selected according to their daily energy use.

Battery energy and inverter power should be calculated separately. The battery determines the stored-energy reserve, while the inverter determines the AC output available to connected appliances.

Optional Mobile Battery Monitoring

RS485, RS232 and CAN interfaces support communication with compatible inverter and monitoring equipment. The inverter model and supported battery protocol should be confirmed before ordering.

Bluetooth and mobile application access are available with an additional charge. The supplied monitoring configuration and available battery data should be confirmed during quotation.

Side Cable Routing and Wall Installation

The battery uses a side cable outlet, supporting an organized equipment-wall layout when the cable route is planned beside the enclosure. The cabinet measures 795 × 500 × 270mm and weighs approximately 117kg.

The supporting wall or mounting structure must be suitable for the battery weight. Installation planning should also consider access, cable clearance and the space required for routine inspection.

Modular Capacity Expansion

The specification supports up to sixteen battery units in parallel. Larger systems require compatible inverter settings, communication addressing, battery cables, protection equipment and a suitable capacity-expansion plan.

Its IP21 enclosure requires a dry indoor or protected technical location. The battery should remain protected from rain, direct water exposure and condensation.

15.36kWh Wall Mounted Battery Specifications

Residential Wall Battery FAQ

Is this supplied as a complete home solar system?

No. It is a battery unit. The inverter, solar array and AC distribution equipment are selected separately.

How should the required residential capacity be calculated?

Calculate the energy used by selected household loads during the required operating period and allow for conversion losses and retained reserve.

Is mobile application monitoring included as standard?

No. Bluetooth and mobile application support are listed as optional configurations with an additional charge.

What should be considered for the side cable outlet?

The equipment layout should reserve suitable side clearance for battery cables, communication wiring and service access.

Can this battery be installed in an exposed outdoor location?

No. The IP21 enclosure requires a dry indoor or protected technical location.
