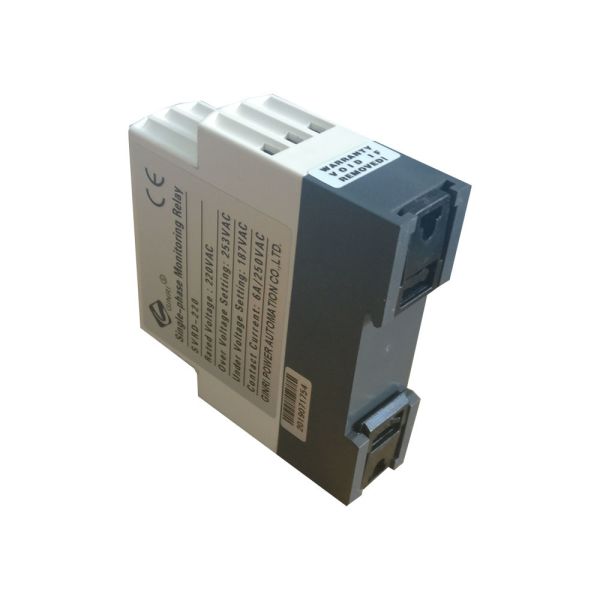

1 Phase Over Under Voltage Protection Monitoring Relay With LED Display
1 Phase Over Under Voltage Protection Monitoring Relay With LED Display
1 Phase Over Under Voltage Protection Monitoring Relay With LED Display
1 Phase Over Under Voltage Protection Monitoring Relay With LED Display
Specifications
Brand Name :
GINRI
Model Number :
SVRD-220
Certification :
CE
Place of Origin :
China
MOQ :
10Pcs per month
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
20000Pcs per month
Delivery Time :
5-8 working days
Packaging Details :
1 relay in individual box
rated voltage :
110vac
useage :
protective
size :
miniature
Output contact :
2CO
Description

Single Phase Voltage Monitoring Relay SVRD-220

♦ Features

-- Single-phase monitoring of over- and undervoltage

-- Powered by the measuring circuit

-- 2 C/O contacts

-- 3 LEDs for status indication

♦ Protective Functions

-- Overvoltage

-- Undervoltage

♦ Typical Applications

• Pumps • Fans

• Blowers • Motors

• Compressors

♦ Approvals

• CE • CCC

♦ Technical data

Type SVRD-220
Measuring circuit L,N
Rated voltage

110VAC,220VAC ,440VAC

240VAV,250VAC,50/60Hz
Monitoring functions overvoltage ,undervoltage
Voltage setting range

Type suffix Undervoltage Overvoltage

Blank +15% -15%

A +10% -10%

B +12.5% -10%

C +15% -12.5%

T Customized Customized
Indicators Overvoltage,undervoltage ,and normal
Output contacts 2 C/O
Contact capacity 6A,250VAC
Diemnsions(H*W*D) 79*23*79mm
Mounting DIN rail

1 Phase Over Under Voltage Protection Monitoring Relay With LED Display

PLC output amplifiers (environmental protection equipment, numerical control and automation equipment, automobile, plastic machinery, hydraulic machinery, ceramic foam machinery, woodworking machinery, machinery) and so on using the run.
