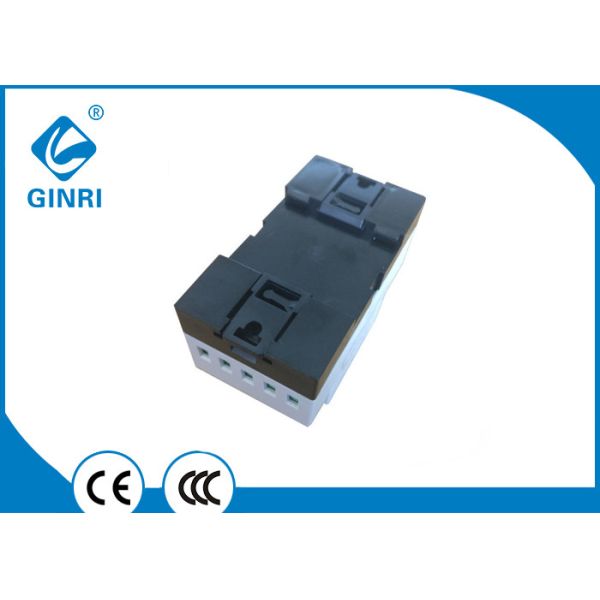

Sequence Protect Three Phase Voltage Monitoring Relay For Packaging Machine
Sequence Protect Three Phase Voltage Monitoring Relay For Packaging Machine
Sequence Protect Three Phase Voltage Monitoring Relay For Packaging Machine
Sequence Protect Three Phase Voltage Monitoring Relay For Packaging Machine
Specifications
Brand Name :
GINRI
Model Number :
JVR800-2
Certification :
CE
Place of Origin :
China
MOQ :
50Pcs
Payment Terms :
L/C, T/T, Western Union，Paypal
Supply Ability :
50000Pcs
Delivery Time :
5-8 days
Packaging Details :
1 relay in one box
Rated Voltage :
208-480VAC
Delay Time :
0-999S
Description


Sequence Protect Three Phase Voltage Monitoring Relay For Packaging Machine


♦ Technical date

ModelJVR800-2
Measuring circuitL1,L2,L3
Rated voltage208~480VAC,50/60Hz
Monitoring functionsphase sequence, phase loss, overvolatege, undervoltage,voltage unbalance, timer, counter
Overvoltage setting range200-600V
Undervoltage setting range150-500V
Voltage hysteresis1-20V
Delay time for overvoltage and undervoltage0.1-30s
voltage unbalance ratio1-50%
voltage unbalance hysteresis1-10%
voltage unbalance delay time0.1-30s
Delay time for phase loss0.1-30s
Delay time for phase sequence0.1-30s
Start delay time0-999s
Auto reset modeON/OFF
Auto reset time0.1-999s
Timer and counter inputAC/DC 80-450V
IndicatorsLCD indicating voltage,current,operation status
Output contacts1 C/O,1NC
Contact capacity6A ,250VAC
Dimensions (H x W x D)80×43×54mm
Mounting

DIN rail





































♦
Protective Function

-- Phase sequence
-- Phase loss
-- Overvoltage
-- Undervoltage
-- Voltage unbalance
-- Timer and Counter


Sequence Protect Three Phase Voltage Monitoring Relay For Packaging Machine
