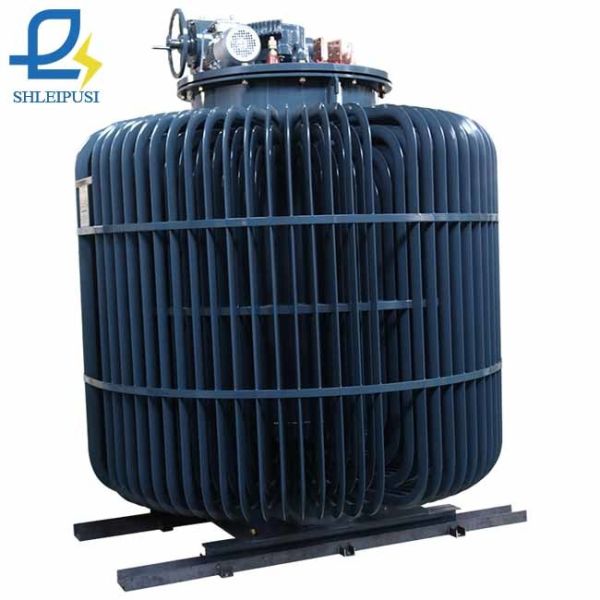

High Precision 3 Phase Variac Transformer Oil Type Adjustable 0-700V Output
High Precision 3 Phase Variac Transformer Oil Type Adjustable 0-700V Output
High Precision 3 Phase Variac Transformer Oil Type Adjustable 0-700V Output
High Precision 3 Phase Variac Transformer Oil Type Adjustable 0-700V Output
High Precision 3 Phase Variac Transformer Oil Type Adjustable 0-700V Output
High Precision 3 Phase Variac Transformer Oil Type Adjustable 0-700V Output
High Precision 3 Phase Variac Transformer Oil Type Adjustable 0-700V Output
High Precision 3 Phase Variac Transformer Oil Type Adjustable 0-700V Output
Specifications
Brand Name :
SHLEIPUSI Or Support OEM/ODM Service
Model Number :
TSJA-1250KVA
Certification :
CE;ISO9001;UL
Place of Origin :
Shanghai
MOQ :
1
Price :
1 pc≤Qty≤5 pcs 24500USD; 5 pcs＜Qty≤100 pcs 23800 USD; 100pcs＜Qty 23529USD
Payment Terms :
T/T,D/P,D/A,L/C,Western Union
Supply Ability :
1000000PCS
Delivery Time :
1 pc≤Qty≤5 pcs 1-14 working days; 5 pcs＜Qty≤100 pcs 14-30 working days; 100pcs＜Qty More than 30 working days
Packaging Details :
Non-fumigation plywood case
Product name :
Three phase oil-immersed variac
Place of origin :
Shanghai, PRC
Rated capacity :
1250KVA Or Customized
Product model :
TSJA-1250KVA
Rated input voltage :
380V Or Customized
Output precision :
±1%
Working temperature :
－15℃~＋45℃
Output voltage :
0-700V Adjustable Or Customized
Description

Oil-immersed 3 Phase Variac Transformer | TSJA Series Industrial Adjustable Voltage Regulator

Product Overview

Our TSJA Series Oil-immersed 3 Phase Variac Transformer, developed and manufactured by Shanghai Lepus Electrical Equipment Co., Ltd., is a heavy-duty, energy-saving industrial AC voltage regulation solution engineered for continuous, high-power voltage adjustment in rigorous industrial scenarios. This oil-cooled contact-type variac transformer features ONAN natural oil cooling for superior heat dissipation, full-capacity operation, zero additional waveform distortion, and exceptional instantaneous overload tolerance, adapting seamlessly to resistive, inductive, and capacitive loads. It is the trusted choice for electrical engineers, factory operators and industrial clients worldwide, widely deployed in motor testing, voltage test benches, CNC machine tools, photovoltaic systems, EV charging stations, laser cutting equipment, and power transmission systems.

Key Features & Competitive Advantages

Purpose-built for global heavy-duty industrial applications, this oil-immersed 3 phase variac transformer delivers industry-leading performance:
  • Superior Thermal Performance: Premium 25# transformer oil enables fast heat dissipation, low temperature rise, and excellent insulation for long-term continuous operation.
  • High Precision & Stable Output: ±1% output accuracy with zero waveform distortion, ensuring reliable voltage control for sensitive motor testing and precision industrial equipment.
  • Premium Industrial Build: Oxygen-free copper windings for high conductivity and low loss, new low-noise high-flux iron core, and high-strength steel enclosure for maximum durability and voltage stability.
  • Wide Adjustable Voltage Range: Standard 3 phase 380V input with 0-700V fully adjustable output, customizable to match global industrial power standards.
  • Safe & Reliable Design: High-insulation reinforced terminals, Class F insulation, and robust construction guarantee safe operation in harsh industrial environments.

Why Choose SHLEPUSI

As an ISO9001, CE and UL certified professional industrial variac transformer manufacturer, we serve clients across 60+ countries and regions in Central Asia, East Asia, South Asia, Africa, Europe, North and South America. We provide full OEM/ODM customization, including tailored rated capacity (50-2000KVA), voltage parameters, brand logo printing, and custom packaging to fit your unique requirements. Every unit undergoes strict multi-stage quality inspection and pre-shipment testing to ensure zero defects, backed by a 2-year warranty. We offer flexible global shipping with full Incoterms support, lifetime free technical guidance, and on-site engineer installation and debugging services, with a low minimum order quantity of 1 unit for all orders.

Technical Specifications

Core Parameter Standard Specification
Product Name Oil-immersed 3 Phase Variac Transformer
Standard Model TSJA-1250KVA (Fully Customizable)
Brand SHLEPUSI (OEM/ODM Supported)
Rated Capacity 1250KVA (Customizable 50-2000KVA)
Rated Input Voltage 3 Phase 380VAC (Customizable)
Rated Output Voltage 3 Phase 0-700VAC Adjustable (Customizable)
Working Frequency 50/60Hz
Output Precision ±1%
Insulation Class F
Cooling Method ONAN (Oil Natural Air Natural)
Display System Digital Voltage Display
Operating Temperature -15℃ to +45℃
Waveform Distortion No Additional Waveform Distortion
Certifications ISO9001, CE, UL
Warranty 2 Years

High Precision 3 Phase Variac Transformer Oil Type Adjustable 0-700V Output

High Precision 3 Phase Variac Transformer Oil Type Adjustable 0-700V Output

Frequently Asked Questions (FAQ)

Q1: What is your standard lead time for this oil-immersed variac transformer?
A: Standard in-stock orders ship within 3-7 working days. Customized or bulk orders take 10-30 days based on order specifications.
Q2: How do you ensure product quality?
A: We implement full-process quality inspection from raw material incoming to final assembly, with strict pre-shipment testing for every unit.
Q3: What are your accepted payment terms?
A: 30% deposit for standard products, minimum 50% advance payment for customized orders, with full balance settled before shipment.
Q4: Do you provide technical support for installation?
A: Yes. Our professional technical team offers full installation guidance, on-site engineer dispatch, and lifetime free telephone technical support.
Q5: What packaging do you use for international shipping?
A: Large industrial units use reinforced fumigated wooden cases for protection. Custom packaging is available upon request.
Q6: Do you accept OEM/ODM orders with our company logo?
A: Yes, we provide full OEM/ODM services, including custom logo printing on products and technical documents for eligible orders.
Q7: What are your main global markets?
A: We serve clients worldwide, covering Central Asia, East Asia, South Asia, Africa, Europe, North America and South America.
Q8: What is your monthly production capacity for oil-immersed variac transformers?
A: We produce up to 2,000 high-power industrial units monthly, supporting bulk orders of all sizes.
Q9: Can you customize rated capacity and voltage range?
A: Absolutely. We fully customize capacity from 50KVA to 2000KVA and voltage parameters to meet your specific industrial needs.
Q10: What is your minimum order quantity (MOQ)?
A: Our MOQ is 1 unit, accommodating both sample testing and large-scale bulk procurement needs.
