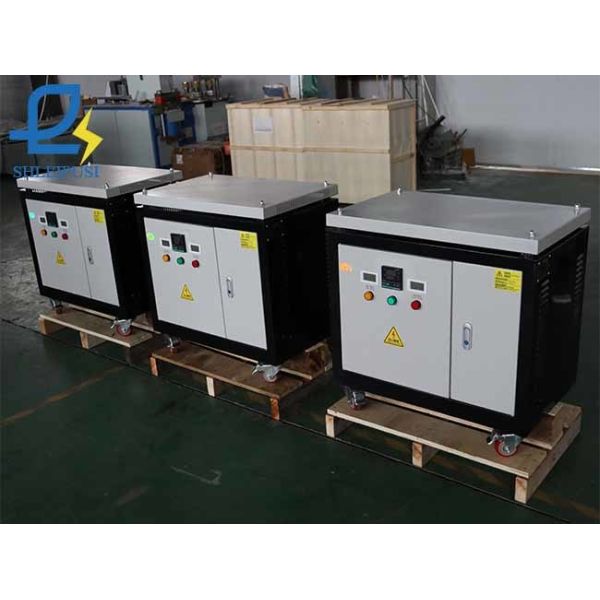

With temperature control 200KVA 150KVA Digital Display With Surge protection Voltage Transformer
With temperature control 200KVA 150KVA Digital Display With Surge protection Voltage Transformer
With temperature control 200KVA 150KVA Digital Display With Surge protection Voltage Transformer
With temperature control 200KVA 150KVA Digital Display With Surge protection Voltage Transformer
With temperature control 200KVA 150KVA Digital Display With Surge protection Voltage Transformer
With temperature control 200KVA 150KVA Digital Display With Surge protection Voltage Transformer
With temperature control 200KVA 150KVA Digital Display With Surge protection Voltage Transformer
With temperature control 200KVA 150KVA Digital Display With Surge protection Voltage Transformer
Specifications
Brand Name :
SHLEIPUSI Or Support OEM/ODM Service
Model Number :
SG-100KVA/150KVA/180KVA/200KVA Or Customized
Certification :
CE;ISO9001;UL
Place of Origin :
Shanghai
MOQ :
1
Price :
1 pc≤Qty≤5 pcs 1950USD; 5 pcs＜Qty≤100 pcs 1900USD; 100pcs＜Qty 1870USD
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,Alipay,Wechat
Supply Ability :
1000000PCS
Delivery Time :
1 pc≤Qty≤5 pcs 1-7 working days; 5 pcs＜Qty≤100 pcs 7-14 working days; 100pcs＜Qty More than 14 working days
Packaging Details :
Non-fumigation plywood case ; Reference packing size: 106X80X124CM; Reference weight: 525KG
Product name :
Three phase dry type voltage transformer
Place of origin :
Shanghai, PRC
Rated capacity :
100KVA/150KVA/180KVA/200KVA Or Customized
Product model :
SG-100KVA/150KVA/180KVA/200KVA Or Customized
Rated input voltage :
Three Phase 400V Or Customized
Rated output voltage :
Three phase 480V Or Customized
Output precision :
±2%
Working temperature :
－15℃~＋45℃
Insulation resistance :
≥5MΩ
Description

Three phase dry type voltage transformer with temperature control - Global Industrial Solution

Product Overview

Our three phase dry type voltage transformer with temperature control is a high-performance, reliable electrical device designed to stabilize and regulate three-phase voltage supply, integrated with advanced temperature control and multiple protection technologies. Suitable for global markets (Central Asia, East Asia, South Asia, Africa, South America, and North America), it is widely applied in diverse scenarios including robots, elevators, CNC machines, factories, laser cutting machines, air compressors, generators/alternators, import & export machines, medical machines, furnaces, blenders, EV chargers, inverters, photovoltaic systems, and other electrical places. This transformer effectively converts voltage levels, prevents equipment damage caused by voltage fluctuations and temperature anomalies, and safeguards the stable operation of the entire power system.

Core Features

  • Digital display: Clear data display for real-time monitoring of working status, including input voltage, input current, output voltage, and output current.
  • Practical accessories: Equipped with safety trip lock, universal wheel with brake (for easy movement and fixation), input indicator, output indicator, and heat emission hole.
  • Reliable terminals: Terminals with extremely strong insulation properties, ensuring safe operation.
  • Multiple protection functions: Over-voltage protection, over-current protection, under-voltage protection, short-circuit protection, low-temperature protection, high-temperature protection, and surge protection.
  • Efficient heat dissipation: Porous heat dissipation with cooling fan, quickly reducing operating temperature and extending the transformer’s service life.
  • High-quality materials: High-purity winding material (high conductivity, low temperature rise), new noise-free silicon steel (high magnetic flux, low temperature, energy-saving), high-insulation materials (withstanding 3500V voltage test), and high-quality nylon frame (ensuring good insulation performance).

Technical Specifications

Item
Details
Product Name
Three phase dry type voltage transformer with temperature control
Brand
SHLEIPUSI or support OEM/ODM service
Rated Capacity
100KVA 150KVA 180KVA 200KVA or customized
Product Model
SG-100KVA/150KVA/180KVA/200KVA Or Customized
Rated Input Voltage
Three phase 400V or Customized
Rated Output Voltage
Three phase 480V or customized
Working Frequency
50/60Hz
Display System
Digital display input voltage, input current, output voltage, output current
Output Precision
±2%
Insulation Class
F
Waveform Distortion
No additional waveform distortion
Working Temperature
－15℃~＋45℃
Cooling Method
Dry type air cooling (with draught fan)
Certificates
ISO9001; CE; UL
Warranty
2 Years

With temperature control 200KVA 150KVA Digital Display With Surge protection Voltage Transformer

With temperature control 200KVA 150KVA Digital Display With Surge protection Voltage Transformer

Our Services

Customized Service

Product customization: Customized appearance, parameters, and configuration for transformers, regulators and variacs; Brand customization: Support customized LOGO and company name on products and documentation; Custom packing: Wooden cases standard, other packing methods available upon request; Photography service: Free professional services for taking photos and producing videos of products.

Shipping Service

Various transportation modes: Sea, Air, Land, Express, Railway; Various transportation terms: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.

After-sales Service

Professional technical support via video calls for product usage guidance; Free replacement of components for quality issues during warranty period; On-site equipment installation by our engineers available.

Frequently Asked Questions (FAQ)

  • How long is the lead time? Normally 3-7 working days for standard products. 10 days for small quantities, 20-30 days for large quantities and customized products.
  • How do you control the product quality? Professional quality inspection from material receiving to manufacturing. Products shipped only when they meet standards.
  • What is the payment terms? 30% deposit for standard products, 50% advance for customized products, balance paid before shipment.
  • Could you provide technical support in product installation? Yes, we have a professional technical team responsible for product installation and application guidance.
  • What is the package of your products? Large products: strong wooden cases. Small products: cartons.
  • Can you put our logo on your product? Yes, we accept OEM and ODM. Logo placement available for large quantity orders.
  • Where is your major market? Central Asia, East Asia, South Asia, Africa, South America, and North America.
  • What about your capacity? 10,000 pcs/month for small-power products, 2,000 pcs/month for larger-power products.
  • What is the MOQ? Minimum order quantity is 1 set.
