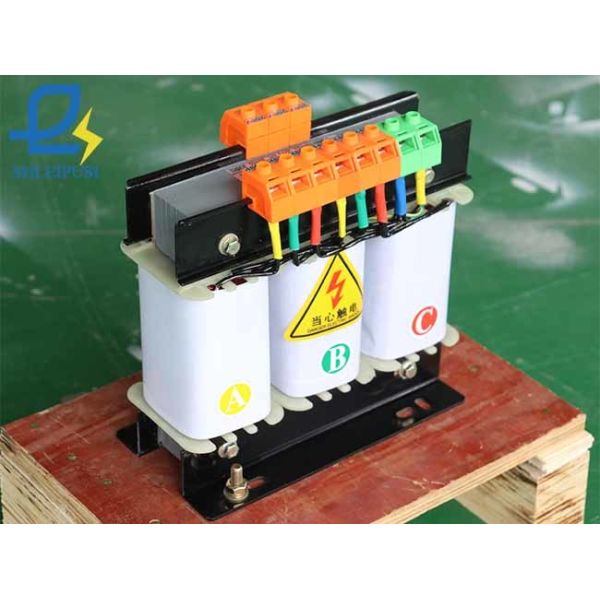

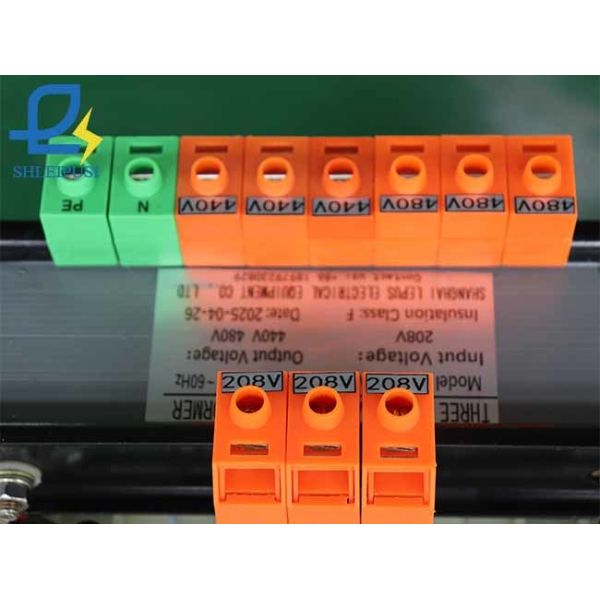

2KVA 3 Phase Voltage Transformer 208V To 440V 480V Step Up Transformer
2KVA 3 Phase Voltage Transformer 208V To 440V 480V Step Up Transformer
2KVA 3 Phase Voltage Transformer 208V To 440V 480V Step Up Transformer
2KVA 3 Phase Voltage Transformer 208V To 440V 480V Step Up Transformer
2KVA 3 Phase Voltage Transformer 208V To 440V 480V Step Up Transformer
2KVA 3 Phase Voltage Transformer 208V To 440V 480V Step Up Transformer
2KVA 3 Phase Voltage Transformer 208V To 440V 480V Step Up Transformer
2KVA 3 Phase Voltage Transformer 208V To 440V 480V Step Up Transformer
Specifications
Brand Name :
SHLEIPUSI Or Support OEM/ODM Service
Model Number :
SBK-2KVA Or Customized
Certification :
CE;ISO9001;UL
Place of Origin :
Shanghai
MOQ :
1
Price :
1 pc≤Qty≤5 pcs 132USD; 5 pcs＜Qty≤100 pcs 125USD; 100pcs＜Qty 110USD
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,Alipay,Wechat pay
Supply Ability :
1000000PCS
Delivery Time :
1 pc≤Qty≤5 pcs 1-7 working days; 5 pcs＜Qty≤100 pcs 7-14 working days; 100pcs＜Qty More than 14 working days
Packaging Details :
Non-fumigation plywood case ; Reference packing size: 25X15X35 CM; Reference weight: 35KG
Product name :
2KVA 208V To 440V Three Phase Transformer
Place of origin :
Shanghai, PRC
Rated capacity :
2KVA Or Customized
Product model :
SBK-2KVA or customized
Rated input voltage :
Three Phase 208V Or Customized
Rated output voltage :
Three Phase 440V 480V Or Customized
Output precision :
±2%
Working temperature :
－15℃~＋45℃
Insulation resistance :
≥5MΩ
Description

2KVA 208V To 440V Three Phase Transformer | SHLEIPUSI CE Certified Dry Type Industrial Transformer Manufacturer

Contact Information
Tel/WeChat: +86 15926315252 | Email: daniel@shlepus.com | WhatsApp: +86 18979230829

Product Introduction

Our 2KVA 208V To 440V Three Phase Transformer (SG/SBK Series) is a high-reliability dry-type power conversion solution, purpose-built for global industrial 50/60Hz electrical circuits under 1000V. This step-up transformer, optimized for 208V three-phase input to 440V (or 480V customizable) output, is the ideal power solution for CNC machines, factory power distribution, photovoltaic systems, EV charging stations, laser cutting machines, air compressors, precision equipment, generators, and welding machines. Available in cabinet-enclosed SG type and open-frame SBK configuration, it delivers stable, low-loss performance for continuous full-capacity operation under non-overloaded conditions. With ISO9001, CE and UL certifications, it meets global industrial safety standards, with full parameter and configuration customization available to fit diverse project requirements worldwide.

Key Features & Competitive Advantages

  • Energy-Saving & Efficient Performance: Built with high-permeability low-noise silicon steel core and high-purity winding material, it delivers strong electrical conductivity, low energy loss, low temperature rise, and quiet operation, enabling continuous full-capacity running while cutting long-term industrial power costs.
  • Superior Safety & Insulation: Equipped with high-insulation reliable terminals and premium nylon insulation frame, it withstands 3500V voltage tests, with Class H insulation for exceptional heat resistance, safe and durable construction, and zero electrical hazard risks in harsh industrial environments.
  • Stable & Precise Output: It guarantees ±2% output precision with no additional waveform distortion, ensuring stable power supply for sensitive precision equipment, and adapts seamlessly to various inductive and resistive loads across industrial scenarios.
  • User-Friendly Customizable Design: Features convenient wire connection, optional cabinet enclosure for personnel and equipment protection, and fully customizable voltage, capacity, and enclosure, with dry-type air cooling for reliable, low-maintenance operation.

Why Choose SHLEIPUSI

As a professional global industrial transformer manufacturer, we deliver end-to-end solutions for electrical engineers, factory operators, and industrial clients worldwide. We offer full OEM/ODM services, including custom parameters, appearance, LOGO branding, and packaging, with free professional product photography for bulk orders. Every unit undergoes strict pre-shipment quality inspection to ensure zero defects, with a standard 2-year warranty and free component replacement for quality issues. Our robust production capacity (10,000 pcs/month for small-power transformers, 2,000 pcs/month for high-power models) ensures stable bulk supply, with a minimum order quantity of just 1 set to support trial orders. We provide flexible global shipping via sea, air, express, and railway, supporting all mainstream international trade terms, plus lifetime free technical guidance and on-site installation by our professional engineering team.

Technical Specifications

Parameter Standard Specification Customization Support
Product Name 2KVA 208V To 440V Three Phase Transformer Full Custom Available
Model / Rated Capacity SBK-2KVA / 2KVA 500VA-2000KVA Full Range
Rated Voltage 3 Phase 208V Input / 440V Output 220V/380V/480V Customizable
Working Frequency 50/60Hz Customizable
Output Precision ±2% -
Insulation Class H -
Cooling Method Dry Type Air Cooling Customizable
Working Temperature -15℃ ~ +45℃ -
Certifications ISO9001, CE, UL -
Warranty 2 Years -

2KVA 3 Phase Voltage Transformer 208V To 440V 480V Step Up Transformer

2KVA 3 Phase Voltage Transformer 208V To 440V 480V Step Up Transformer

Frequently Asked Questions

  1. What is the lead time for the 2KVA 208V to 440V three phase transformer? Normally 3-7 working days for standard products, 10 days for small batches, 20-30 days for bulk and customized orders.
  2. How do you control the quality of your three phase transformers? We implement full-process professional quality inspection from raw material incoming to manufacturing; only qualified units are shipped.
  3. What are your accepted payment terms? 30% deposit for standard products, 50% advance for customized products, with the balance settled before shipment.
  4. Do you provide technical support for transformer installation? Yes, our professional team offers video guidance, lifetime free telephone support, and on-site installation by our engineers.
  5. What packaging do you use for the transformers? Reinforced wooden cases for large units, high-strength cartons for small products, with custom packaging available upon request.
  6. Do you accept OEM and ODM services? Yes, we support full OEM/ODM, including custom LOGO, brand name, parameters, and enclosure design for qualified bulk orders.
  7. What is your main global market? Our transformers are sold worldwide, covering Central Asia, East Asia, South Asia, Africa, South America, and North America.
  8. What is your monthly production capacity for industrial transformers? 10,000 pcs/month for small-power models, 2,000 pcs/month for larger-power industrial transformers.
  9. What is the minimum order quantity for this transformer? The MOQ for our 2KVA 208V to 440V three phase transformer is 1 set, fully supporting sample and trial orders.
